Mar 212016


In this step by step guide I will take you through all steps required to configure a highly available, 2-node MySQL cluster (plus witness server) in Amazon’s Elastic Compute Cloud (Amazon EC2).  The guide includes both screenshots, shell commands and code snippets as appropriate.  I assume that you are somewhat familiar with Amazon EC2 and already have an account.  If not, you can sign up today.  I’m also going to assume that you have basic linux system administration skills as well as understand basic failover clustering concepts like Virtual IPs, etc.

Disclaimer: The cloud is rapidly moving target. As such, features/screens/buttons are bound to change over time so your experience may vary slightly from what you’ll see below.  While this guide will show you how to make a MySQL database highly available, you could certainly adapt this information and process to protect other applications or databases, like SAP, Oracle, PostgreSQL, NFS file servers, and more.

These are the high level steps to create a highly available MySQL database within Amazon EC2:

  1. Create a Virtual Private Cloud (VPC)
  2. Create an Internet Gateway
  3. Create Subnets (Availability Zones)
  4. Configure Route Tables
  5. Configure Security Group
  6. Launch Instances
  7. Create Elastic IP
  8. Create Route Entry for the Virtual IP
  9. Disable Source/Dest Checking for ENI’s
  10. Obtain Access Key ID and Secret Access Key
  11. Linux OS Configuration
  12. Install EC2 API Tools
  13. Install and Configure MySQL
  14. Install and Configure Cluster
  15. Test Cluster Connectivity

Overview

This article will describe how to create a cluster within a single Amazon EC2 region.  The cluster nodes (node1, node2 and the witness server) will reside different Availability Zones for maximum availability.  This also means that the nodes will reside in different subnets.

The configuration will look like this:

AWS-Linux-MySQL

The following IP addresses will be used:

  • node1: 10.0.0.4
  • node2: 10.0.1.4
  • witness: 10.0.2.4
  • virtual/”floating” IP: 10.1.0.10

Create a Virtual Private Cloud (VPC)

First, create a Virtual Private Cloud (aka VPC). A VPC is an isolated network within the Amazon cloud that is dedicated to you.  You have full control over things like IP address blocks and subnets, route tables, security groups (i.e. firewalls), and more.  You will be launching your Azure Iaas virtual machines (VMs) into your Virtual Network.

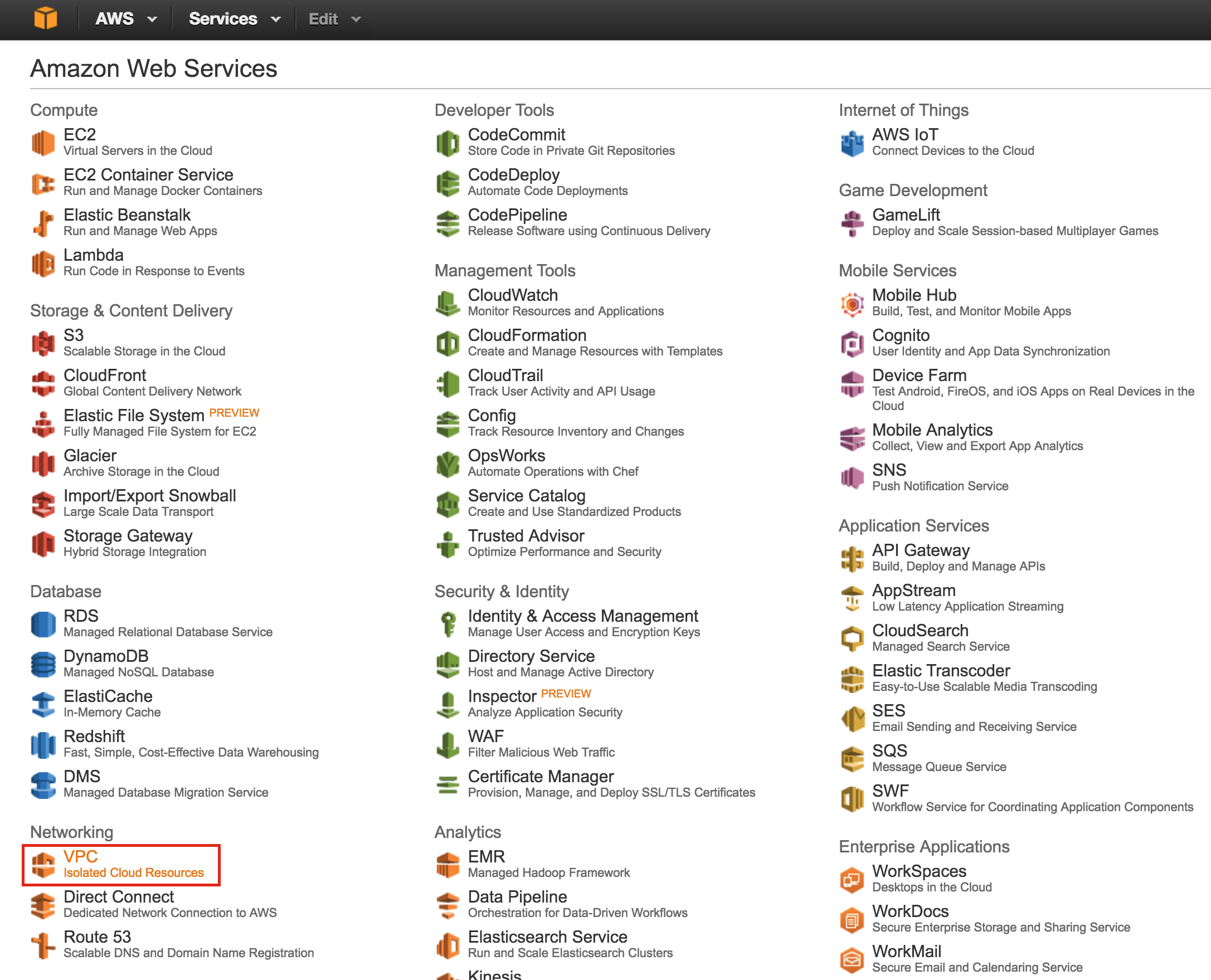

From the main AWS dashboard, select “VPC”

vpc1

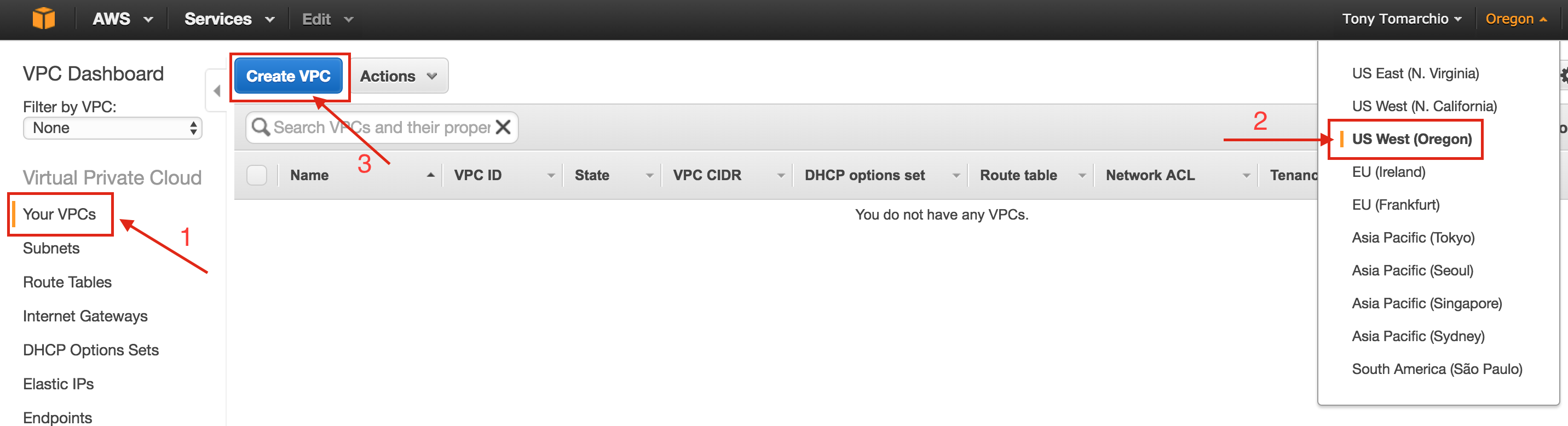

Under “Your VPCs”, make sure you have selected the proper region at the top right of the screen.  In this guide the “US West (Oregon)” region will be used, because it is a region that has 3 Availability Zones.   For more information on Regions and Availability Zones, click here

vpc2

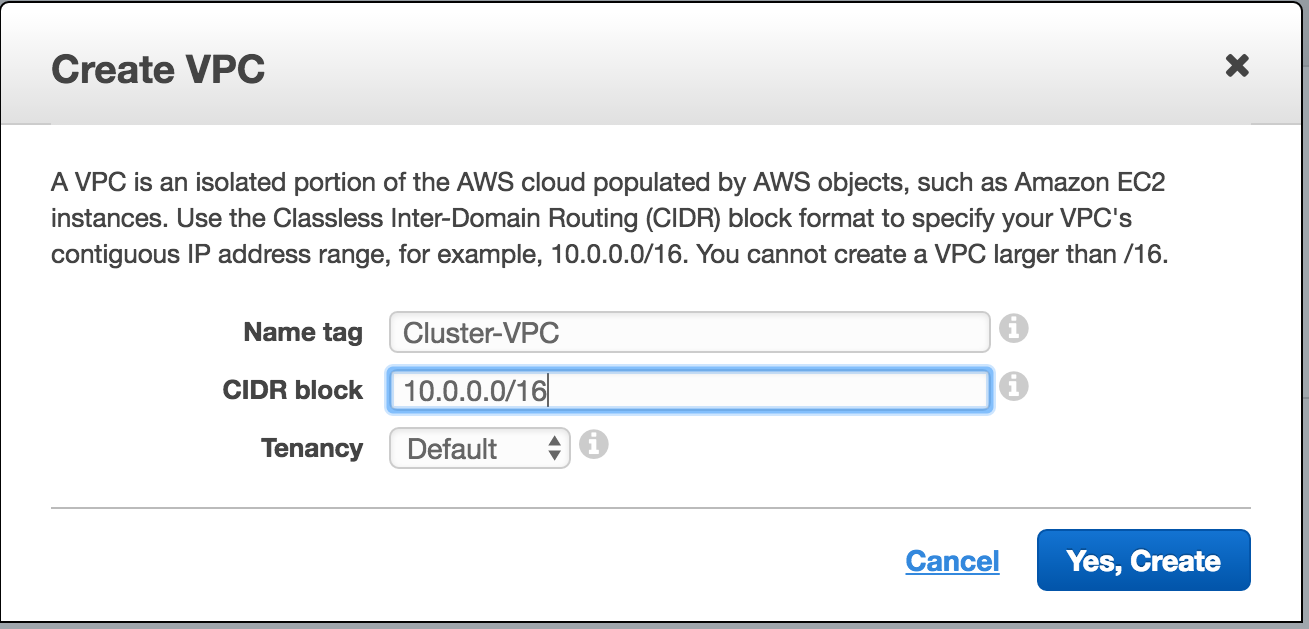

Give the VPC a name, and specify the IP block you wish to use.  10.0.0.0/16 will be used in this guide:

vpc3

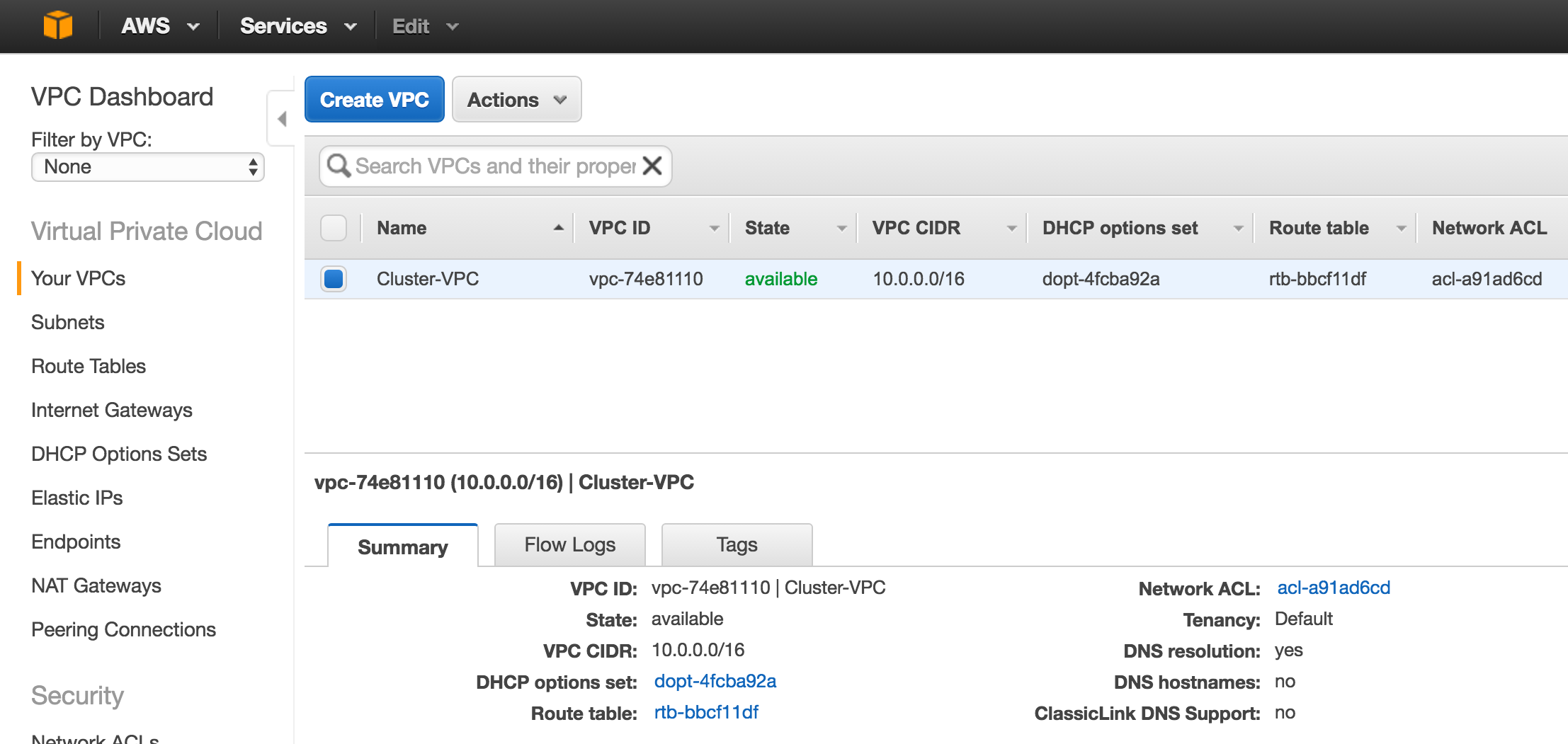

You should now see the newly created VPC on the “Your VPCs” screen:

vpc4



Create an Internet Gateway

Next, create an Internet Gateway.  This is required if you want your Instances (VMs) to be able to communicate with the internet.

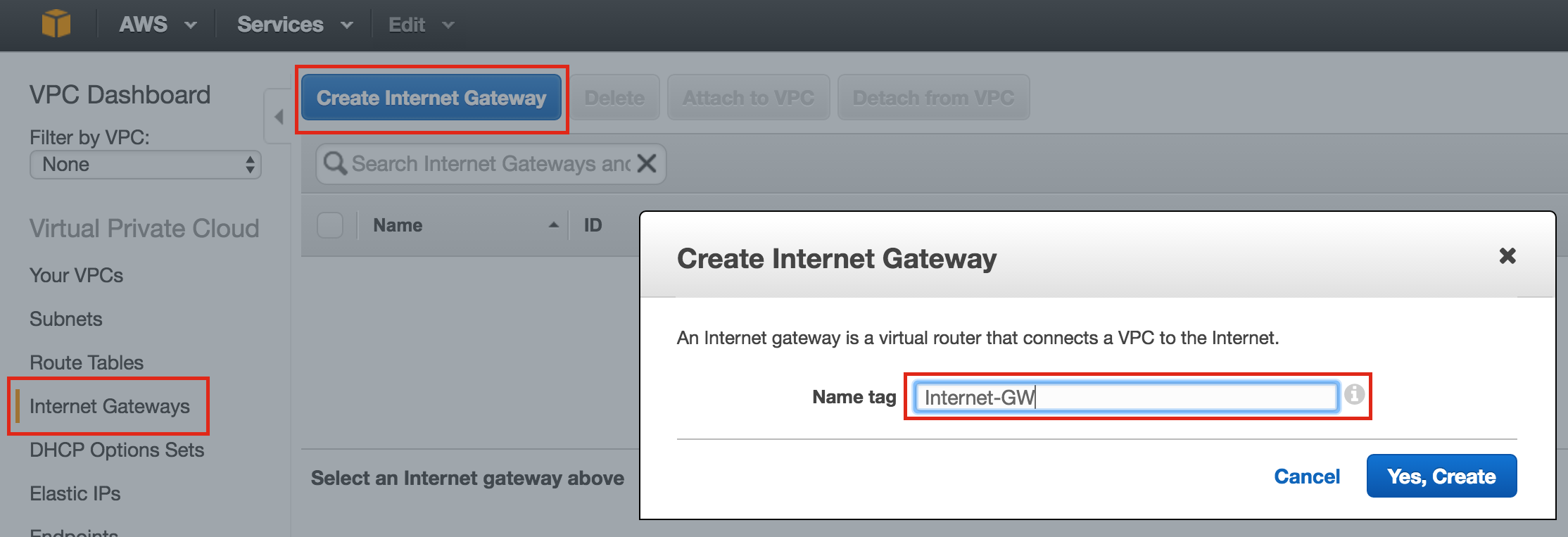

On the left menu, select Internet Gateways and click the Create Internet Gateway button.  Give it a name, and create:



internet-gateway1

Next, attach the internet gateway to your VPC:

internet-gateway2

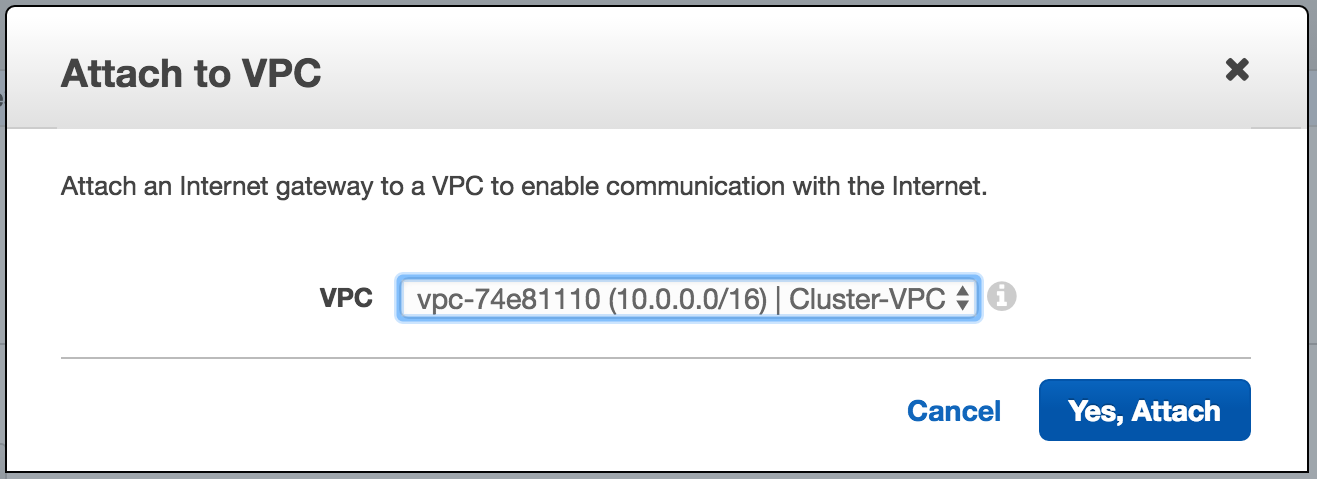

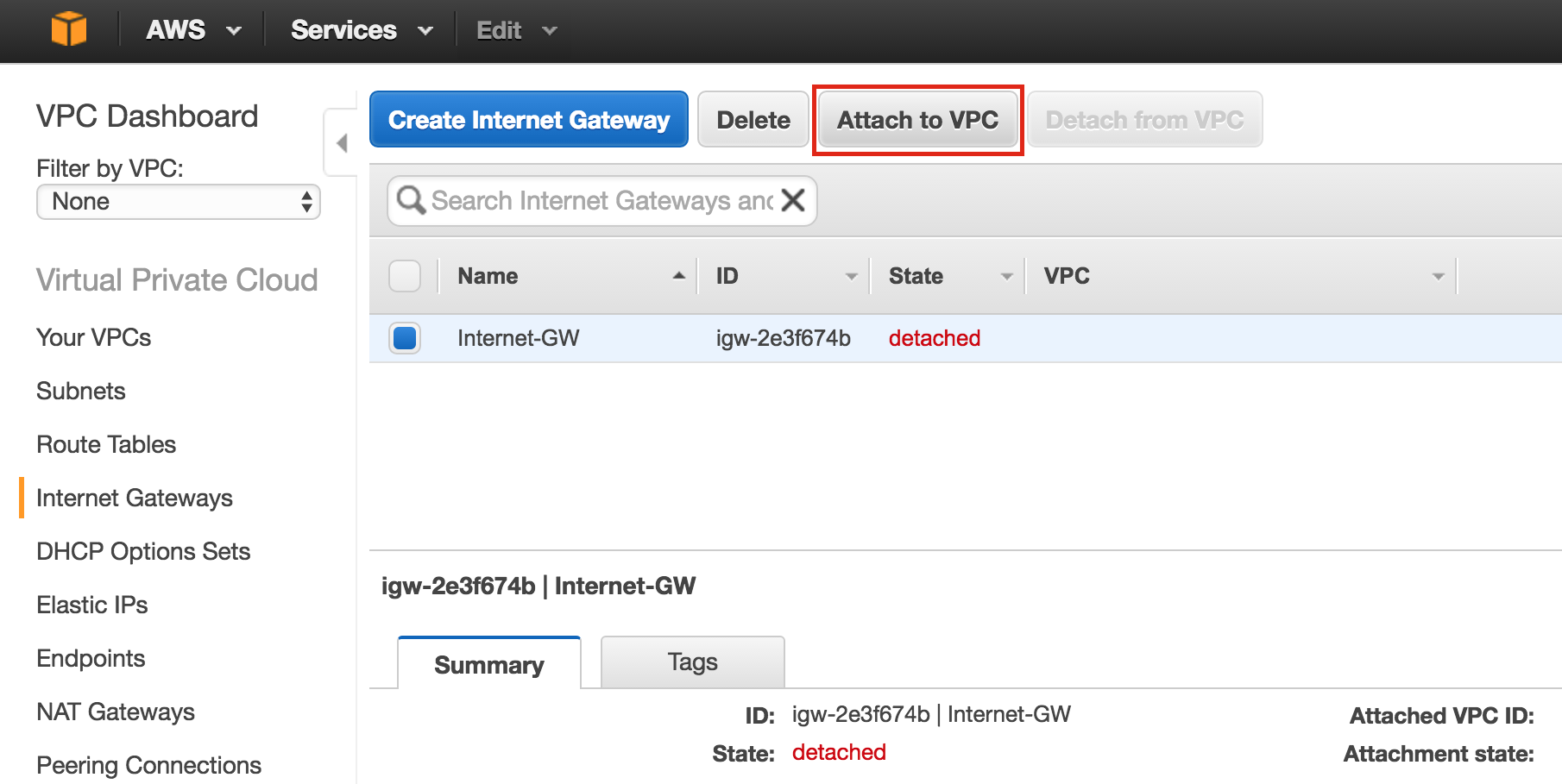

Select your VPC, and click Attach:

internet-gateway3

Create Subnets (Availability Zones)

Next, create 3 subnets.  Each subnet will reside in it’s own Availability Zone.  The 3 Instances (VMs: node1, node2, witness) will be launched into separate subnets (and therefore Availability Zones) so that the failure of an Availability Zone won’t take out multiple nodes of the cluster.

The US West (Oregon) region, aka us-west-2, has 3 availability zones (us-west-2a, us-west-2b, us-west-2c).  Create 3 subnets, one in each of the 3 availability zones.

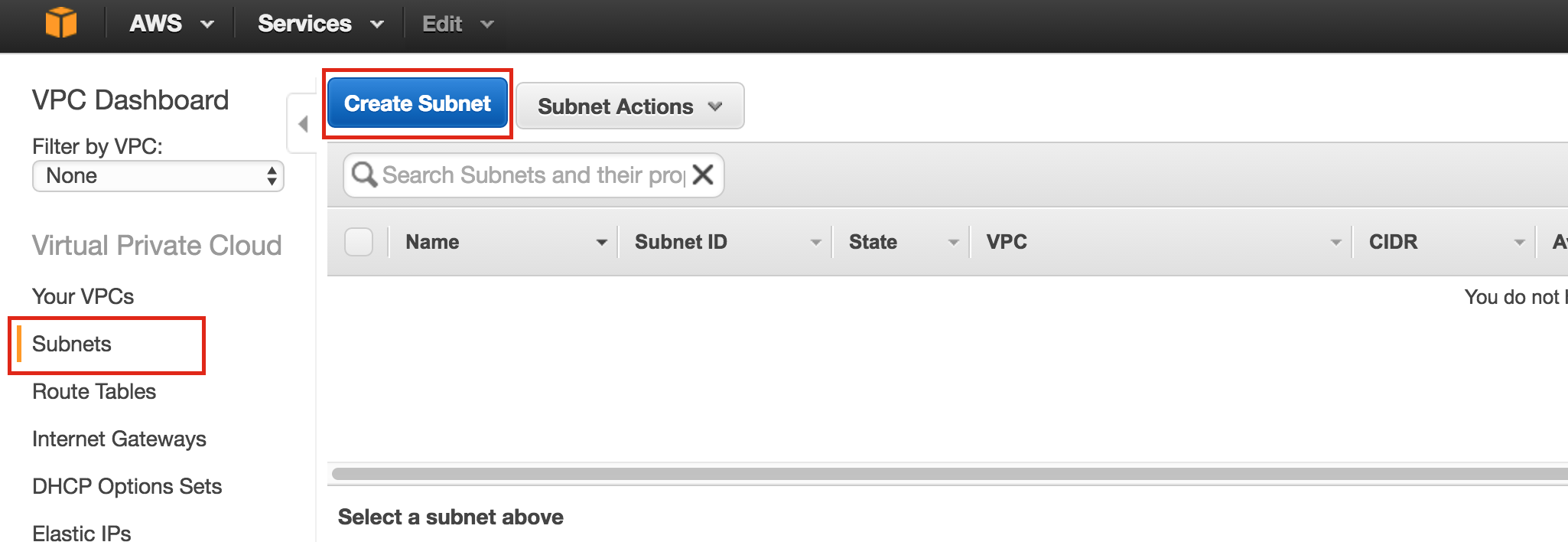

Under VPC Dashboard, navigate to Subnets, and then Create Subnet:

subnets1

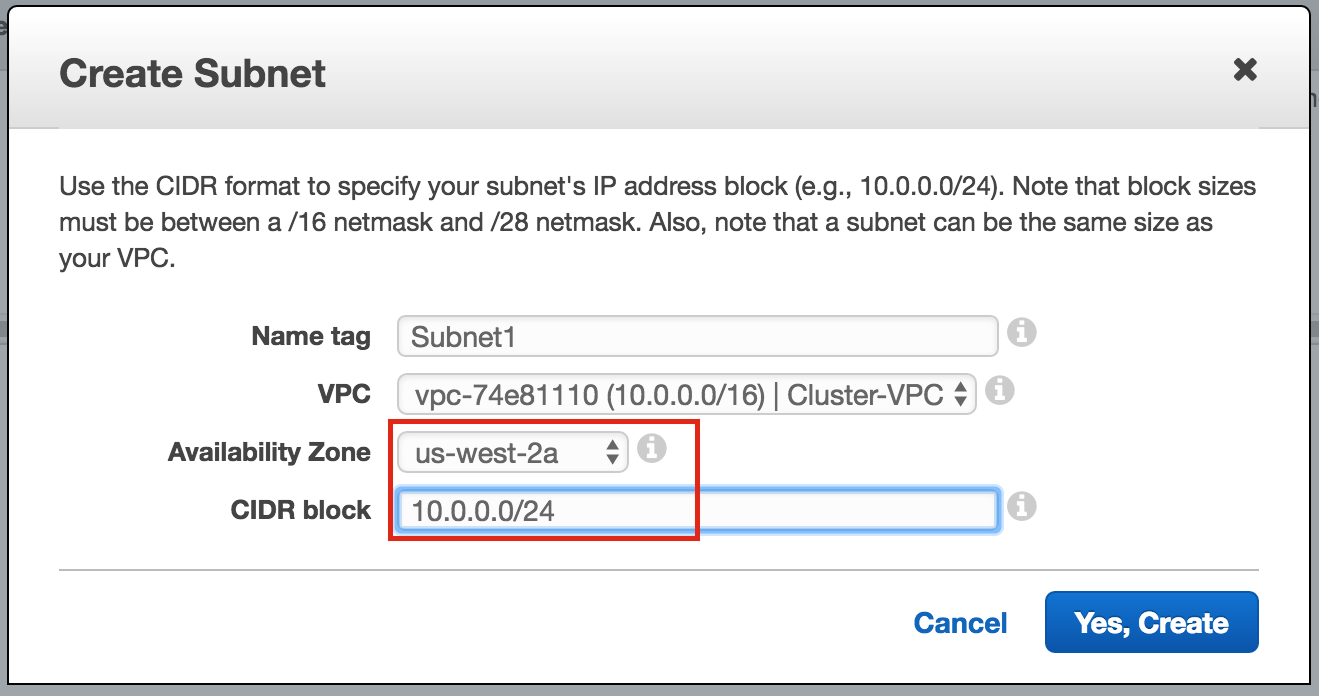

Give the first subnet a name (“Subnet1)”, select the availability zone us-west-2a, and define the network block (10.0.0.0/24):

subnets2

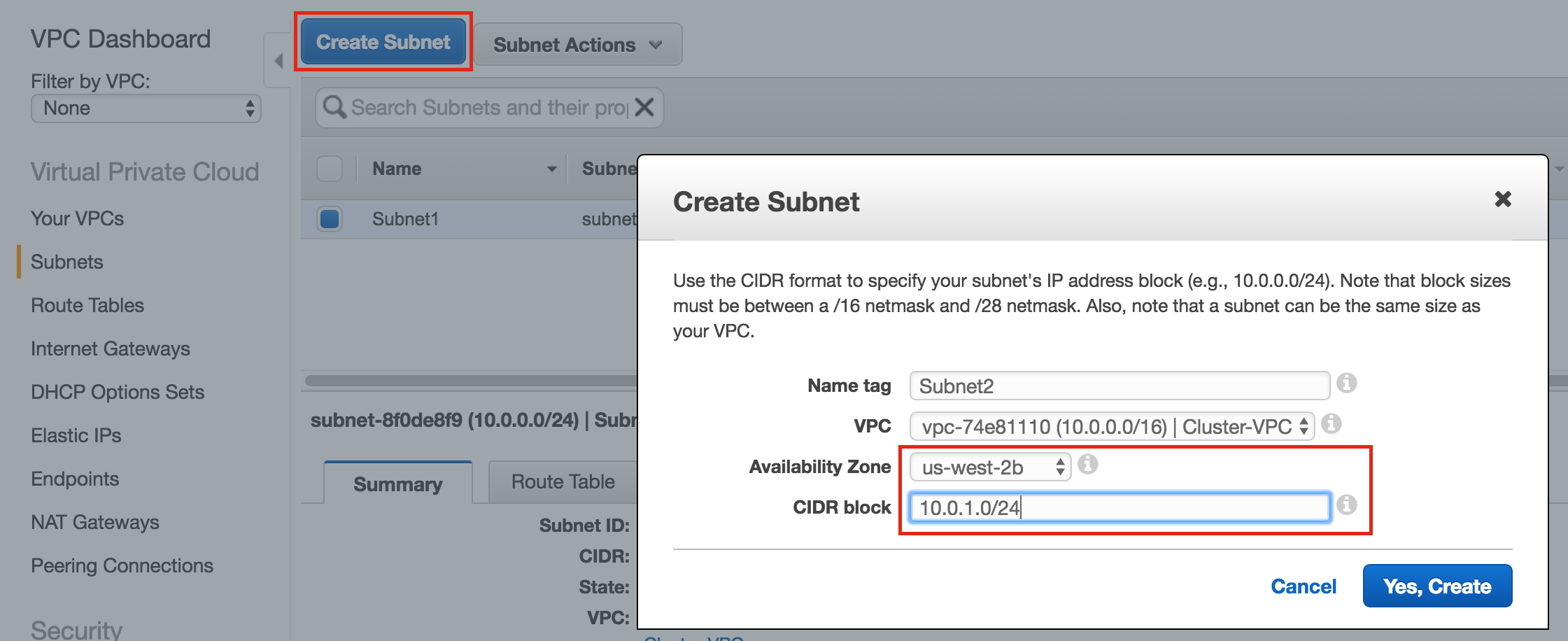

Repeat to create the second subnet availability zone us-west-2b:

subnets3

Repeat to create the third subnet in availability zone us-west-2c:

subnets4

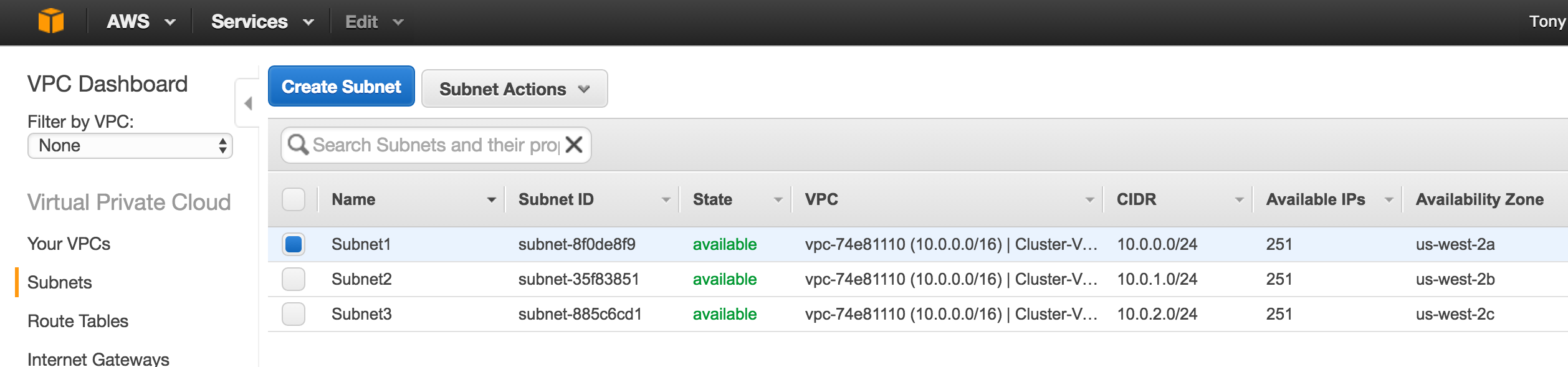

Once complete, verify that the 3 subnets have been created, each with a different CIDR block, and in separate Availability Zones, as seen below:

subnets5

Configure Route Tables

Update the VPC’s route table so that traffic to the outside world is send to the Internet Gateway created in a previous step.  From the VPC Dashboard, select Route Tables.   Go to the Routes tab, and by default only one route will exist which allows traffic only within the VPC.

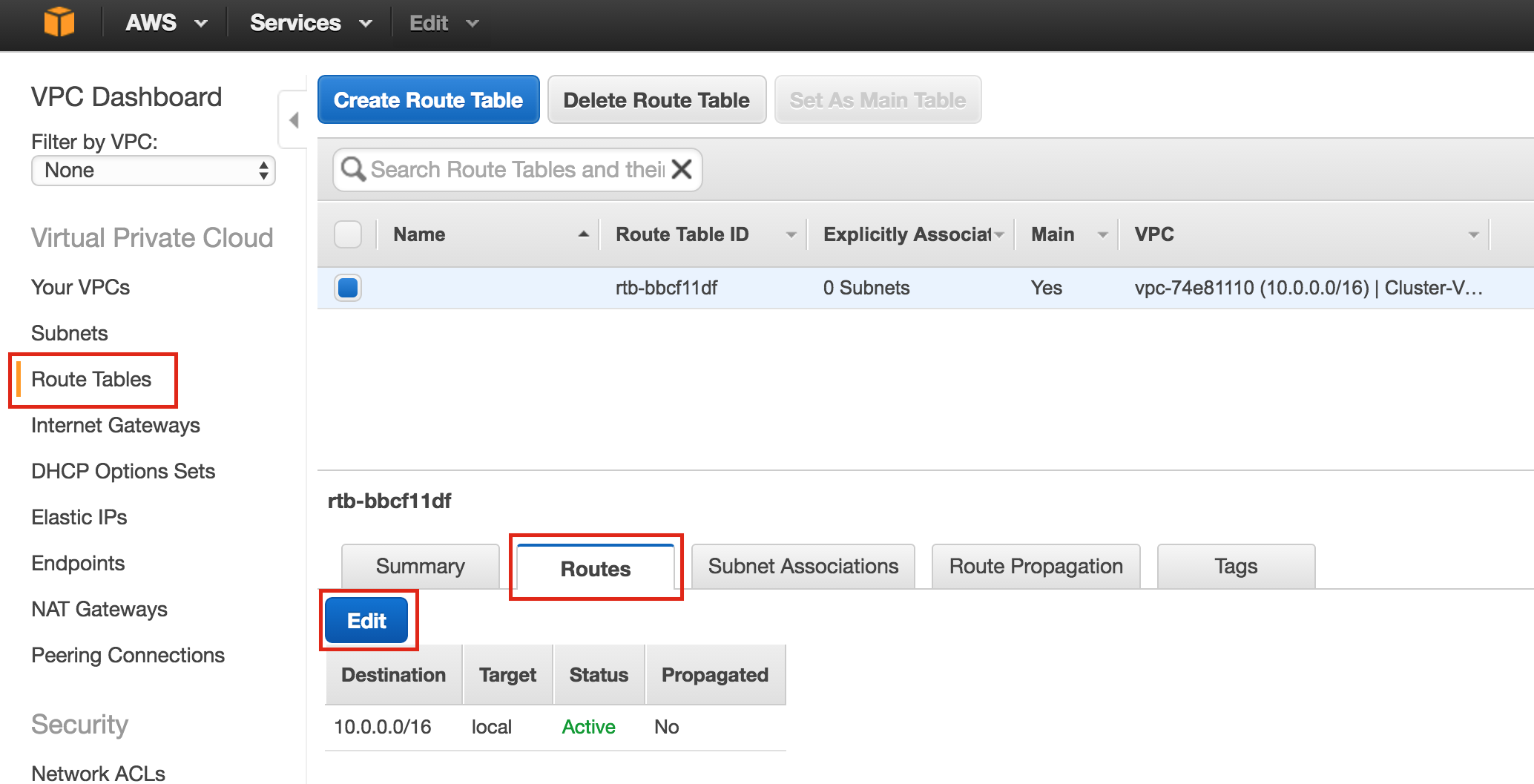

Click Edit:

route-table1

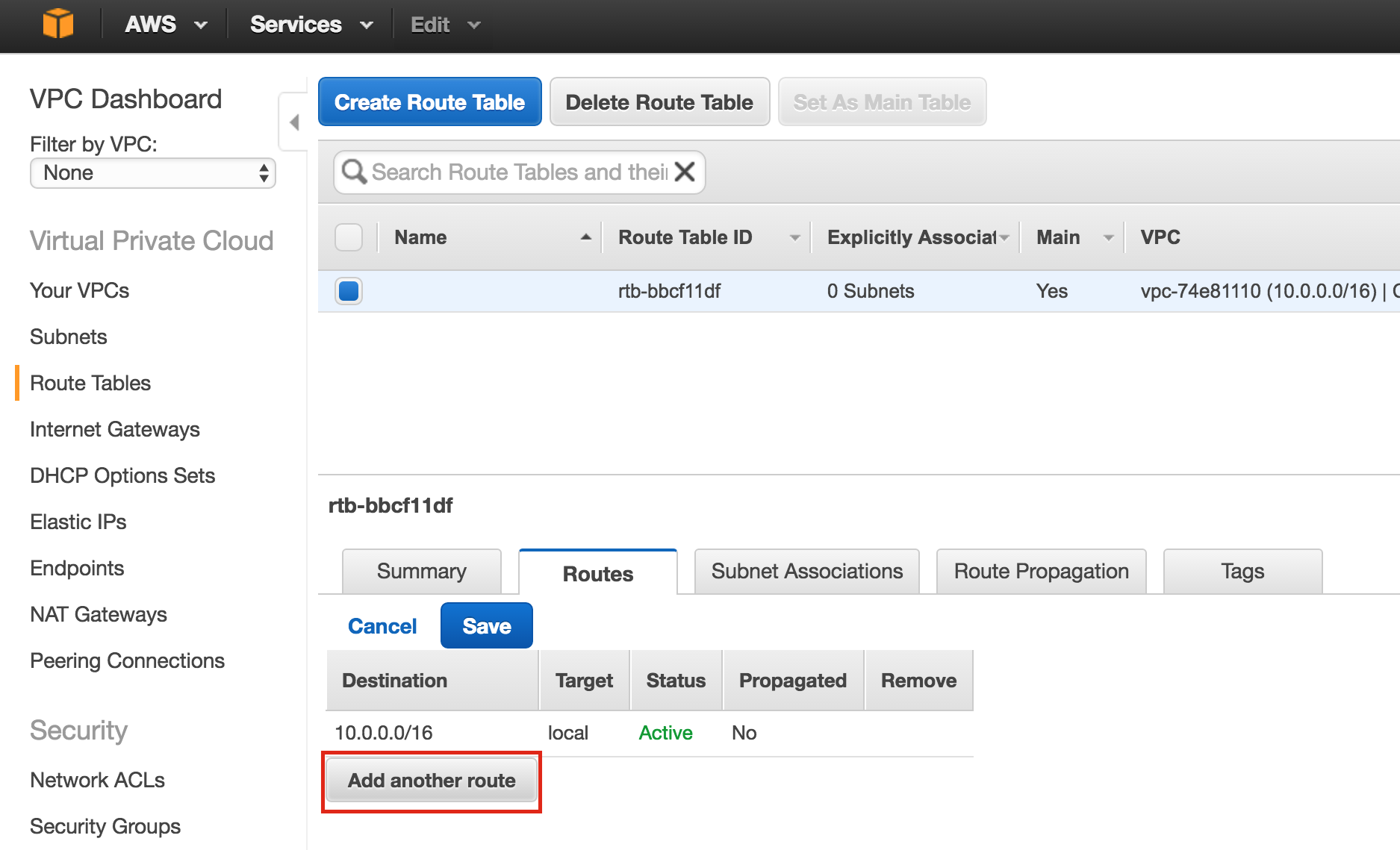

Add another route:

route-table2

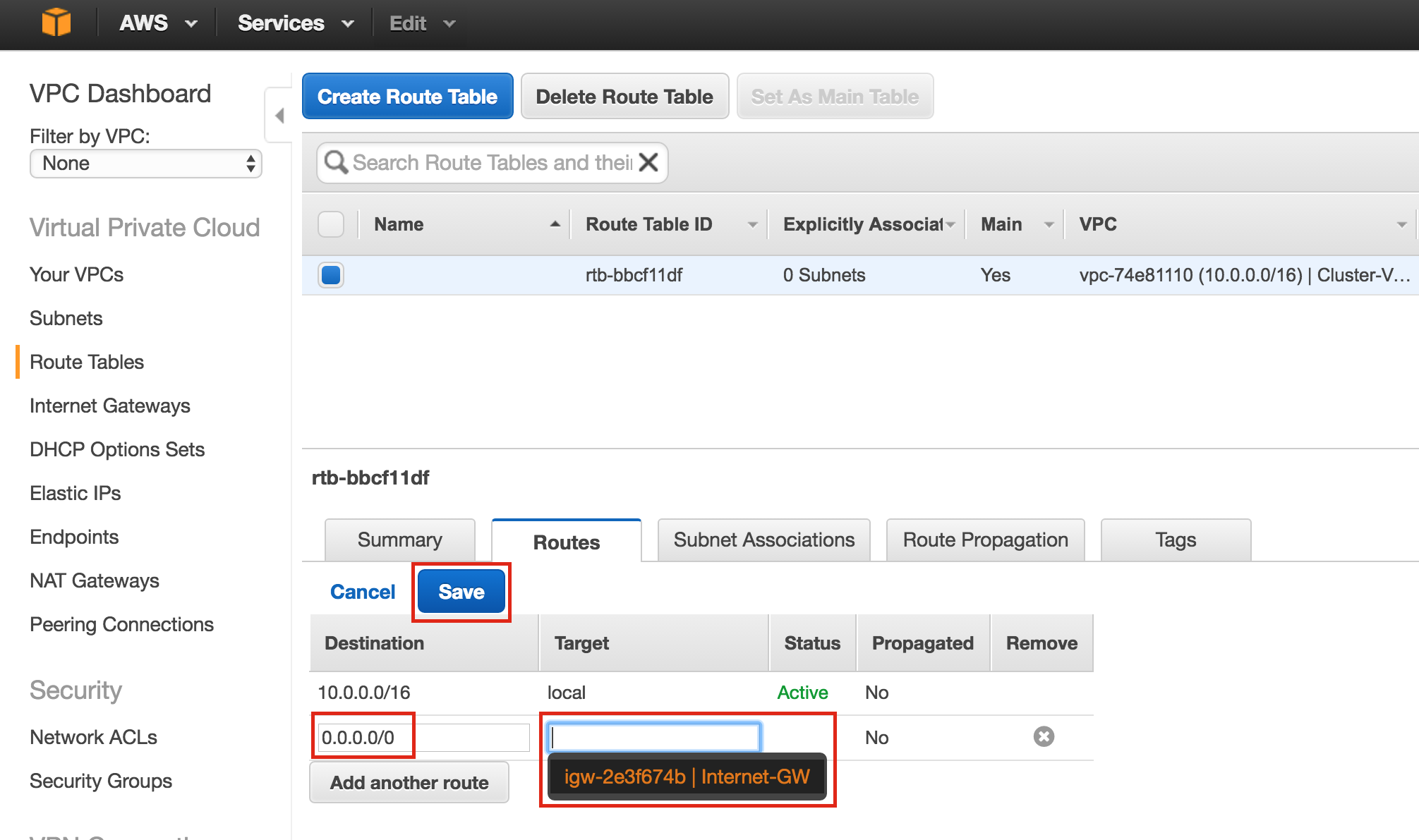

The Destination of the new route will be “0.0.0.0/0” (the internet) and for Target, select your Internet Gateway.  Then click Save:

route-table3

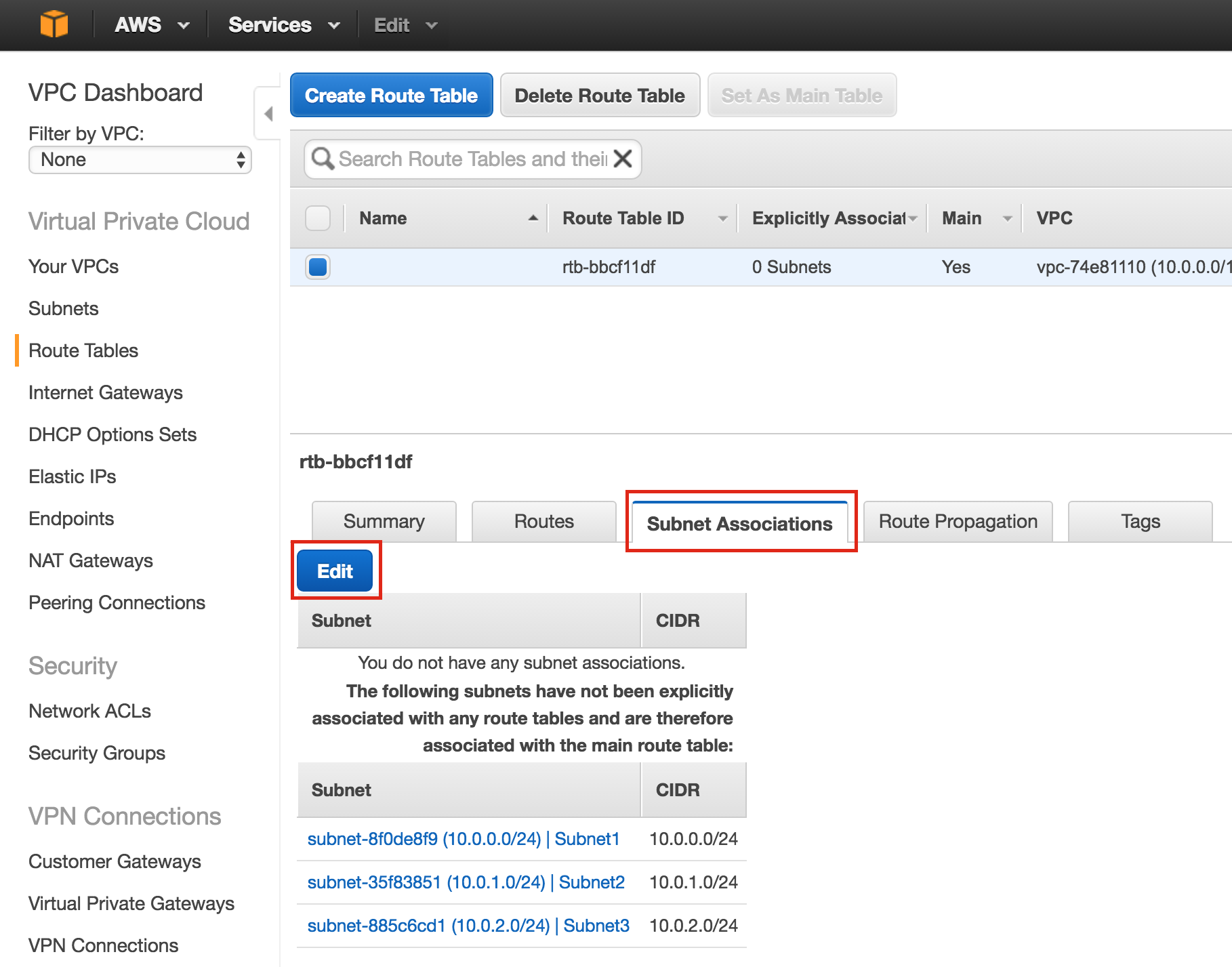

Next, associate the 3 subnets with the Route Table.   Click the “Subnet Associations” tab, and Edit:

route-table4

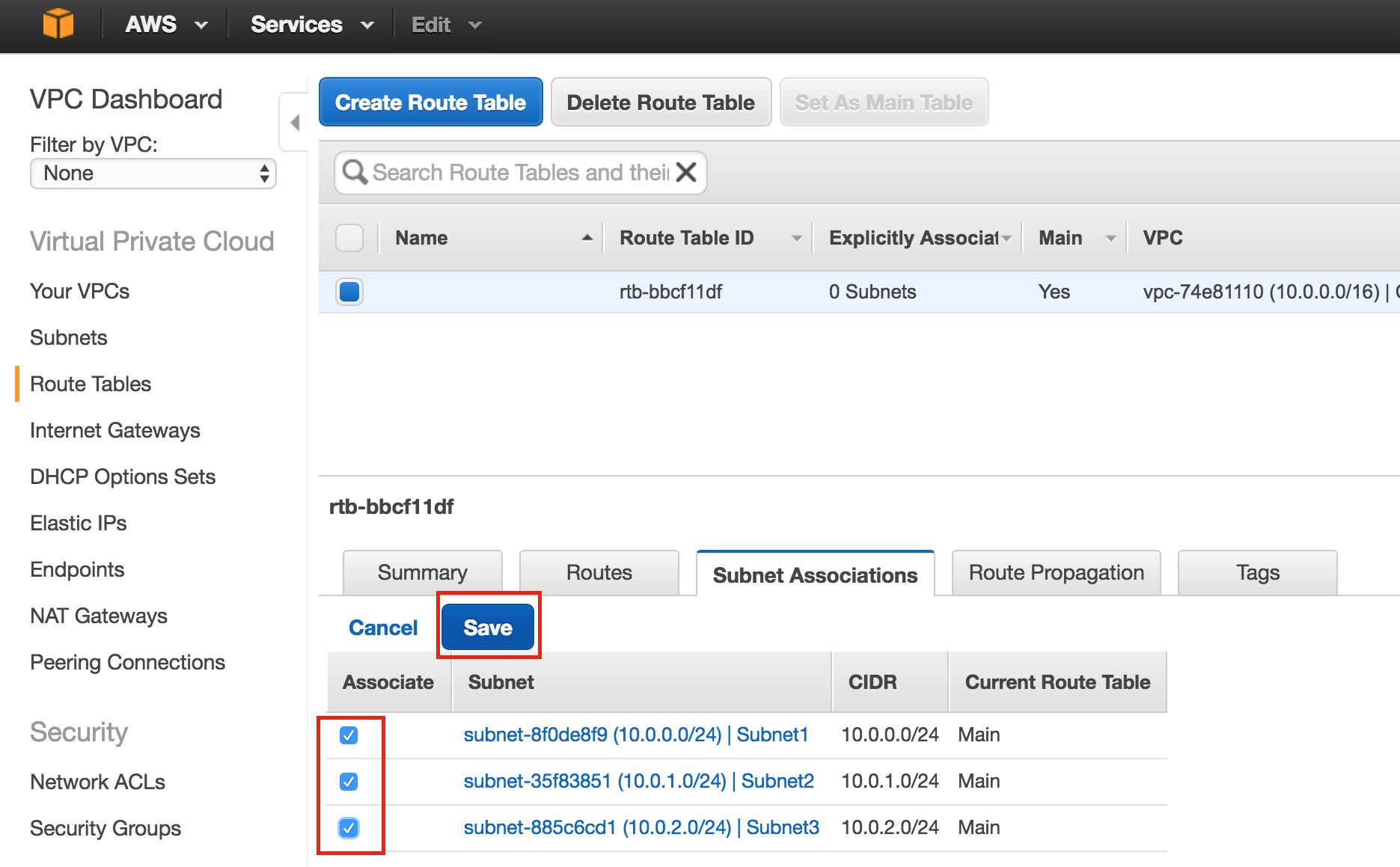

Check the boxes next to all 3 subnets, and Save:

route-table5

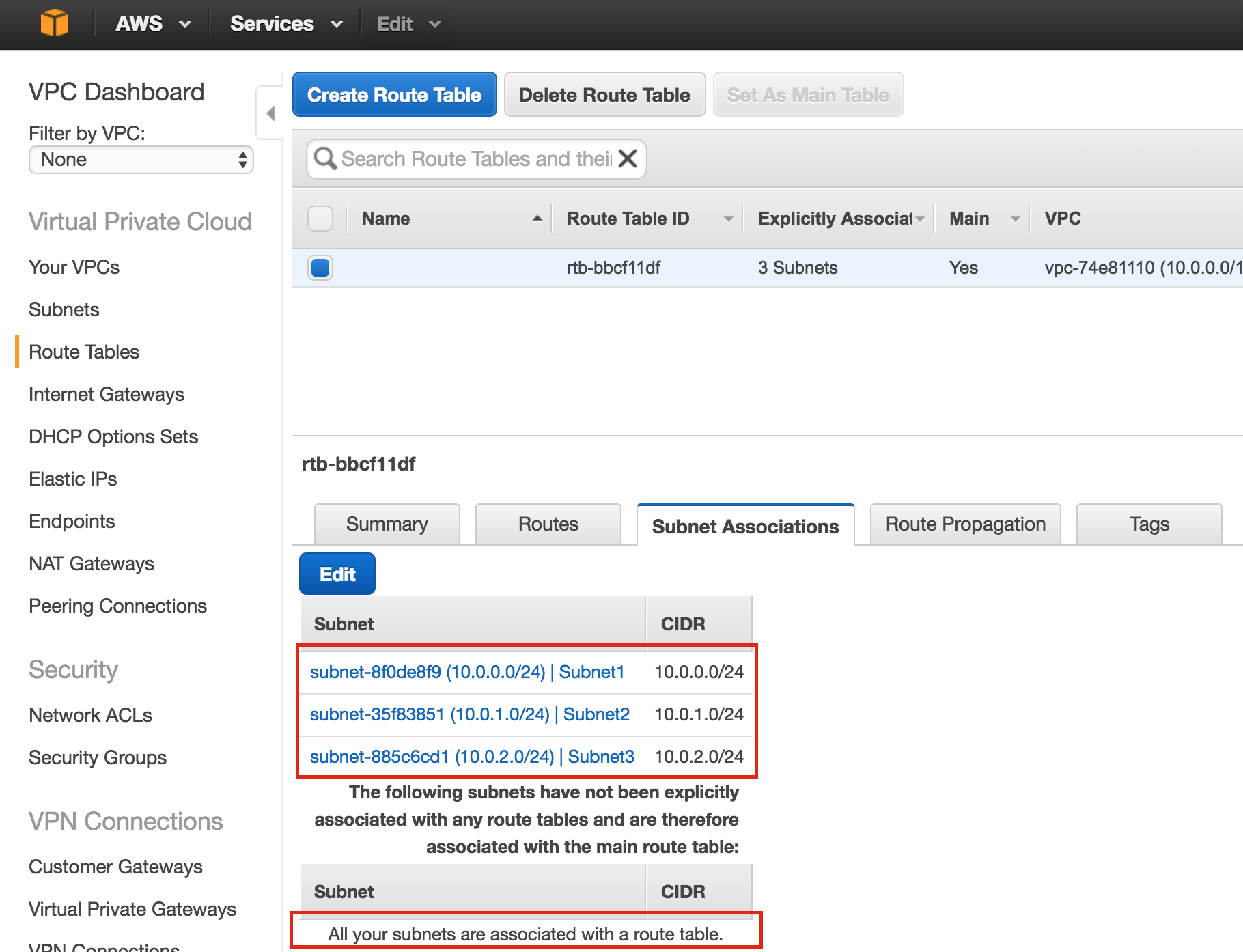

Verify that the 3 subnets are associated with the main route table:

route-table6



Later, we will come back and update the Route Table once more, defining a route that will allow traffic to communicate with the cluster’s Virtual IP, but this needs to be done AFTER the linux Instances (VMs) have been created.

Configure Security Group

Edit the Security Group (a virtual firewall) to allow incoming SSH and VNC traffic.  Both will later be used to configure the linux instances as well as installation/configuration of the cluster software.

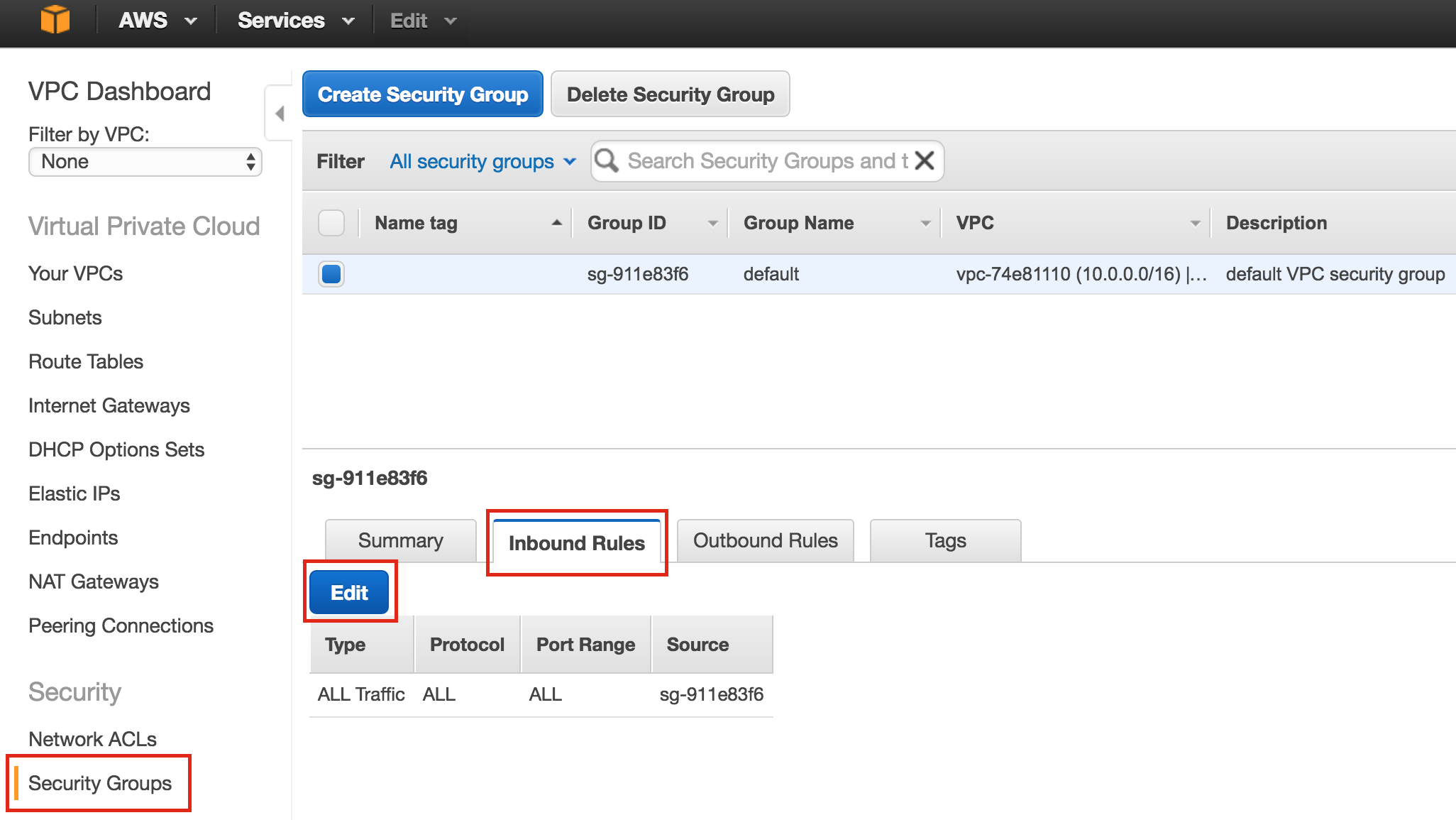

On the left menu, select “Security Groups” and then click the “Inbound Rules” tab.  Click Edit:

security-group1

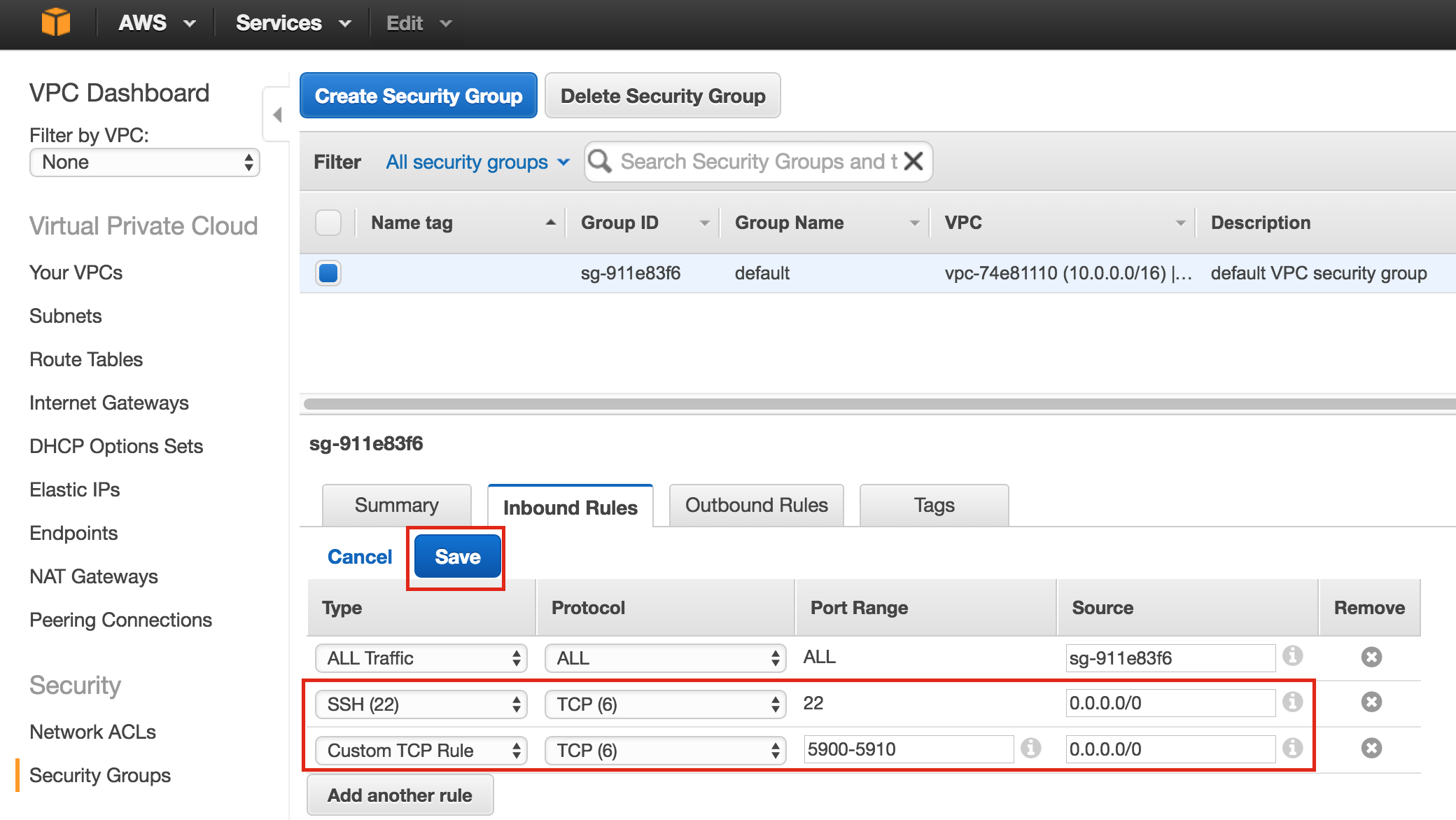

Add rules for both SSH (port 22) and VNC.  VNC generally uses ports in the 5900, depending on how you configure it, so for the purposes of this guide, we will open the 5900-5910 port range.  Configure accordingly based on your VNC setup:

security-group2



Launch Instances

We will be provisioning 3 Instances (Virtual Machines) in this guide.  The first two VMs (called “node1” and “node2”) will function as cluster nodes with the ability to bring the MySQL database and it’s associated resources online.  The 3rd VM will act as the cluster’s witness server for added protection against split-brain.

To ensure maximum availability, all 3 VMs will be deployed into different Availability Zones within a single region.  This means each instance will reside in a different subnet.

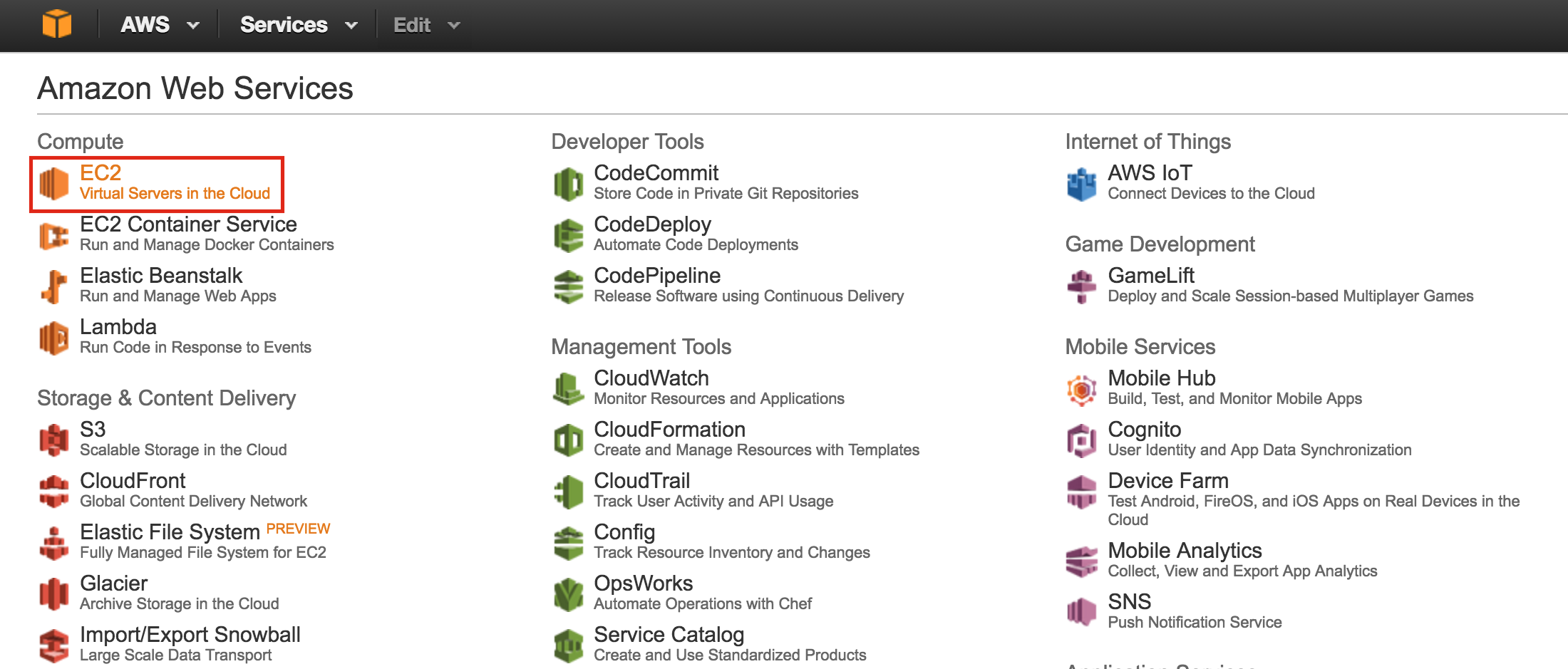

Go to the main AWS dashboard, and select EC2:

launch-instance1

Create “node1”

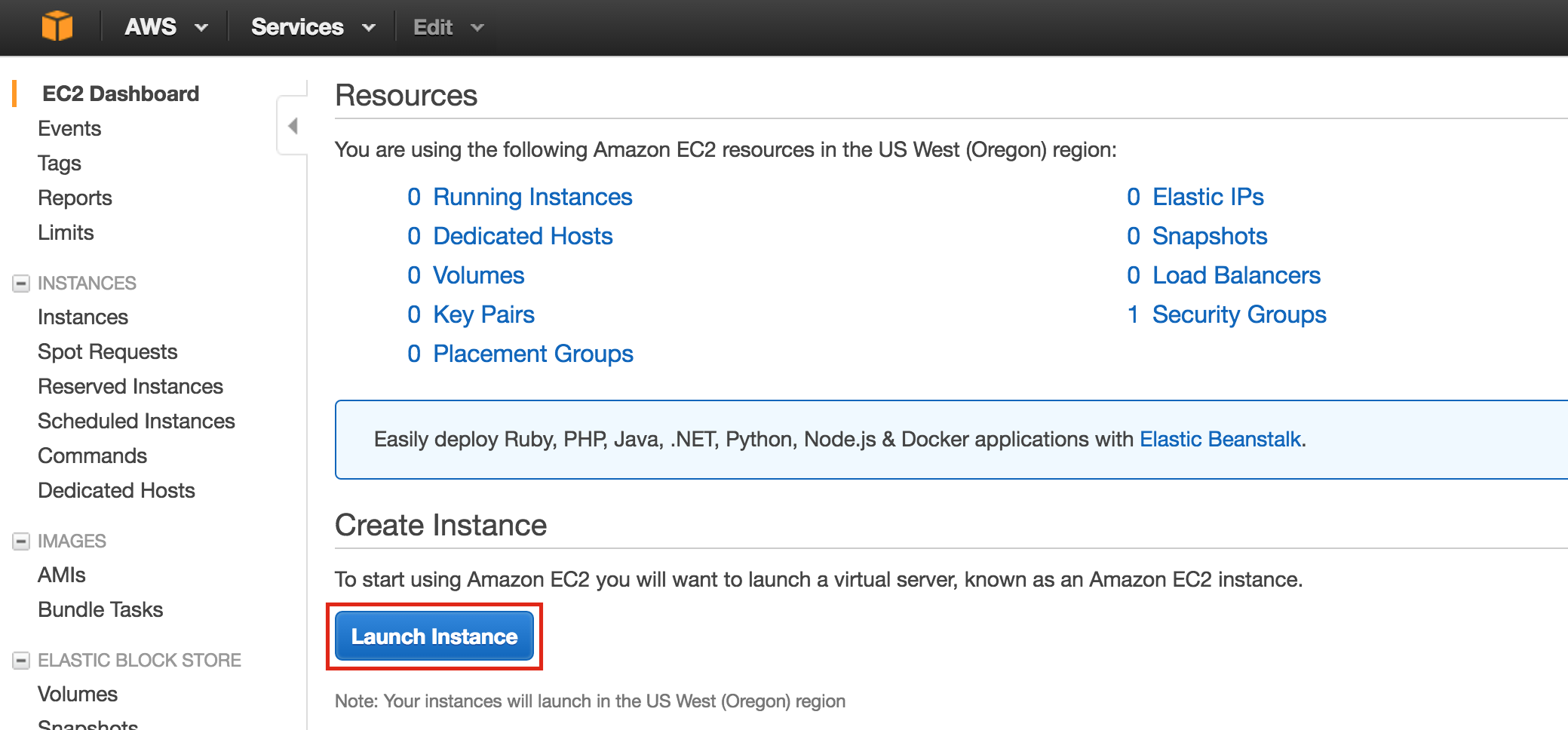

Create your first instance (“node1”).  Click Launch Instance:

launch-instance2

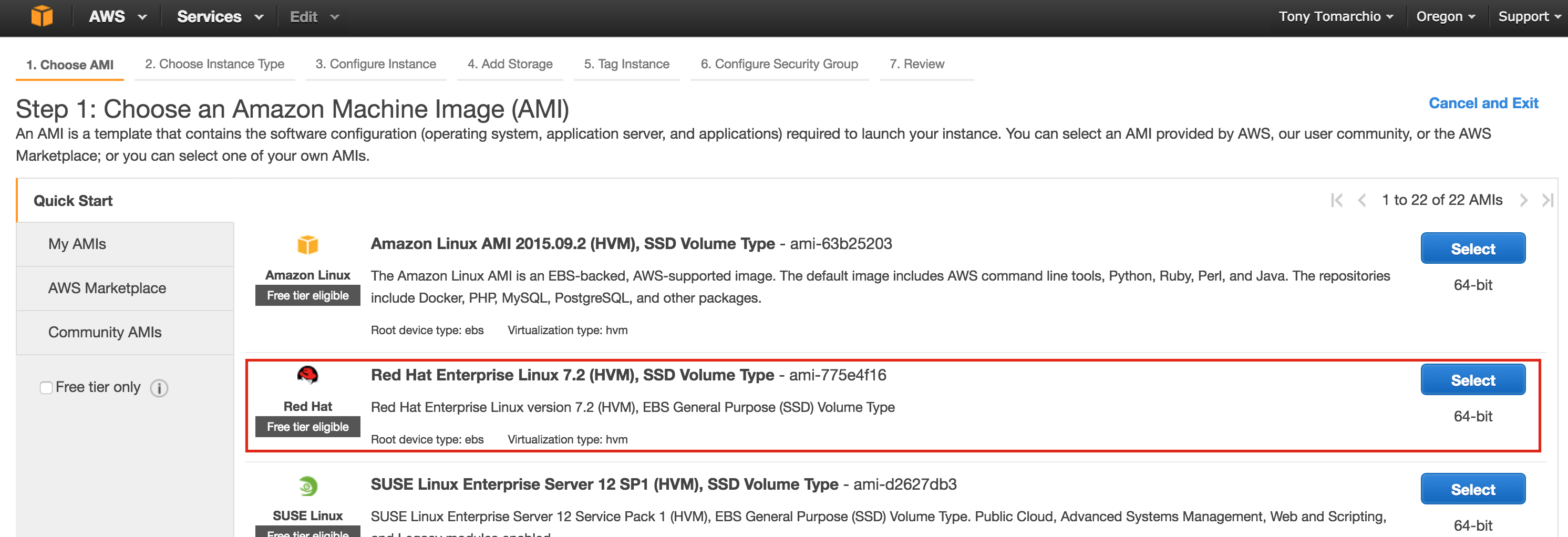

Select your linux distribution.  The cluster software used later supports RHEL, SLES, CentOS and Oracle Linux.  In this guide we will be using RHEL 7.X:

launch-instance3

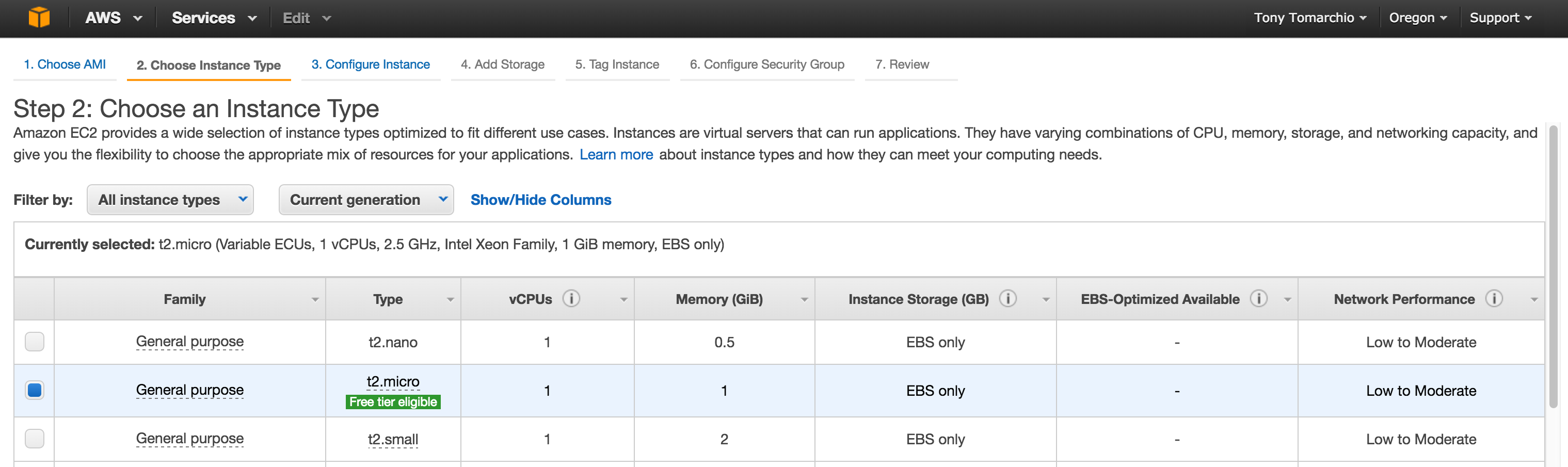

Size your instance accordingly.  For the purposes of this guide and to minimize cost, t2.micro size was used because it’s free tier eligible.  See here for more information on instance sizes and pricing.

launch-instance4

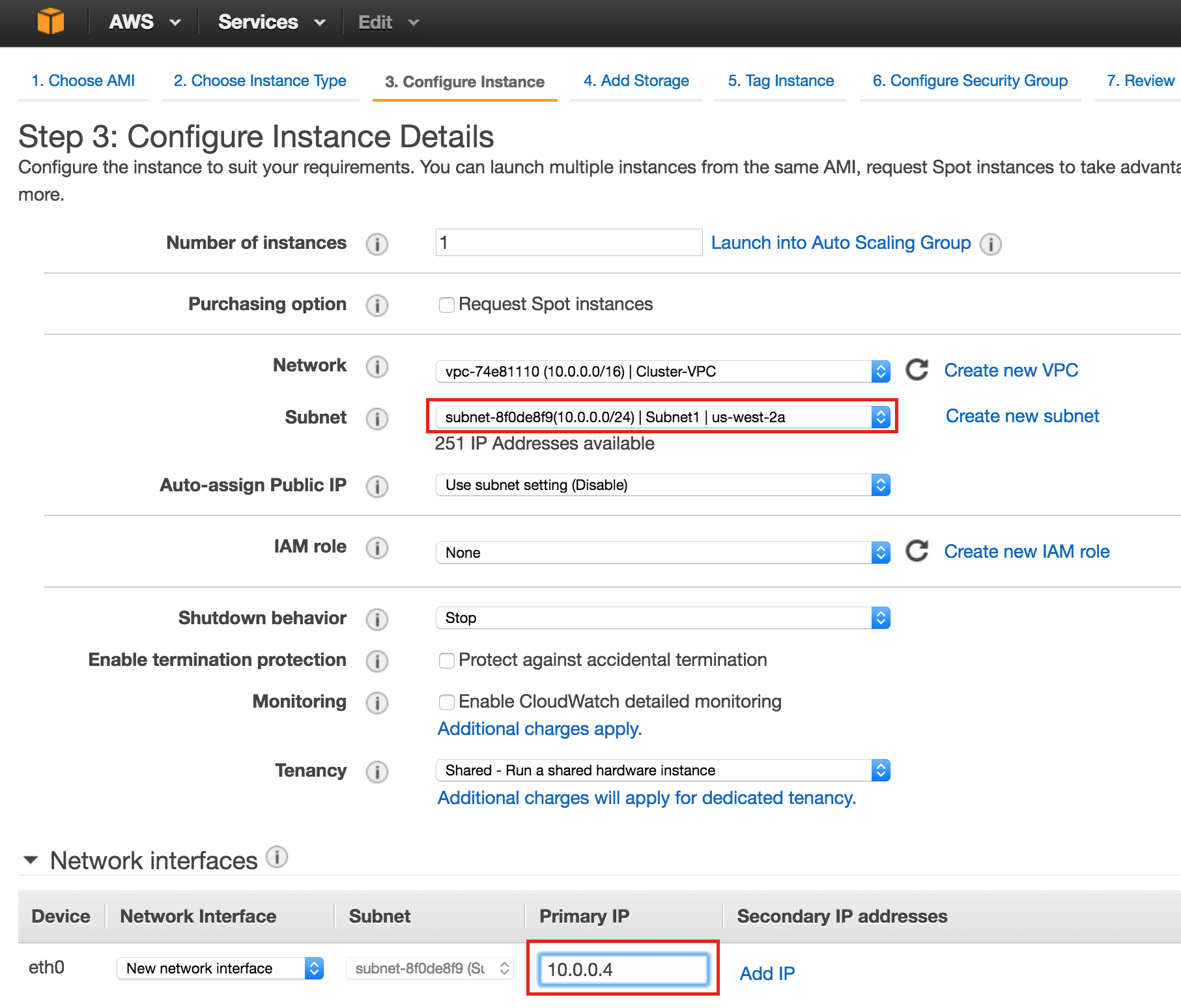

Next, configure instance details.  IMPORTANT: make sure to launch this first instance (VM) into “Subnet1“, and define an IP address valid for the subnet (10.0.0.0/24) – below 10.0.0.4 is selected because it’s the first free IP in the subnet.  NOTE: .1/.2/.3 in any given subnet in AWS is reserved and can’t be used.

launch-instance5

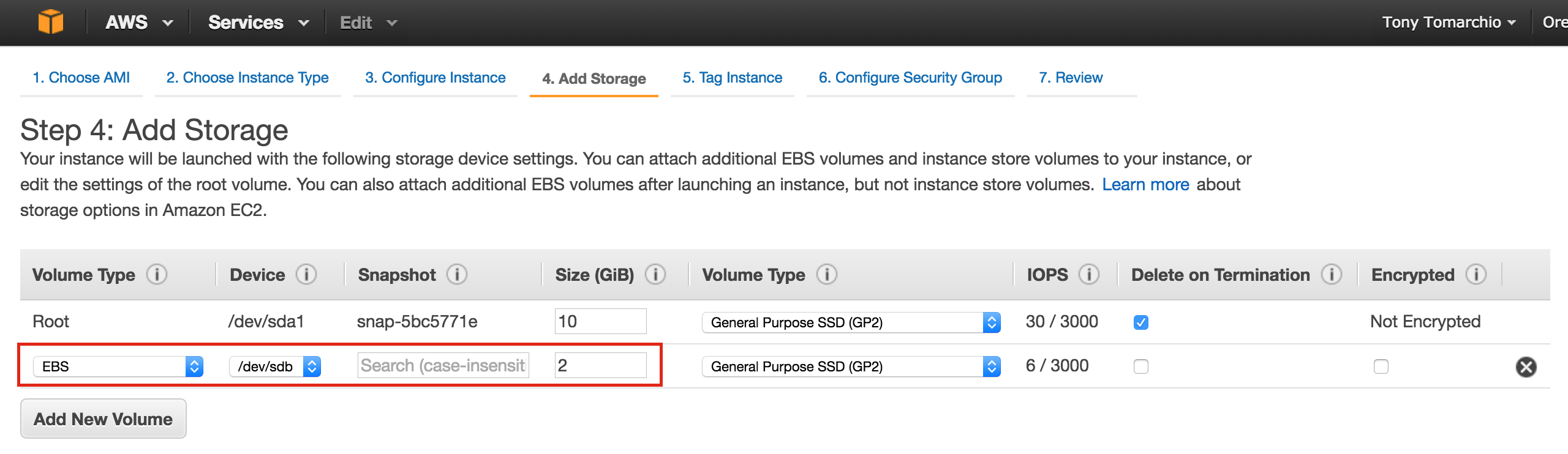

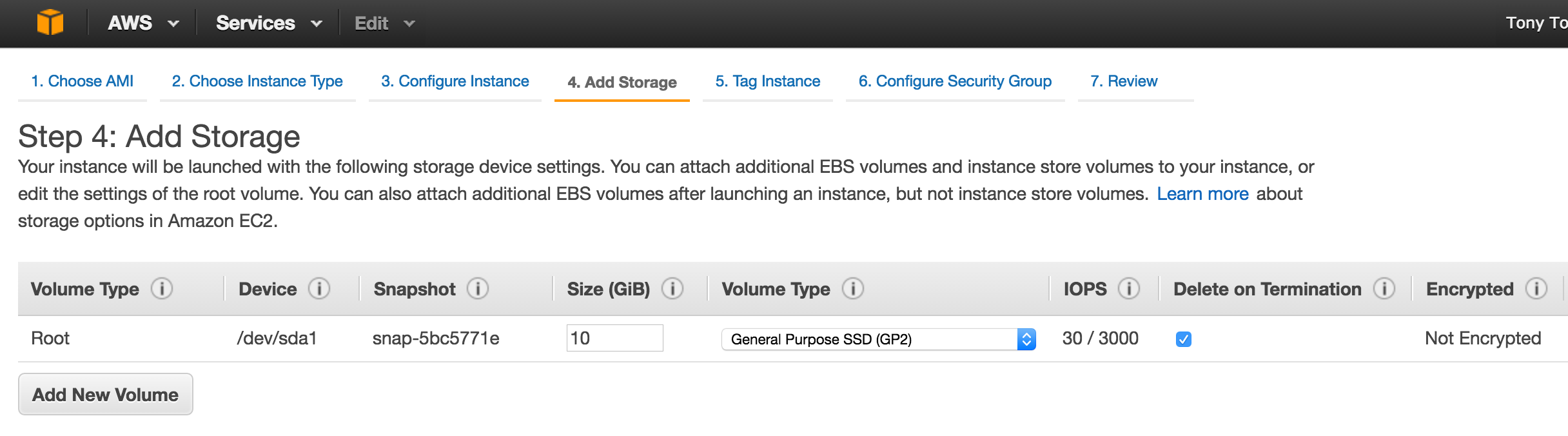

Next, add an extra disk to the cluster nodes (this will be done on both “node1” and “node2”).  This disk will store our MySQL databases and the later be replicated between nodes.

Note: You do NOT need to add an extra disk to the “witness” node.  Only “node1” and “node2”.

Add New Volume, and enter in the desired size:

launch-instance6

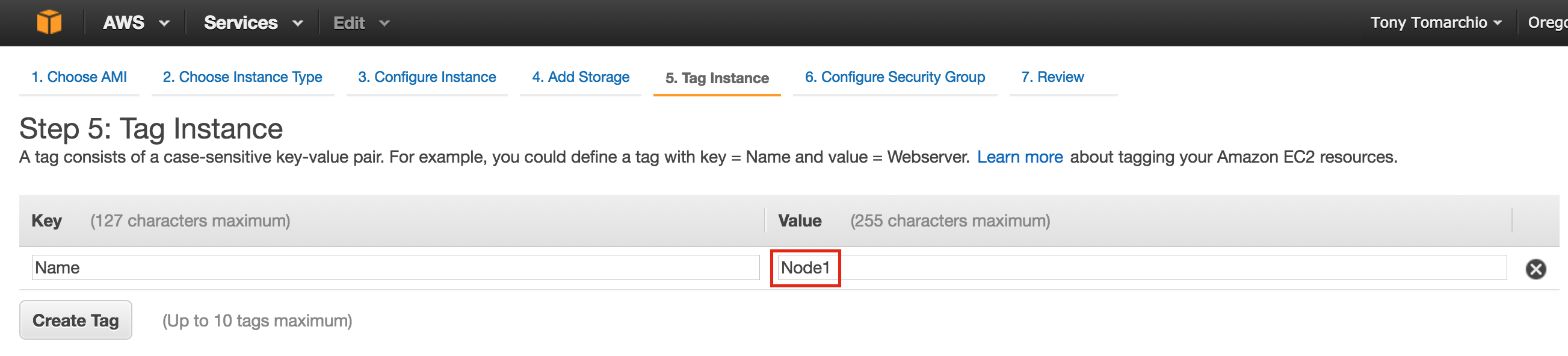

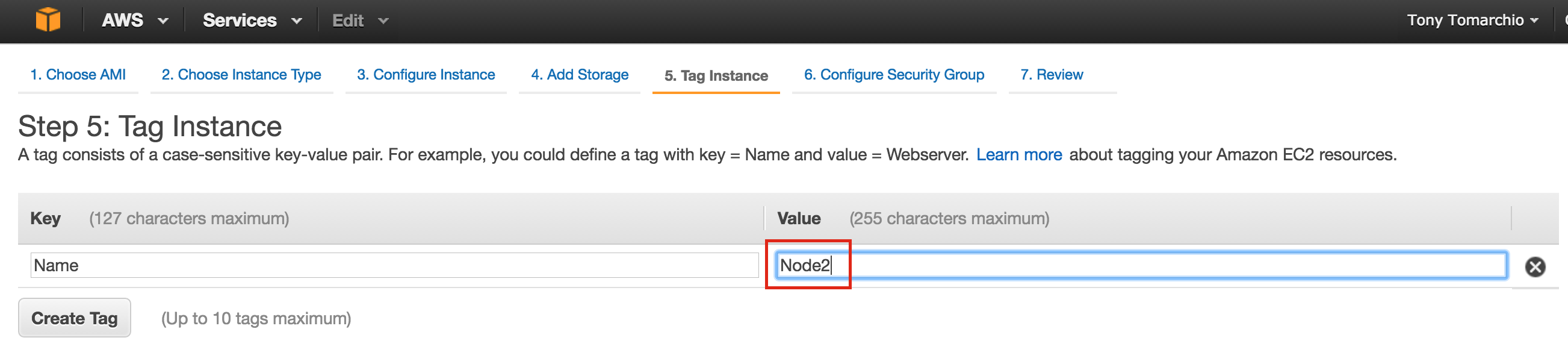

Define a Tag for the instance, Node1:

launch-instance7

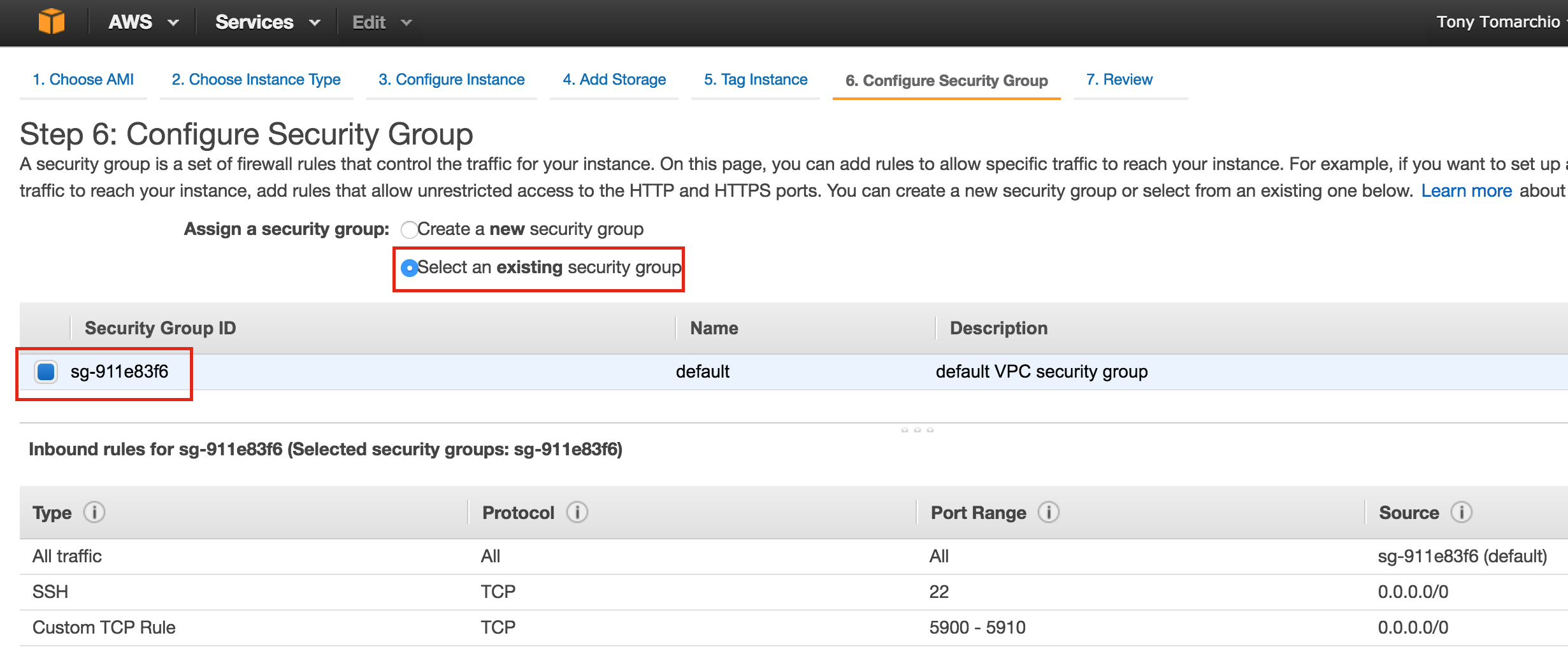

Associate the instance with the existing security group, so the firewall rules created previous will be active:

launch-instance8

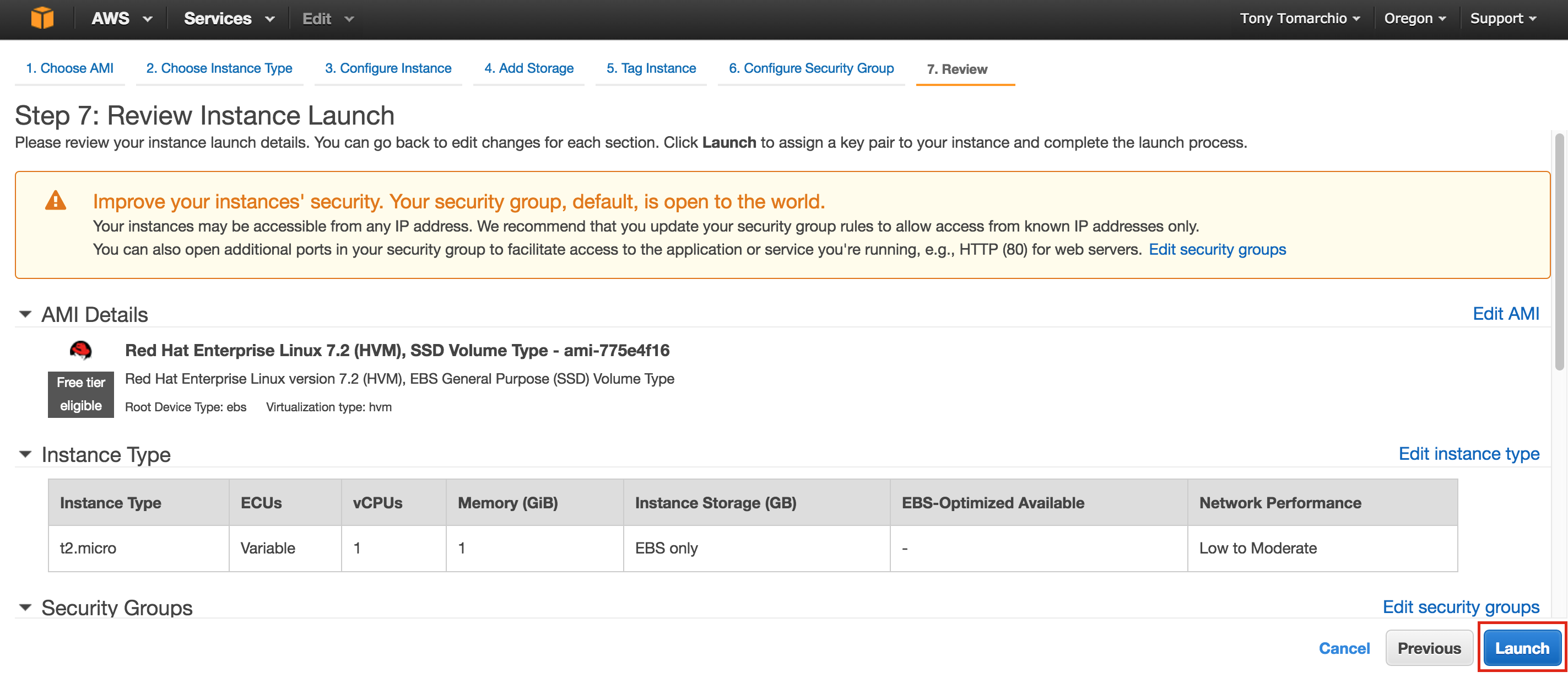

Click Launch:

launch-instance9

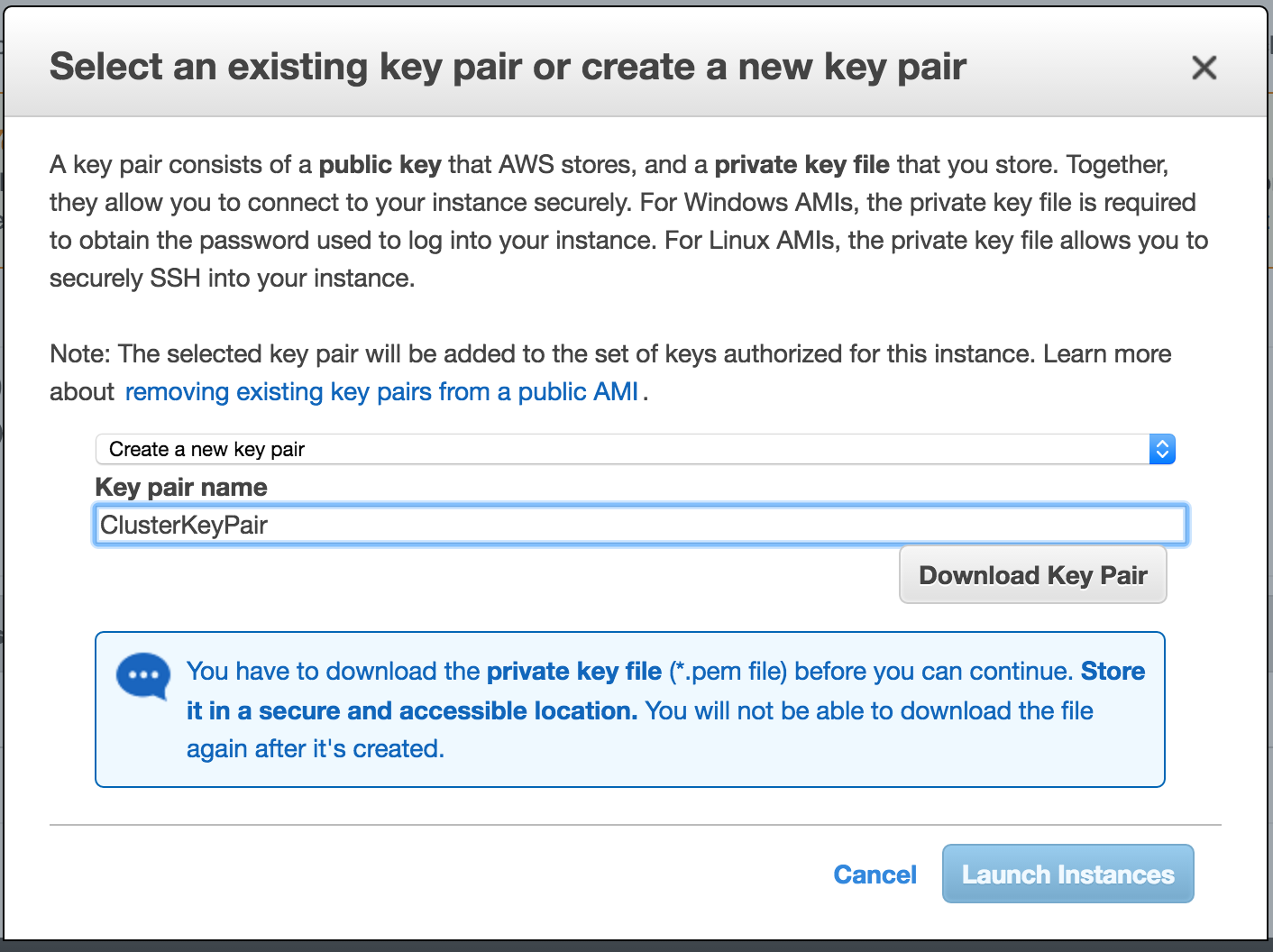

IMPORTANT:  If this is the first instance in your AWS environment, you’ll need to create a new key pair.  The private key file will need to be stored in a safe location as it will be required when you SSH into the linux instances

launch-instance10

Create “node2”

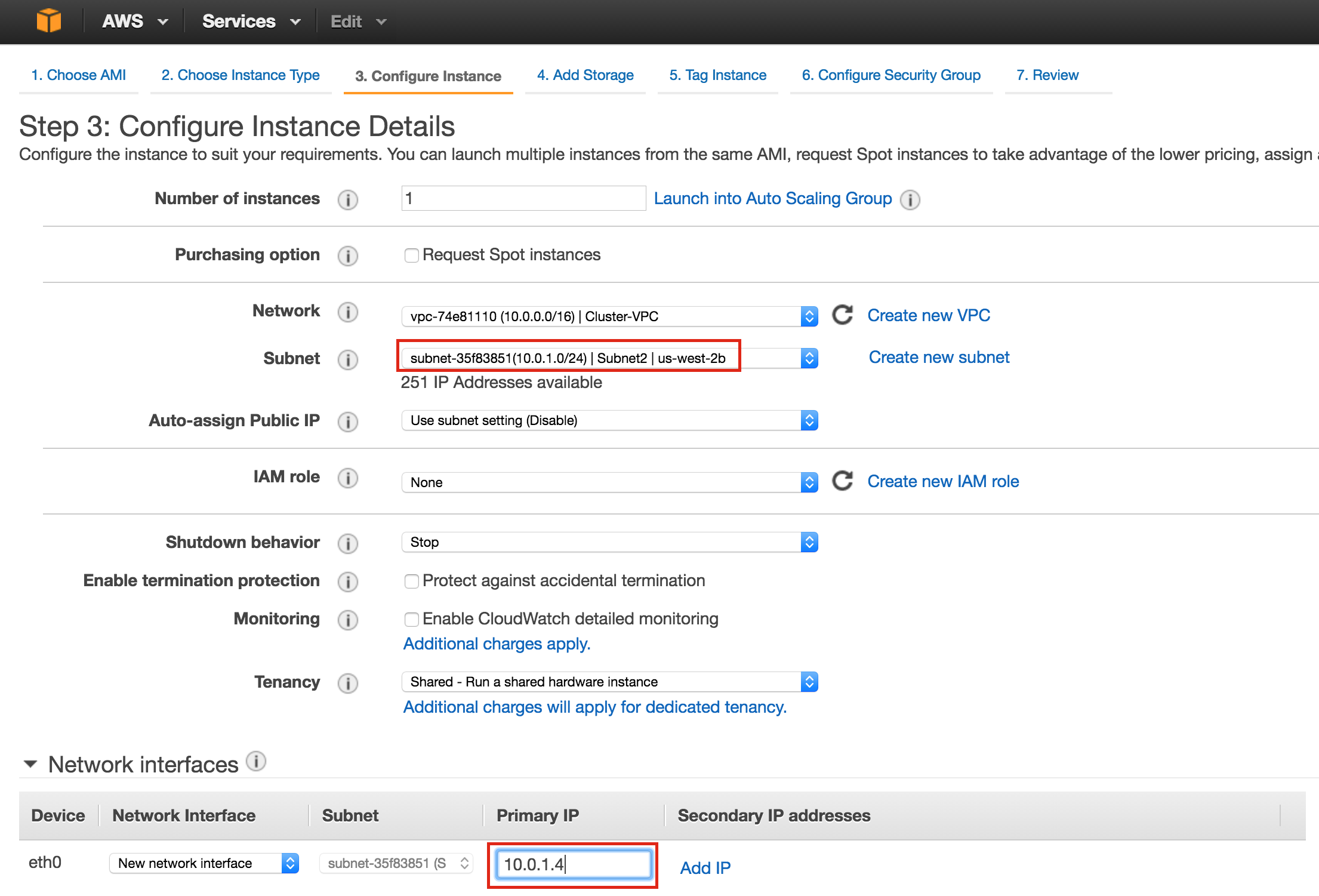

Repeat the steps above to create your second linux instance (node2).  Configure it exactly like Node1.  However, make sure that you deploy it into “Subnet2” (us-west-2b availability zone).  The IP range for Subnet2 is 10.0.1.0/24, so an IP of 10.0.1.4 is used here:

launch-instance11

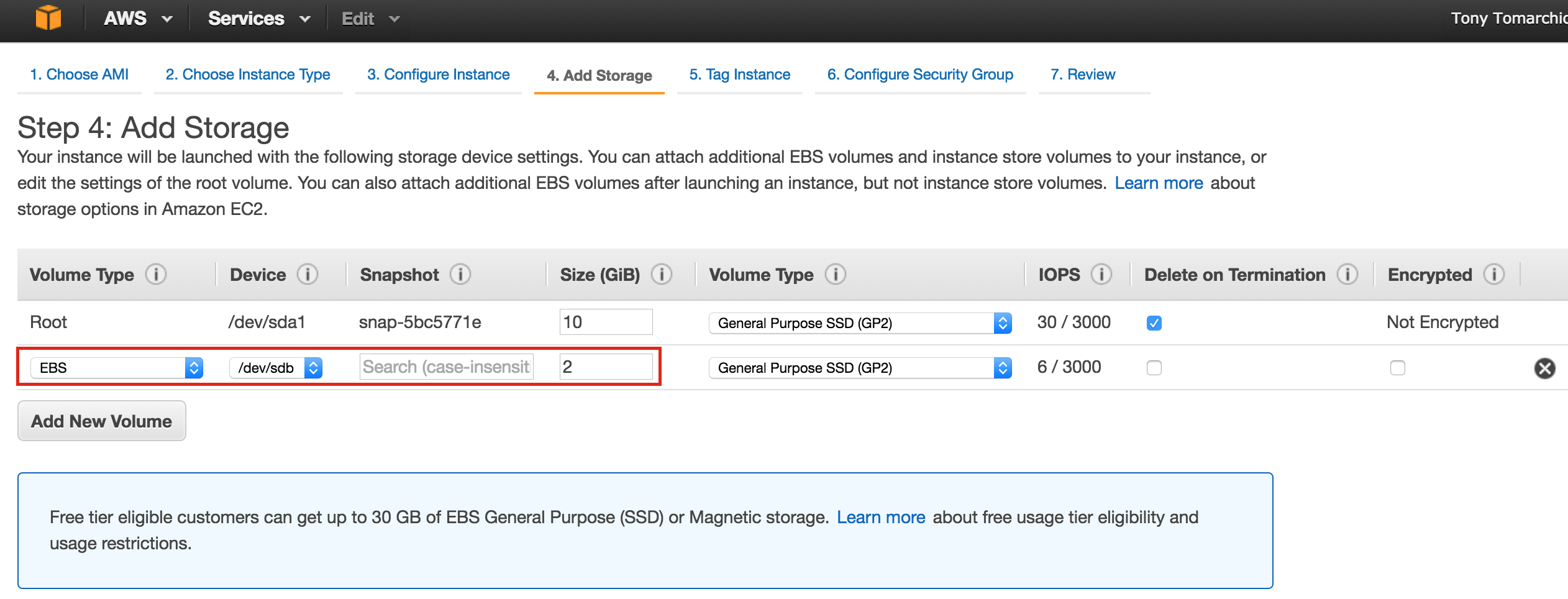

Make sure to add a 2nd disk to Node2 as well.  It should be the same exact size as the disk you added to Node1:

launch-instance12

Give the second instance a tag…. “Node2”:

launch-instance13

Create “witness”

Repeat the steps above to create your third linux instance (witness).  Configure it exactly like Node1&Node2, EXCEPT you DON’T need to add a 2nd disk, since this instance will only act as a witness to the cluster, and won’t ever bring MySQL online.

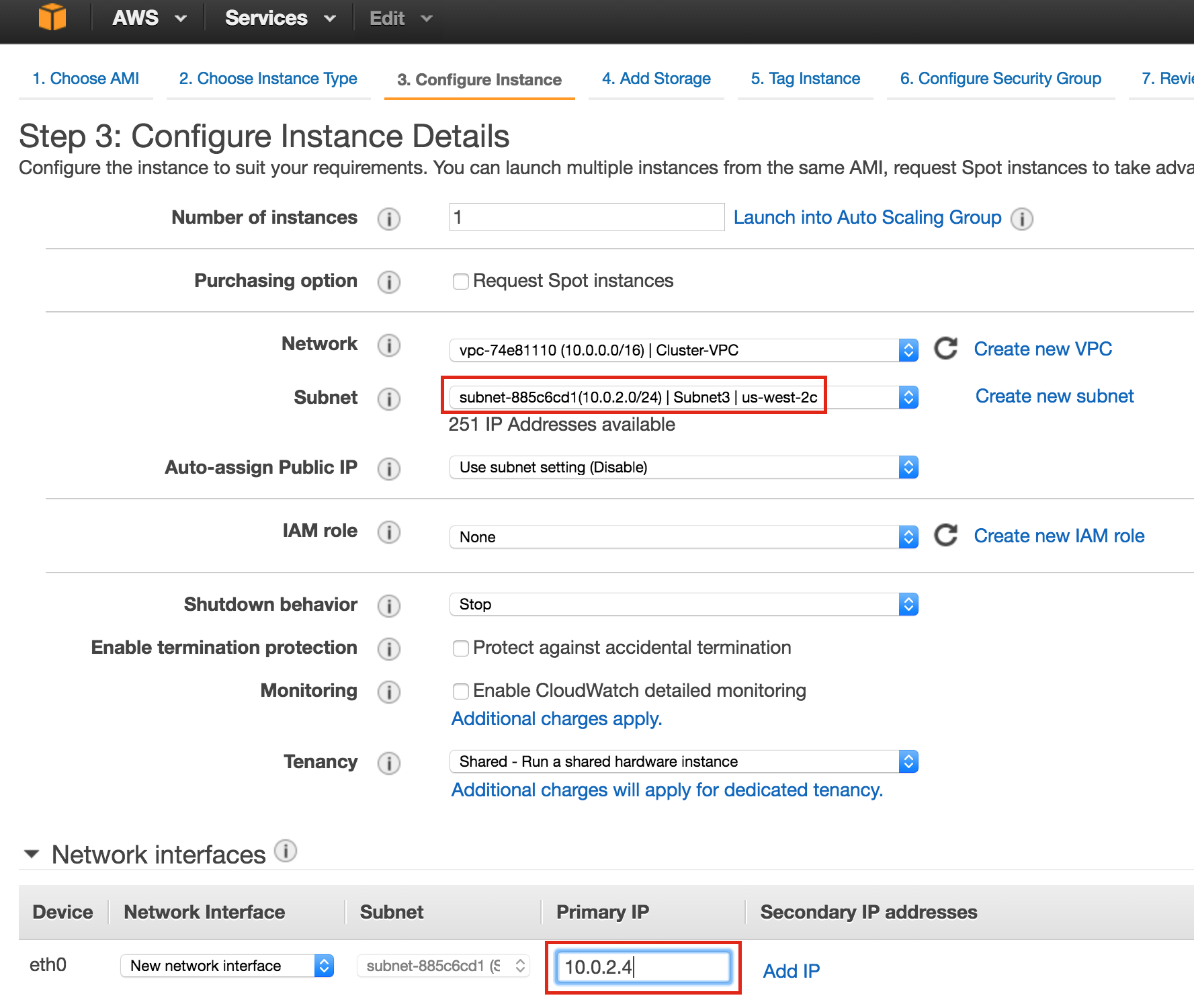

Make sure that you deploy it into “Subnet3” (us-west-2c availability zone).  The IP range for Subnet2 is 10.0.2.0/24, so an IP of 10.0.2.4 is used here:

launch-instance14

Note: default disk configuration is fine for the witness node.  A 2nd disk is NOT required:

launch-instance15

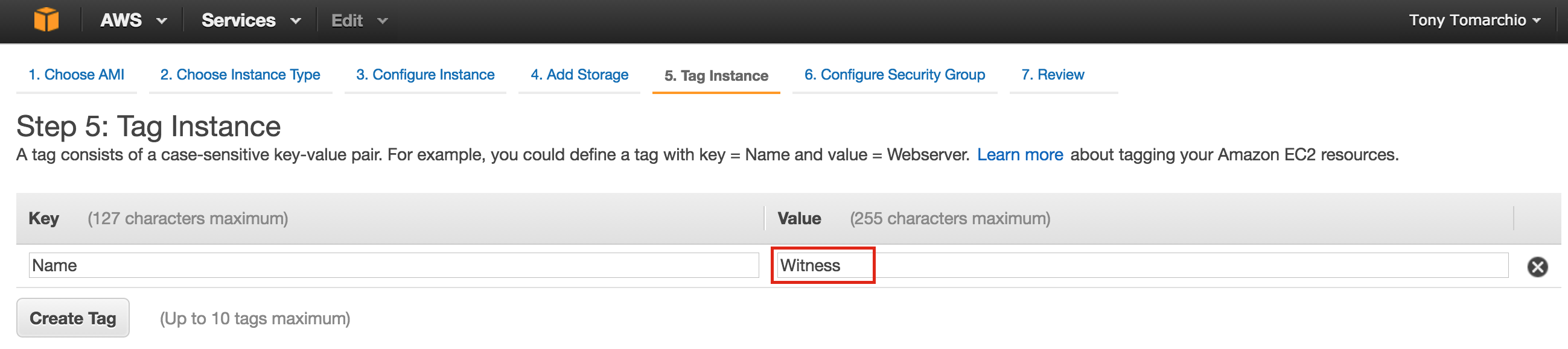

Tag the witness node:

launch-instance16

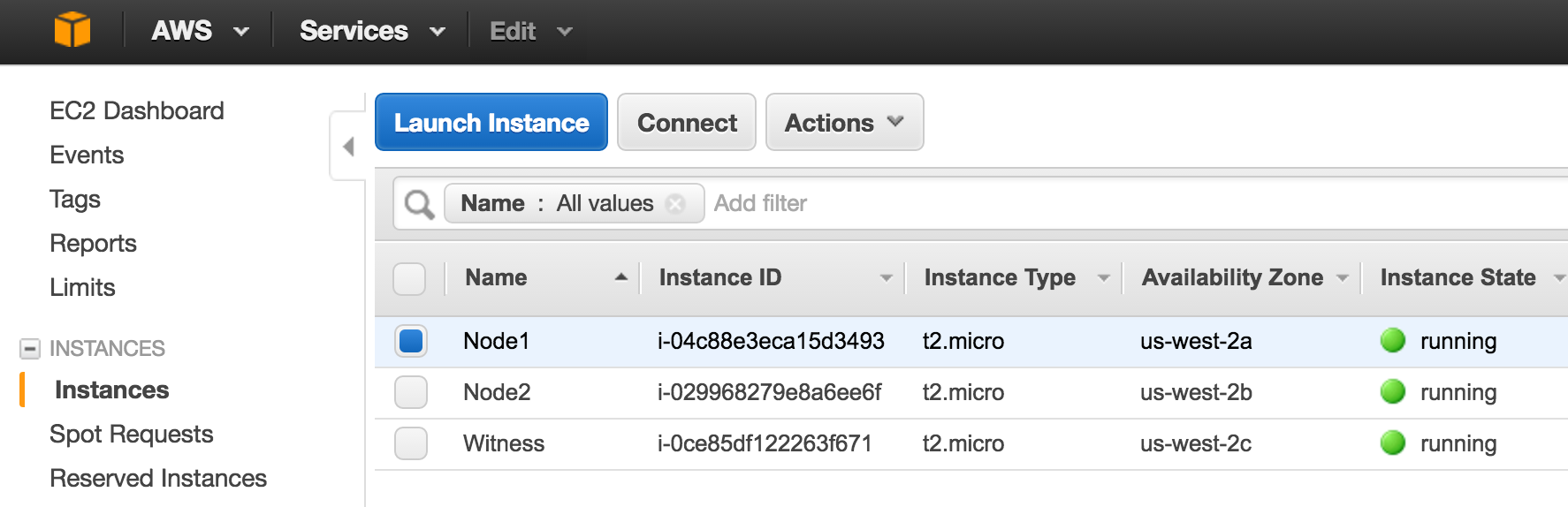

It may take a little while for your 3 instances to provision.  Once complete, you’ll see then listed as running in your EC2 console:

launch-instance17

Create Elastic IP

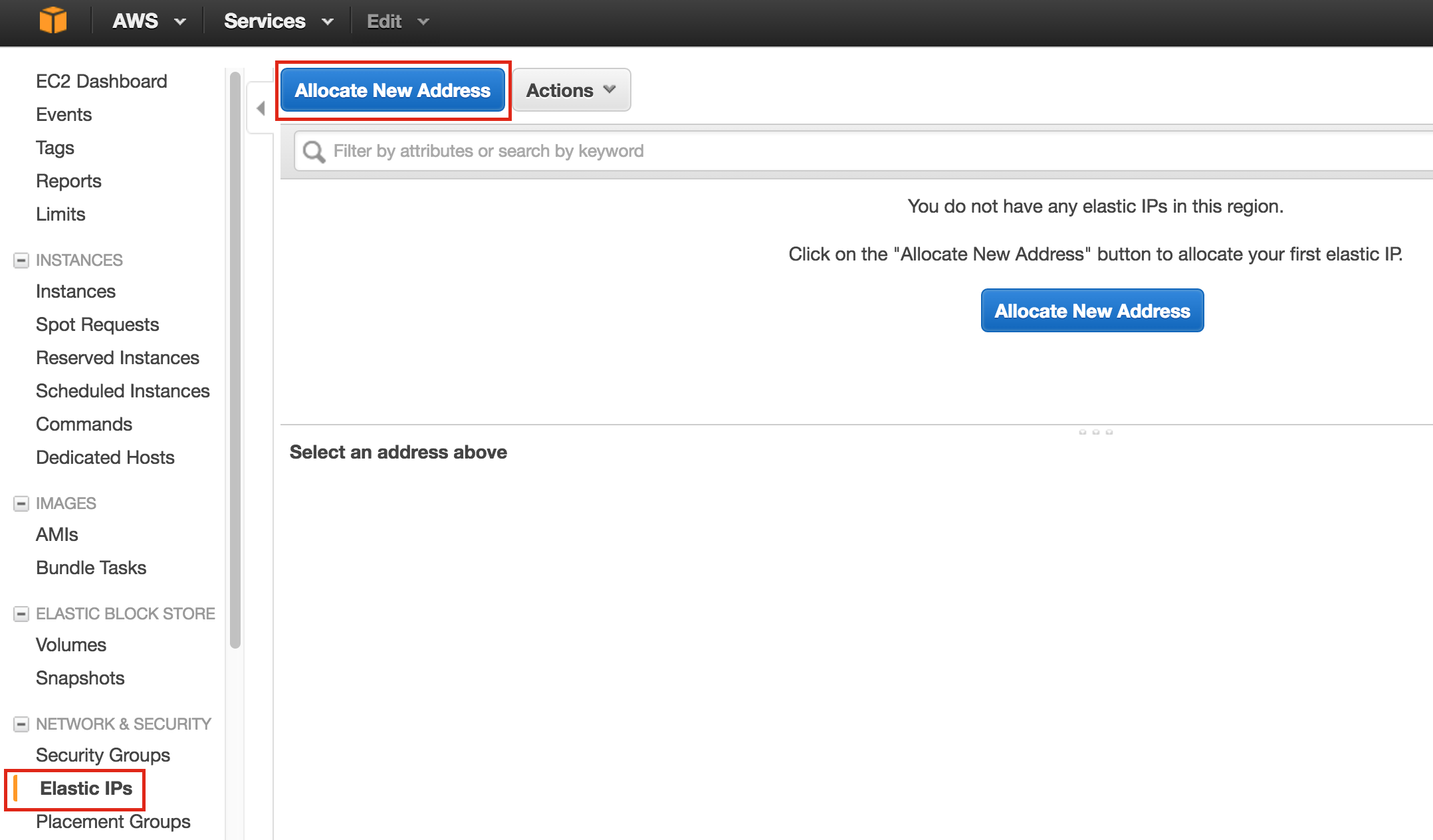

Next, create an Elastic IP, which is a public IP address that will be used to connect into you instance from the outside world.  Select Elastic IPs in the left menu, and then click “Allocate New Address”:

elastic-ip1

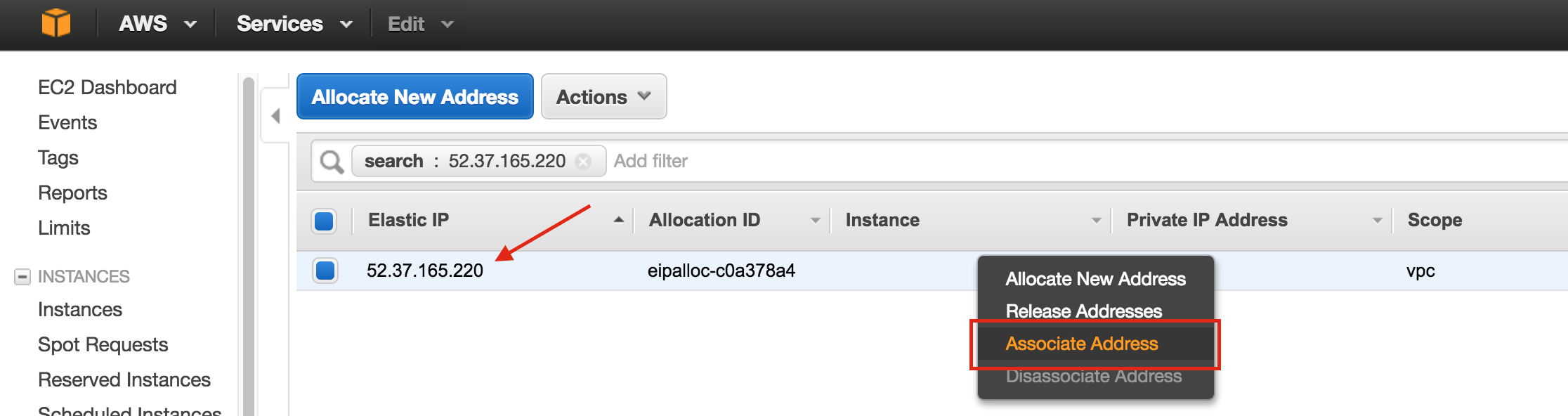

Select the newly created Elastic IP, right-click, and select “Associate Address”:

elastic-ip2

Associate this Elastic IP with Node1:

elastic-ip3

Repeat this for the other two instances if you want them to have internet access or be able to SSH/VNC into them directly.

Create Route Entry for the Virtual IP

At this point all 3 instances have been created, and the route table will need to be updated one more time in order for the cluster’s Virtual IP to work.  In this multi-subnet cluster configuration, the Virtual IP needs to live outside the range of the CIDR allocated to your VPC.

Define a new route that will direct traffic to the cluster’s Virtual IP (10.1.0.10) to the primary cluster node (Node1)

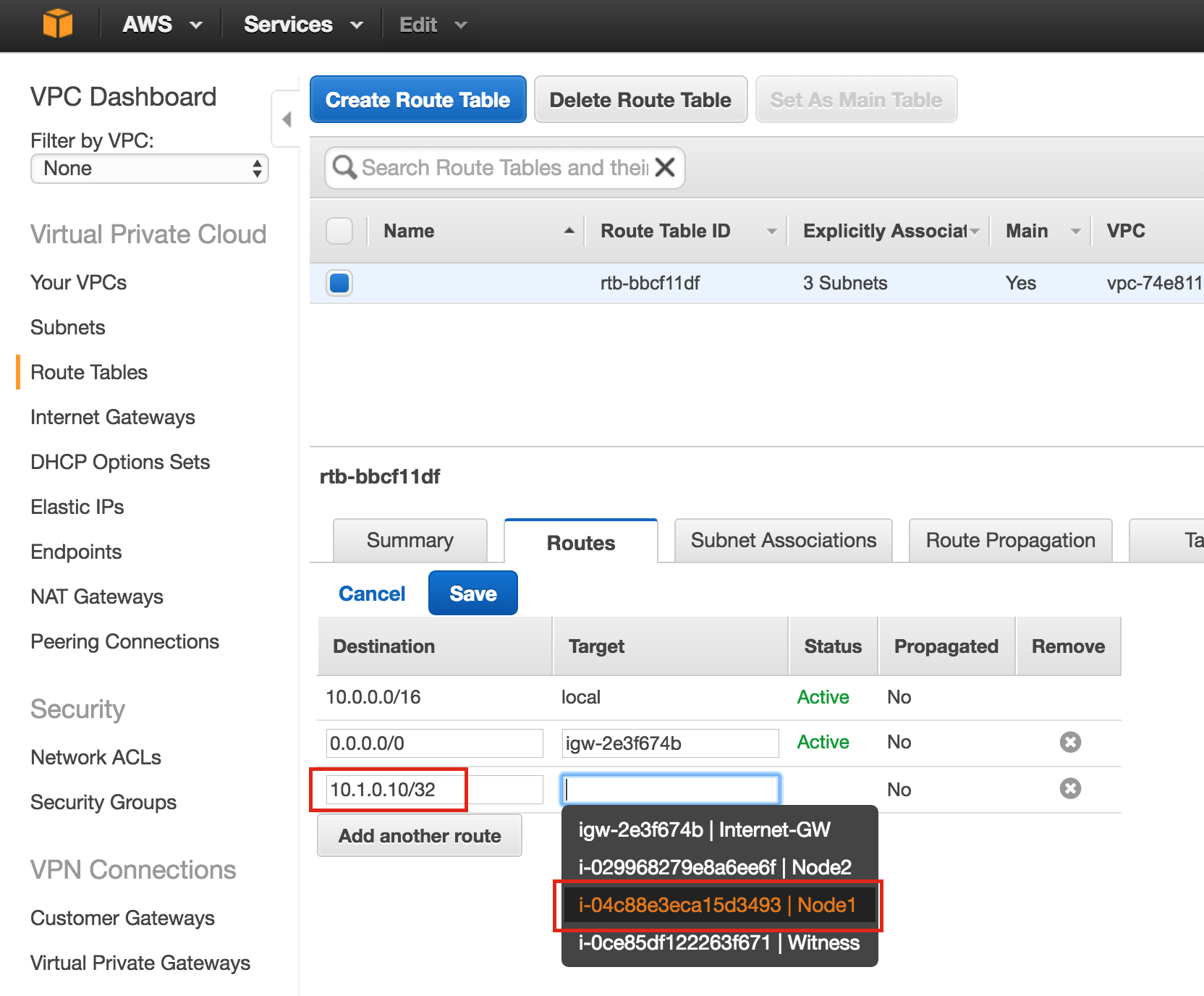

From the VPC Dashboard, select Route Tables, click Edit.  Add a route for “10.1.0.10/32” with a destination of Node1:

route-table-after-instance-creation

Disable Source/Dest Checking for ENI’s

Next, disable Source/Dest Checking for the Elastic Network Interfaces (ENI) of your cluster nodes. This is required in order for the instances to accept network packets for the virtual IP address of the cluster.

Do this for all ENIs.

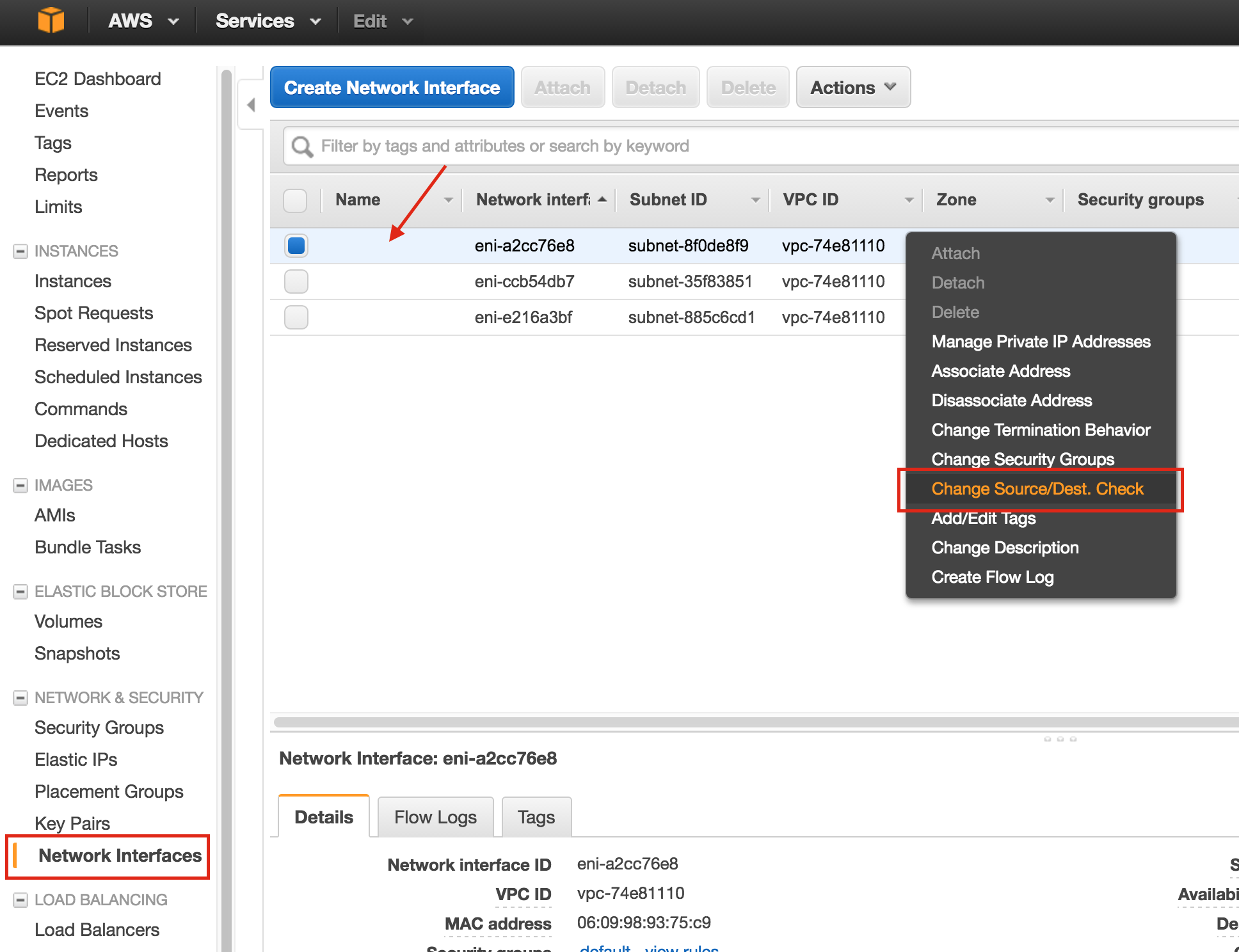

Select “Network Interfaces”, right-click on an ENI, and select “Change Source/Dest Check”.

disable-source-dest-check1

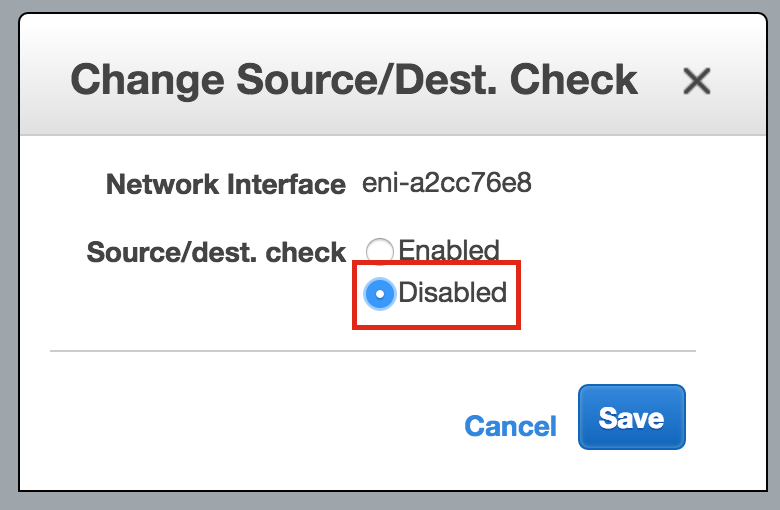

Select “Disabled“:

disable-source-dest-check2

Obtain Access Key ID and Secret Access Key

Later in the guide, the cluster software will use the AWS Command Line Interface (CLI) to manipulate a route table entry for the cluster’s Virtual IP to redirect traffic to the active cluster node.  In order for this to work, you will need to obtain an Access Key ID and Secret Access Key so that the AWS CLI can authenticate properly.

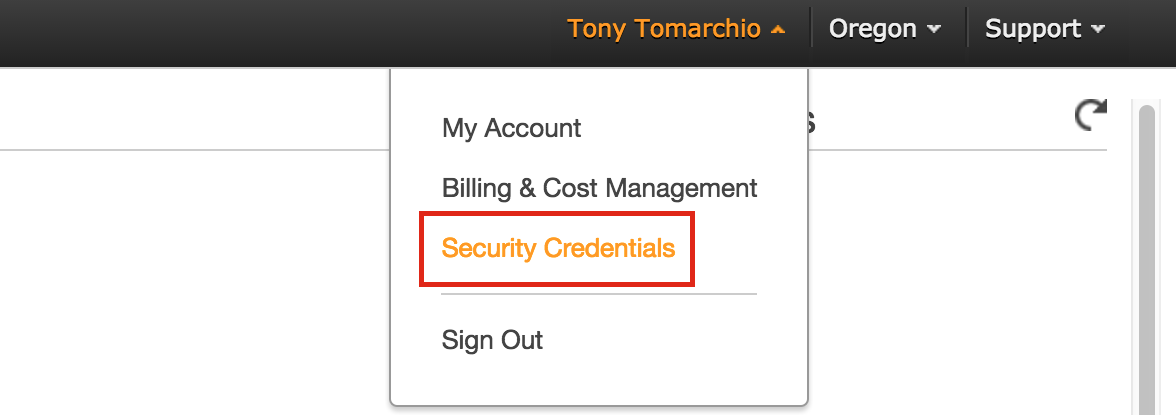

In the top-right of the EC2 Dashboard, click on your name, and underneath select “Security Credentials” from the drop-down:

access-key1

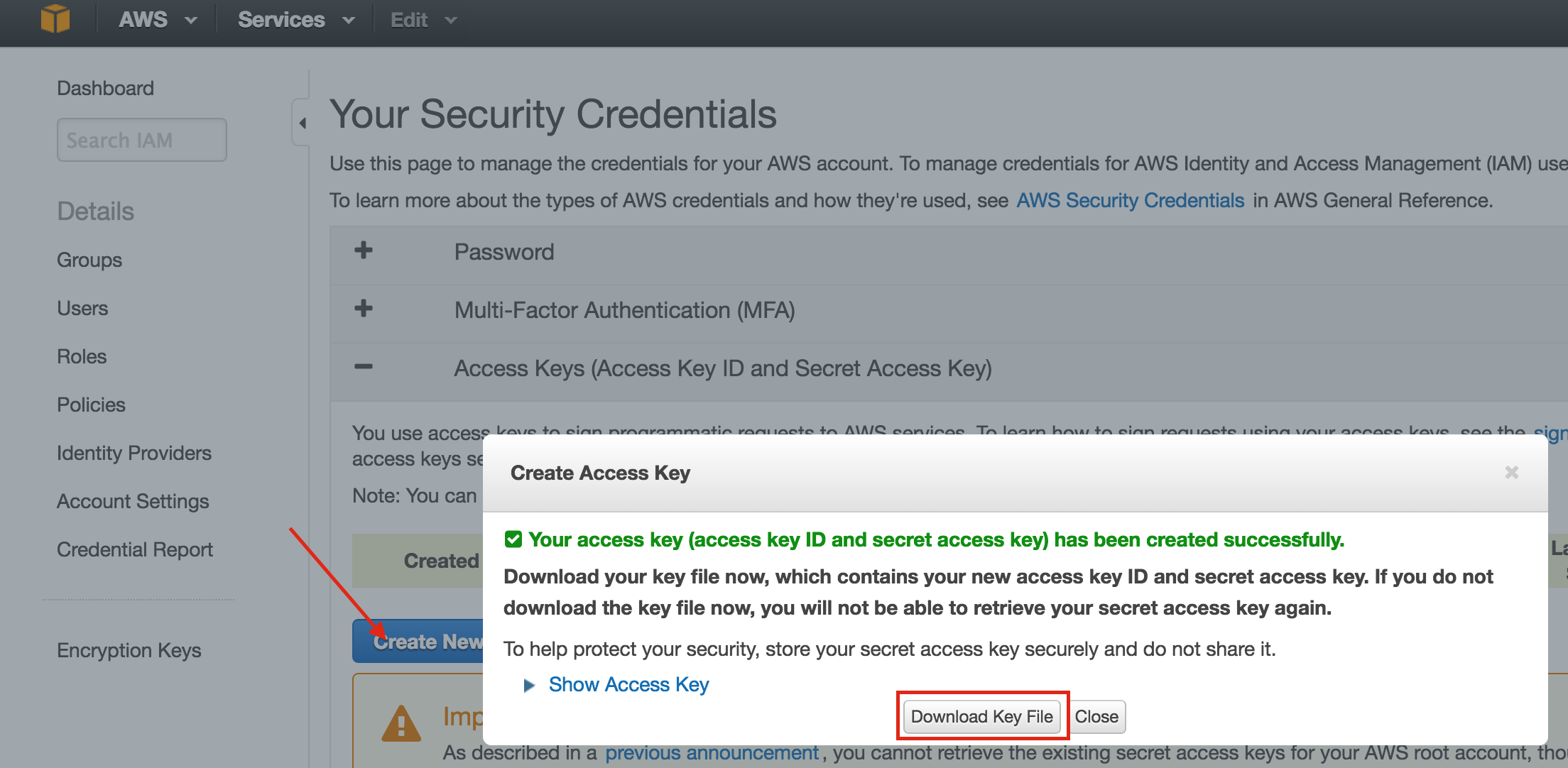

Expand the “Access Keys (Access Key ID and Secret Access Key)” section of the table, and click “Create New Access Key”.  Download Key File and store the file in a safe location.

access-key2

Linux OS Configuration

Connect to the linux instance(s):

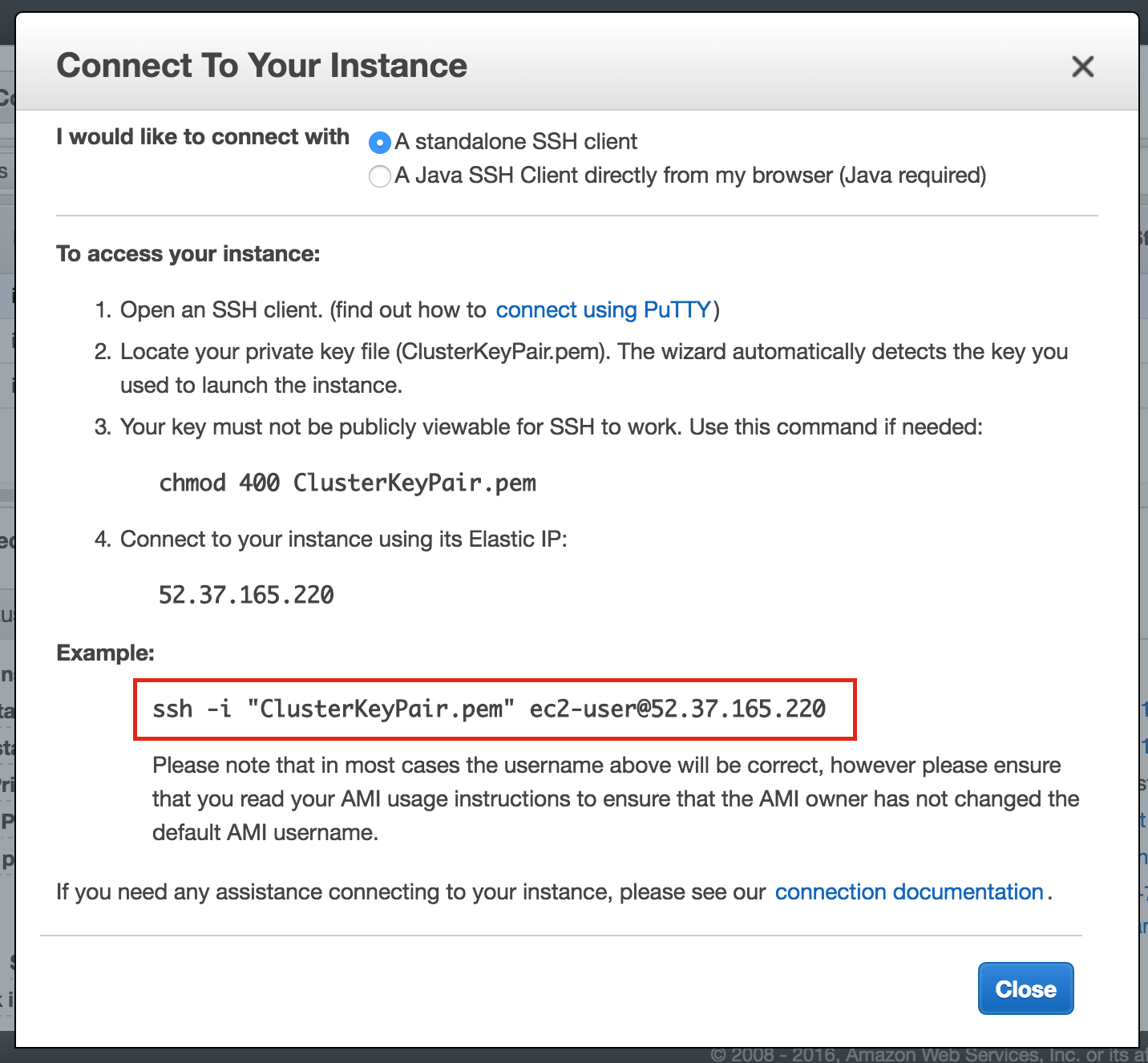

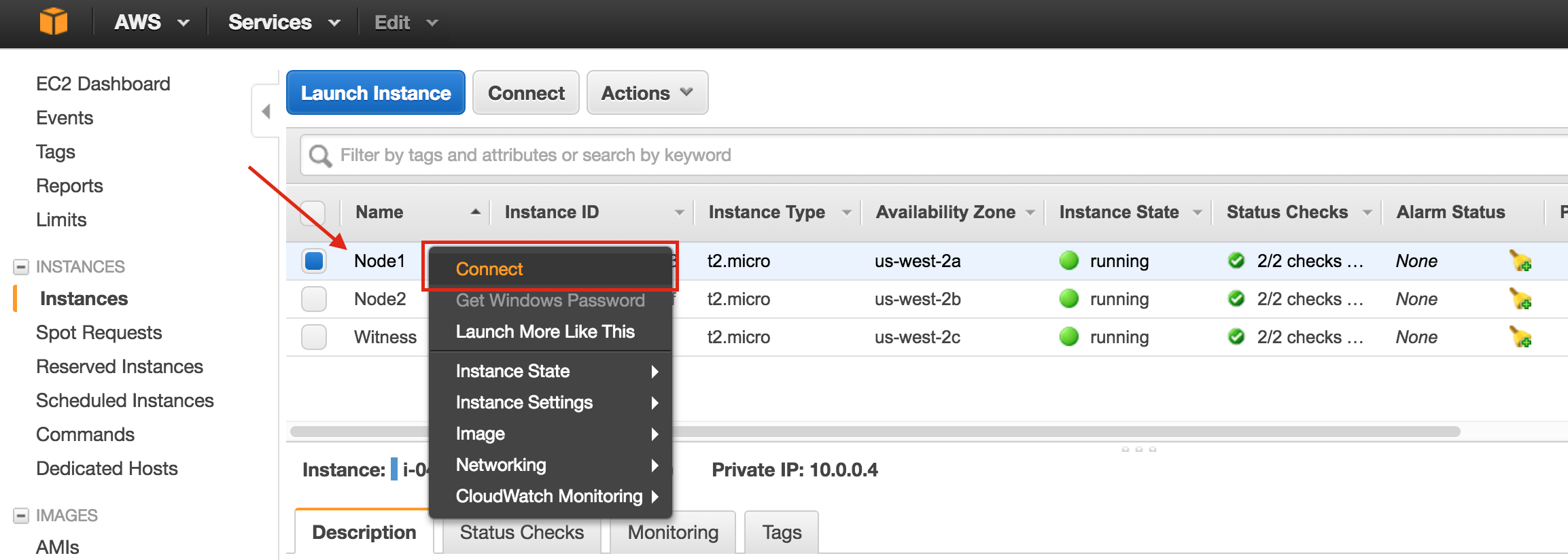

To connect to your newly created linux instances (via SSH), right click on the instance and select “Connect”.  This will display the instructions for connecting to the instance.  You will need the Private Key File you created/downloaded in a previous step:

connect1

Example:

connect2

Here is where we will leave the EC2 Dashboard for a little while and get our hands dirty on the command line, which as a Linux administrator you should be used to by now.

You aren’t given the root password to your Linux VMs in AWS (or the default “ec2-user” account either), so once you connect, use the “sudo” command to gain root privileges:

$sudo su -

Edit /etc/hosts

Unless you have already have a DNS server setup, you’ll want to create host file entries on all 3 servers so that they can properly resolve each other by name

Add the following lines to the end of your /etc/hosts file:

10.0.0.4    node1
10.0.1.4    node2
10.0.2.4    witness
10.1.0.10   mysql-vip

Disable SELinux

Edit /etc/sysconfig/linux and set “SELINUX=disabled”:

# vi /etc/sysconfig/selinux

# This file controls the state of SELinux on the system.
# SELINUX= can take one of these three values:
#     enforcing - SELinux security policy is enforced.
#     permissive - SELinux prints warnings instead of enforcing.
#     disabled - No SELinux policy is loaded.
SELINUX=disabled
# SELINUXTYPE= can take one of these two values:
#     targeted - Targeted processes are protected,
#     mls - Multi Level Security protection.
SELINUXTYPE=targeted

Set Hostnames

By default, these Linux instances will have a hostname that is based upon the server’s IP address, something like “ip-10-0-0-4.us-west-2.compute.internal”

You might notice that if you attempt to modify the hostname the “normal” way (i.e. editing /etc/sysconfig/network, etc), after each reboot, it reverts back to the original!!  I found a great thread in the AWS discussion forums that describes how to actually get hostnames to remain static after reboots.

Details here:  https://forums.aws.amazon.com/message.jspa?messageID=560446

Comment out modules that set hostname in “/etc/cloud/cloud.cfg” file. The following modules can be commented out using #.

# - set_hostname
# - update_hostname

Next, also change your hostname in /etc/hostname.

Reboot Cluster Nodes

Reboot all 3 instances so that SELinux is disabled, and the hostname changes take effect.

Install and Configure VNC (and related packages)

In order to access the GUI of our linux servers, and to later install and configure our cluster, install VNC server, as well as a handful of other required packages (cluster software needs the redhat-lsb and patch rpms).

# yum groupinstall “X Window System”
# yum groupinstall “Server with GUI”
# yum install tigervnc-server xterm wget unzip patch redhat-lsb
# vncpasswd

For RHEL 7.x/CentOS7.x:

The following URL is a great guide to getting VNC Server running on RHEL 7 / CentOS 7:

https://www.digitalocean.com/community/tutorials/how-to-install-and-configure-vnc-remote-access-for-the-gnome-desktop-on-centos-7

Note:  This example configuration runs VNC on display 2 (:2, aka port 5902) and as root (not secure).  Adjust accordingly!

# cp /lib/systemd/system/vncserver@.service /etc/systemd/system/vncserver@:2.service
# vi /etc/systemd/system/vncserver@:2.service


[Service]
Type=forking
# Clean any existing files in /tmp/.X11-unix environment
ExecStartPre=/bin/sh -c '/usr/bin/vncserver -kill %i > /dev/null 2>&1 || :'
ExecStart=/sbin/runuser -l root -c "/usr/bin/vncserver %i -geometry 1024x768"
PIDFile=/root/.vnc/%H%i.pid
ExecStop=/bin/sh -c '/usr/bin/vncserver -kill %i > /dev/null 2>&1 || :'


# systemctl daemon-reload
# systemctl enable vncserver@:2.service
# vncserver :2 -geometry 1024x768

For RHEL/CentOS 6.x systems:

# vi /etc/sysconfig/vncservers

      VNCSERVERS="2:root"
      VNCSERVERARGS[2]="-geometry 1024x768"

# service vncserver start
# chkconfig vncserver on

Open a VNC client, and connect to the <ElasticIP:2>.  If you can’t get it, it’s likely your linux firewall is in the way.  Either open the VNC port we are using here (port 5902), or for now, disable the firewall (NOT RECOMMENDED FOR PRODUCTION ENVIRONMENTS):

# systemctl stop firewalld
# systemctl disable firewalld



Partition and Format the “data” disk

When the linux instances were launched, and extra disk was added to each cluster node to store the application data we will be protecting.  In this case it happens to be MySQL databases.

The second disk should appear as /dev/xvdb.  You can run the “fdisk -l” command to verify.  You’ll see that /dev/xvda (OS) is already being used.

# fdisk -l

Disk /dev/xvda: 10.7 GB, 10737418240 bytes, 20971520 sectors
Units = sectors of 1 * 512 = 512 bytes
Sector size (logical/physical): 512 bytes / 512 bytes
I/O size (minimum/optimal): 512 bytes / 512 bytes
Disk label type: gpt

#         Start          End    Size  Type            Name
1         2048         4095      1M  BIOS boot parti
2         4096     20971486     10G  Microsoft basic
Disk /dev/xvdb: 2147 MB, 2147483648 bytes, 4194304 sectors
Units = sectors of 1 * 512 = 512 bytes
Sector size (logical/physical): 512 bytes / 512 bytes
I/O size (minimum/optimal): 512 bytes / 512 bytes



Here I will create a partition (/dev/xvdb1), format it, and mount it at the default location for MySQL, which is /var/lib/mysql.  Perform the following steps on BOTH “node1” and “node2”:

# fdisk /dev/xvdb
Welcome to fdisk (util-linux 2.23.2).

Changes will remain in memory only, until you decide to write them.
Be careful before using the write command.

Device does not contain a recognized partition table
Building a new DOS disklabel with disk identifier 0x8c16903a.

Command (m for help): n
Partition type:
   p   primary (0 primary, 0 extended, 4 free)
   e   extended
Select (default p): p
Partition number (1-4, default 1): 1
First sector (2048-4194303, default 2048): <enter>
Using default value 2048
Last sector, +sectors or +size{K,M,G} (2048-4194303, default 4194303): <enter>
Using default value 4194303
Partition 1 of type Linux and of size 2 GiB is set

Command (m for help): w
The partition table has been altered!

Calling ioctl() to re-read partition table.
Syncing disks.

# mkfs.ext4 /dev/xvdb1
# mkdir /var/lib/mysql

On node1, mount the filesystem:

# mount /dev/xvdb1 /var/lib/mysql

Install EC2 API Tools

The EC2 API Tools (EC2 CLI) must be installed on each of the cluster nodes, so that the cluster software can later manipulate Route Tables, enabling connectivity to the Virtual IP.

The following URL is an excellent guide to setting this up.:

http://docs.aws.amazon.com/AWSEC2/latest/CommandLineReference/set-up-ec2-cli-linux.html

Here are the key steps:

Download, unzip, and move the CLI tools to the standard location (/opt/aws):

# wget http://s3.amazonaws.com/ec2-downloads/ec2-api-tools.zip
# unzip ec2-api-tools.zip
# mv ec2-api-tools-1.7.5.1/ /opt/aws/
# export EC2_HOME="/opt/aws"

If java isn’t already installed (run “which java” to check), install it:

# yum install java-1.8.0-openjdk

example (Based on default config of RHEL 7.2 system.  Adjust accordingly)

# export JAVA_HOME="/usr/lib/jvm/java-1.8.0-openjdk-1.8.0.71-2.b15.el7_2.x86_64/jre/"

You’ll need your AWS Access Key and AWS Secret Key.  Keep these values handy, because they will be needed later during cluster setup too! Refer to the following URL for more information:

https://console.aws.amazon.com/iam/home?#security_credential

# export AWS_ACCESS_KEY=your-aws-access-key-id
# export AWS_SECRET_KEY=your-aws-secret-key

Test CLI utility functionality:

# /opt/aws/bin/ec2-describe-regions

REGION           eu-west-1       ec2.eu-west-1.amazonaws.com
REGION           ap-southeast-1           ec2.ap-southeast-1.amazonaws.com
REGION           ap-southeast-2           ec2.ap-southeast-2.amazonaws.com
REGION           eu-central-1    ec2.eu-central-1.amazonaws.com
REGION           ap-northeast-2            ec2.ap-northeast-2.amazonaws.com
REGION           ap-northeast-1            ec2.ap-northeast-1.amazonaws.com
REGION           us-east-1         ec2.us-east-1.amazonaws.com
REGION           sa-east-1         ec2.sa-east-1.amazonaws.com
REGION           us-west-1        ec2.us-west-1.amazonaws.com
REGION           us-west-2        ec2.us-west-2.amazonaws.com



Install and Configure MySQL

Next, install install the MySQL packages, initialize a sample database, and set “root” password for MySQL.  In RHEL7.X, the MySQL packages have been replaced with the MariaDB packages.

On “node1”:

# yum install mariadb mariadb-server
# mount /dev/xvdb1 /var/lib/mysql
# /usr/bin/mysql_install_db --datadir="/var/lib/mysql/" --user=mysql
# mysqld_safe --user=root --socket=/var/lib/mysql/mysql.sock --port=3306 --datadir=/var/lib/mysql --log &
#
# # NOTE: This next command allows remote connections from ANY host.  NOT a good idea for production!
# echo “update user set Host='%' where Host='node1'; flush privileges | mysql mysql
#
# #Set MySQL's root password to 'SIOS'
# echo "update user set Password=PASSWORD('SIOS') where User='root'; flush privileges" | mysql mysql

Create a MySQL configuration file. We will place this on the data disk  (that will later be replicated – /var/lib/mysql/my.cnf).  Example:

# vi /var/lib/mysql/my.cnf

[mysqld]
datadir=/var/lib/mysql
socket=/var/lib/mysql/mysql.sock
pid-file=/var/run/mariadb/mariadb.pid
user=root
port=3306
# Disabling symbolic-links is recommended to prevent assorted security risks
symbolic-links=0

[mysqld_safe]
log-error=/var/log/mariadb/mariadb.log
pid-file=/var/run/mariadb/mariadb.pid

[client]
user=root
password=SIOS

Move the original MySQL configuration file aside, if it exists:

# mv /etc/my.cnf /etc/my.cnf.orig

On “node2”:

On “node2”, you ONLY need to install the MariaDB/MySQL packages.  The other steps aren’t required:

[root@node2 ~]# yum install mariadb mariadb-server

Install and Configure the Cluster

At this point, we are ready to install and configure our cluster.  SIOS Protection Suite for Linux (aka SPS-Linux) will be used in this guide as the clustering technology.  It provides both high availability failover clustering features (LifeKeeper) as well as real-time, block level data replication (DataKeeper) in a single, integrated solution.  SPS-Linux enables you to deploy a “SANLess” cluster, aka a “shared nothing” cluster meaning that cluster nodes don’t have any shared storage, as is the case with EC2 Instances.

Install SIOS Protection Suite for Linux

Perform the following steps on ALL 3 VMs (node1, node2, witness):

Download the SPS-Linux installation image file (sps.img) and and obtain either a trial license or purchase permanent licenses.  Contact SIOS for more information.

You will loopback mount it and run the “setup” script inside, as root (or first “sudo su -” to obtain a root shell)

For example:

# mkdir /tmp/install
# mount -o loop sps.img /tmp/install
# cd /tmp/install
# ./setup

During the installation script, you’ll be prompted to answer a number of questions.  You will hit Enter on almost every screen to accept the default values.  Note the following exceptions:

  • On the screen titled “High Availability NFS” you may select “n” as we will not be creating a highly available NFS server
  • Towards the end of the setup script, you can choose to install a trial license key now, or later. We will install the license key later, so you can safely select “n” at this point
  • In the final screen of the “setup” select the ARKs (Application Recovery Kits, i.e. “cluster agents”) you wish to install from the list displayed on the screen.
    • The ARKs are ONLY required on “node1” and “node2”.  You do not need to install on “witness”
    • Navigate the list with the up/down arrows, and press SPACEBAR to select the following:
      • lkDR – DataKeeper for Linux
      • lkSQL – LifeKeeper MySQL RDBMS Recovery Kit
    • This will result in the following additional RPMs installed on “node1” and “node2”:
      • steeleye-lkDR-9.0.2-6513.noarch.rpm
      • steeleye-lkSQL-9.0.2-6513.noarch.rpm

Install Witness/Quorum package

The Quorum/Witness Server Support Package for LifeKeeper (steeleye-lkQWK) combined with the existing failover process of the LifeKeeper core allows system failover to occur with a greater degree of confidence in situations where total network failure could be common. This effectively means that failovers can be done while greatly reducing the risk of “split-brain” situations.

Install the Witness/Quorum rpm on all 3 nodes (node1, node2, witness):

# cd /tmp/install/quorumrpm -Uvh steeleye-lkQWK-9.0.2-6513.noarch.rpm

On ALL 3 nodes (node1, node2, witness), edit /etc/default/LifeKeeper, set

NOBCASTPING=1

On ONLY the Witness server (“witness”), edit /etc/default/LifeKeeper, set

WITNESS_MODE=off/none

Install the EC2 Recovery Kit Package

SPS-Linux provides specific features that allow resources to failover between nodes in different availability zones and regions. Here, the EC2 Recovery Kit (i.e. cluster agent) is used to manipulate Route Tables so that connections to the Virtual IP are routed to the active cluster node.

Install the EC2 rpm (node1, node2):

# cd /tmp/install/amazonrpm -Uvh steeleye-lkECC-9.0.2-6513.noarch.rpm

Install a License key

On all 3 nodes, use the “lkkeyins” command to install the license file that you obtained from SIOS:

# /opt/LifeKeeper/bin/lkkeyins <path_to_file>/<filename>.lic

Start LifeKeeper

On all 3 nodes, use the “lkstart” command to start the cluster software:

# /opt/LifeKeeper/bin/lkstart

Set User Permissions for LifeKeeper GUI

On all 3 nodes, create a new linux user account (i.e. “tony” in this example).  Edit /etc/group and add the “tony” user to the “lkadmin” group to grant access to the LifeKeeper GUI.  By default only “root” is a member of the group, and we don’t have the root password here:

# useradd tony
# passwd tony
# vi /etc/group

lkadmin:x:1001:root,tony

Open the LifeKeeper GUI

Make a VNC connection to the Elastic IP (Public IP) address of node1.  Based on the VNC  configuration from above, you would connect to <Public_IP>:2 using the VNC password you specified earlier.  Once logged in, open a terminal window and run the LifeKeeper GUI using the following command:

# /opt/LifeKeeper/bin/lkGUIapp &

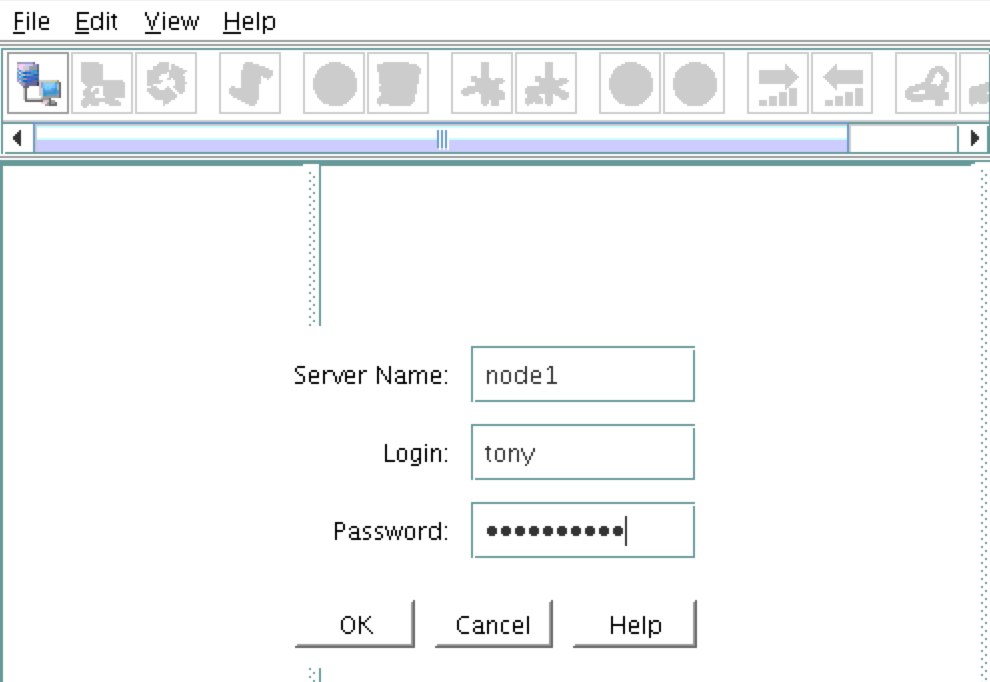

You will be prompted to connect to your first cluster node (“node1”).  Enter the linux userid and password specified during VM creation:

lk-gui-connect1

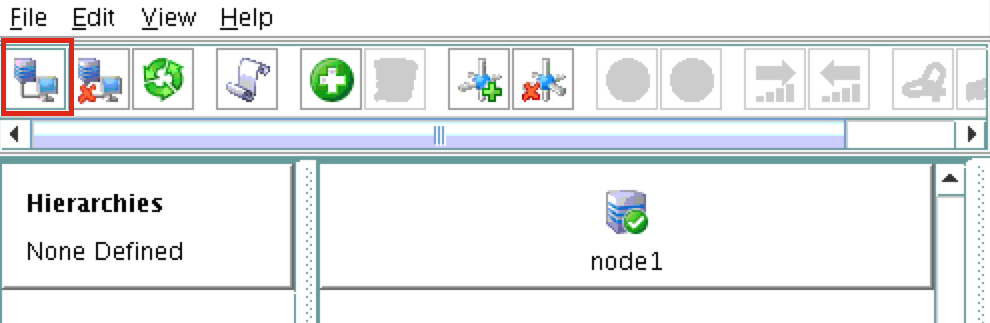

Next, connect to both “node2” and “witness” by clicking the “Connect to Server” button highlighted in the following screenshot:

lk-gui-connect2

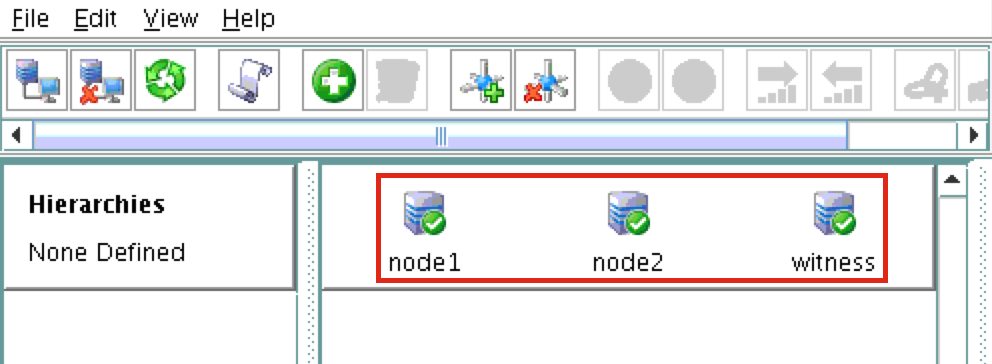

You should now see all 3 servers in the GUI, with a green checkmark icon indicating they are online and healthy:

lk-gui-connect3

Create Communication Paths

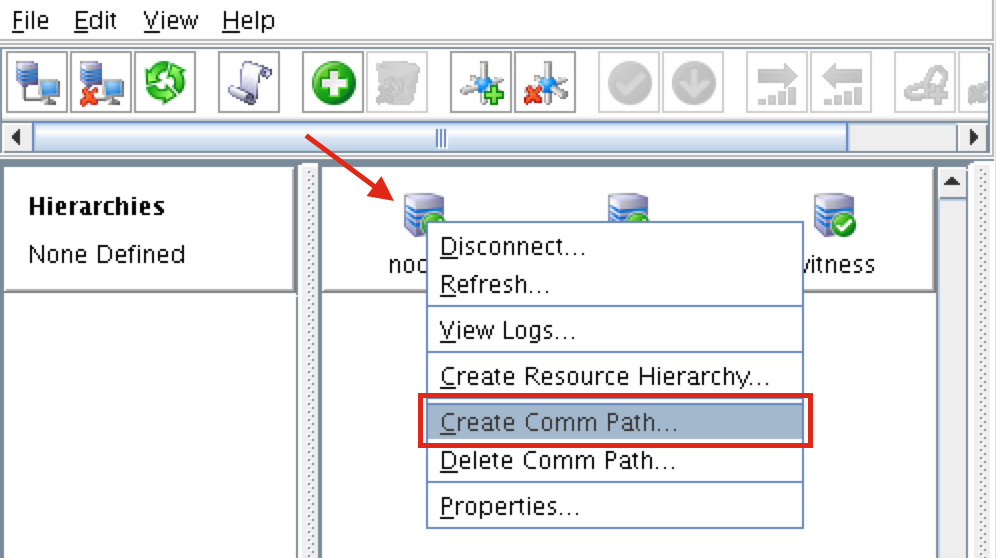

Right-click on “node1” and select Create Comm Path

comm path1

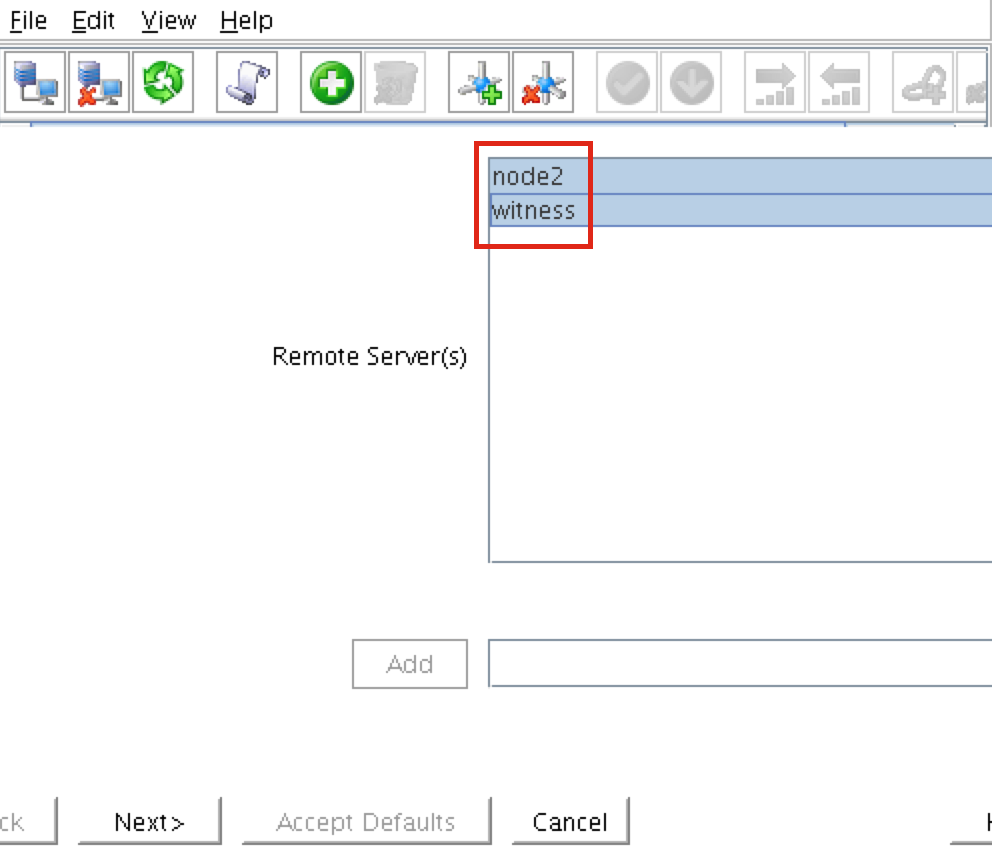

Select BOTH “node2” and “witness” and then follow the wizard.  This will create comm paths between:

  • node1 & node2
  • node1 & witness

comm path2

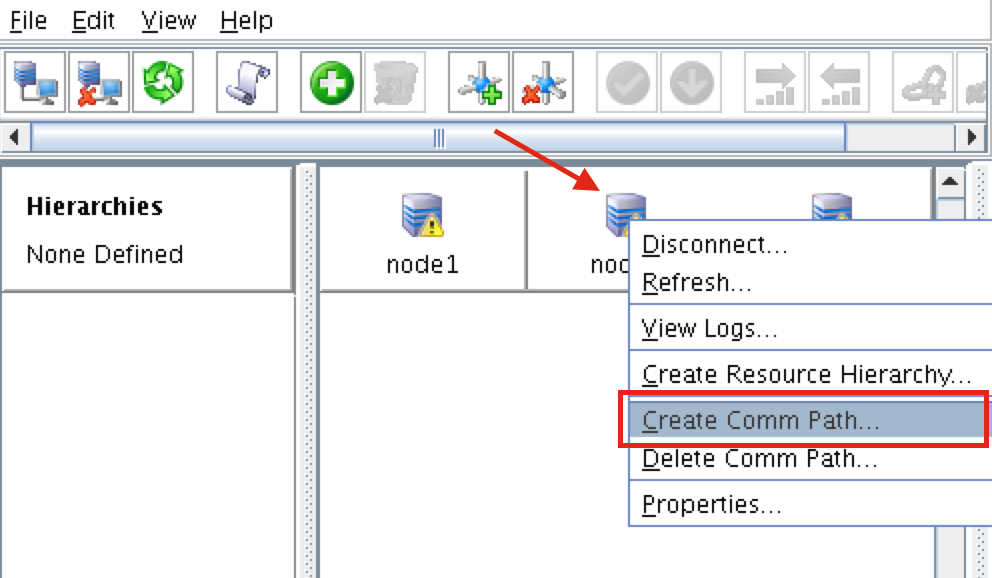

A comm path still needs to be created between node2 & witness.   Right click on “node2” and select Create Comm Path.  Follow the wizard and select “witness” as the remote server:

comm path3

At this point the following comm paths have been created:

  • node1 <—> node2
  • node1 <—> witness
  • node2 <—> witness

The icons in front of the servers have changed from a green “checkmark” to a yellow “hazard sign”.  This is because we only have a single communication path between nodes.

If the VMs had multiple NICs (information on creating Azure VMs with multiple NICs can be found here, but won’t be covered in this article), you would create redundant comm paths between each server.

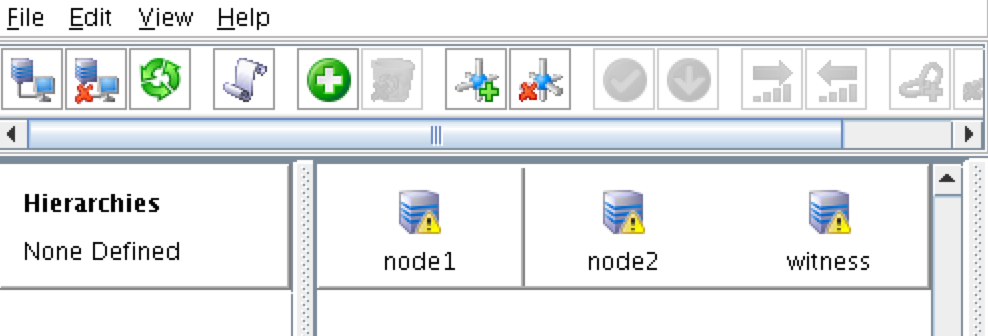

comm path4

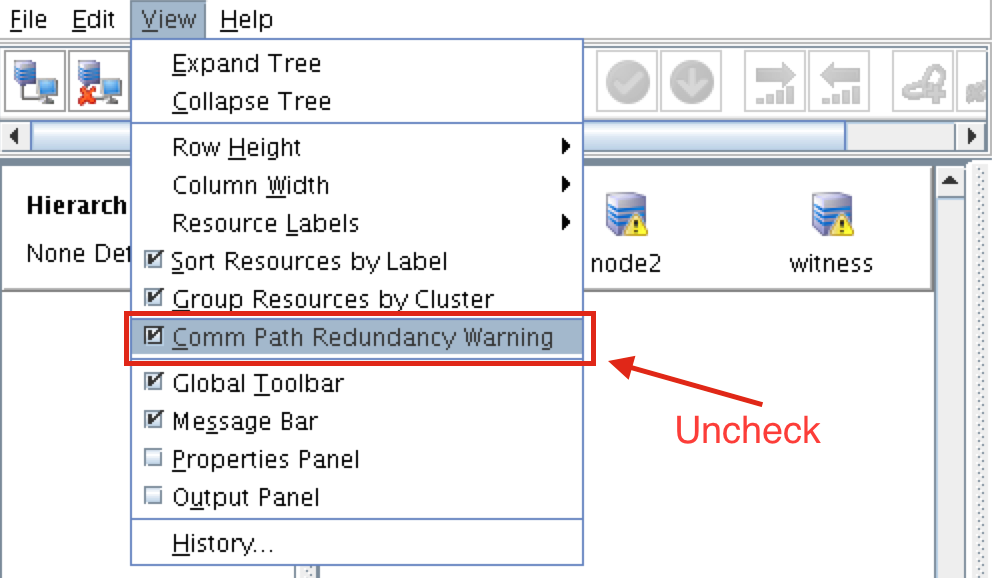

To remove the warning icons, go to the View menu and de-select “Comm Path Redundancy Warning”:

comm path5

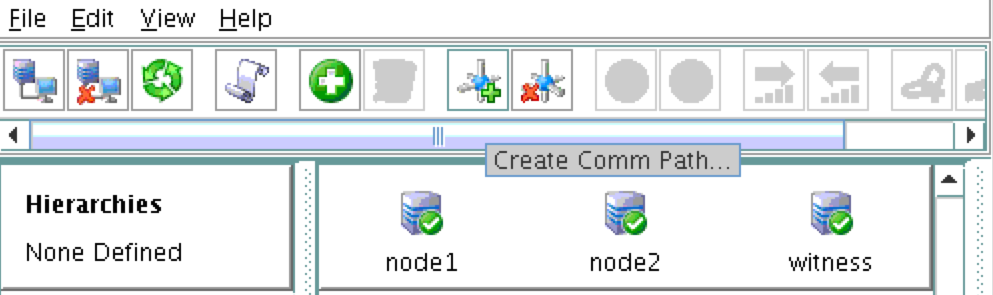

Result:

comm path6

Verify Communication Paths

Use the “lcdstatus” command to view the state of cluster resources.  Run the following commands to verify that you have correctly created comm paths on each node to the other two servers involved:

# /opt/LifeKeeper/bin/lcdstatus -q -d node1

MACHINE  NETWORK ADDRESSES/DEVICE   STATE     PRIO

node2    TCP     10.0.0.4/10.0.1.4  ALIVE        1

witness  TCP     10.0.0.4/10.0.2.4  ALIVE        1

#/opt/LifeKeeper/bin/lcdstatus -q -d node2

MACHINE  NETWORK ADDRESSES/DEVICE   STATE     PRIO

node1    TCP     10.0.1.4/10.0.0.4  ALIVE        1

witness  TCP     10.0.1.4/10.0.2.4  ALIVE        1

#/opt/LifeKeeper/bin/lcdstatus -q -d witness

MACHINE  NETWORK ADDRESSES/DEVICE   STATE     PRIO

node1    TCP     10.0.2.4/10.0.0.4  ALIVE        1

node2    TCP     10.0.2.4/10.0.1.4  ALIVE        1

Create a Data Replication cluster resource (i.e. Mirror)

Next, create a Data Replication resource to replicate the /var/lib/mysql partition from node1 (source) to node2 (target).  Click the “green plus” icon to create a new resource:

data replication1

Follow the wizard with these selections:

Please Select Recovery Kit:  Data Replication
Switchback Type: intelligent
Server: node1
Hierarchy Type: Replicate Exiting Filesystem
Existing Mount Point: /var/lib/mysql
Data Replication Resource Tag: datarep-mysql
File System Resource Tab: /var/lib/mysql
Bitmap File: (default value)
Enable Asynchronous Replication:  No

After the resource has been created, the “Extend” (i.e. define backup server) wizard will appear.  Use the following selections:

Target Server: node2
Switchback Type: Intelligent
Template Priority: 1
Target Priority: 10
Target Disk: /dev/xvdb1
Data Replication Resource Tag: datarep-mysql
Bitmap File: (default value)
Replication Path: 10.0.0.4/10.0.1.4
Mount Point: /var/lib/mysql
Root Tag: /var/lib/mysql

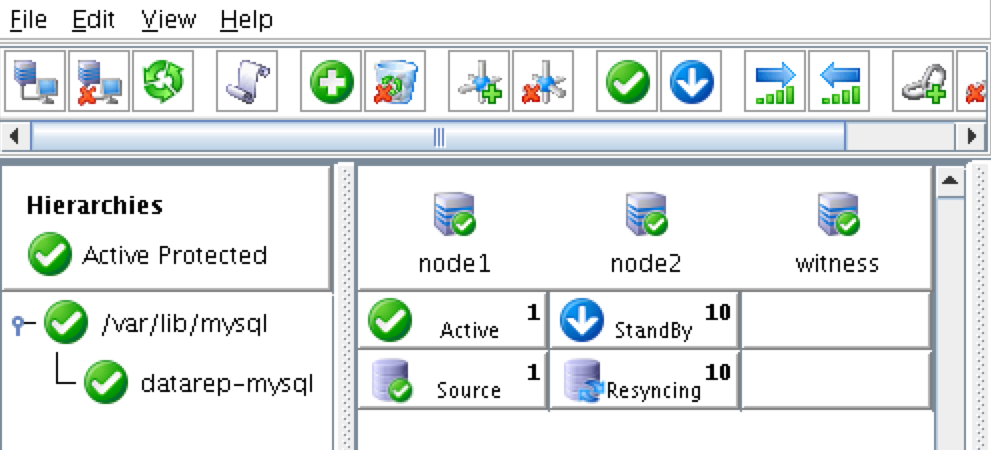

The cluster will look like this:

data replication2

Create Virtual IP

Next, create a Virtual IP cluster resource.  Click the “green plus” icon to create a new resource:

virtual ip1

Follow the wizard with to create the IP resource with these selections:

Select Recovery Kit: IP
Switchback Type: Intelligent
IP Resource: 10.1.0.10
Netmask: 255.255.255.0
Network Interface: eth0
IP Resource Tag: ip-10.1.0.10

Extend the IP resource with these selections:

Switchback Type: Intelligent
Template Priority: 1
Target Priority: 10
IP Resource: 10.1.0.10
Netmask: 255.255.255.0
Network Interface: eth0
IP Resource Tag: ip-10.1.0.10

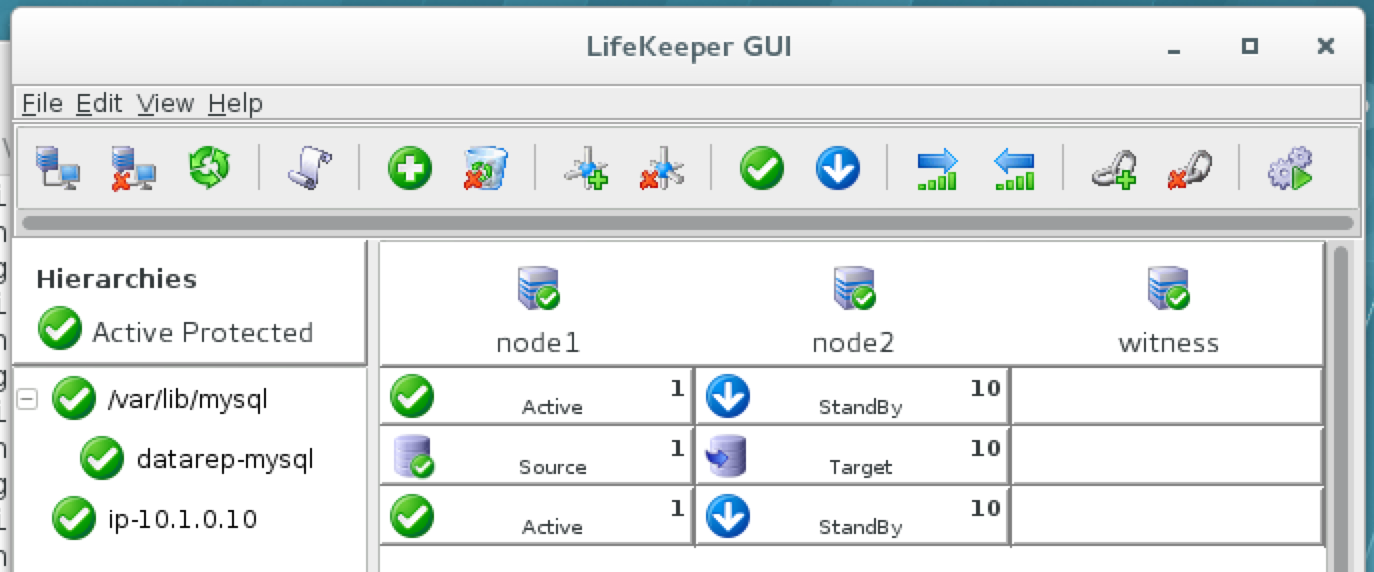

The cluster will now look like this, with both Mirror and IP resources created:

cluster-after-mirror-and-vip

Configure a Ping List for the IP resource

By default, SPS-Linux monitors the health of IP resources by performing a broadcast ping.  In many virtual and cloud environments, broadcast pings don’t work.  In a previous step, we set “NOBCASTPING=1” in /etc/default/LifeKeeper to turn off broadcast ping checks. Instead, we will define a ping list.  This is a list of IP addresses to be pinged during IP health checks for this IP resource.   In this guide, we will add the witness server (10.0.2.4) to our ping list.

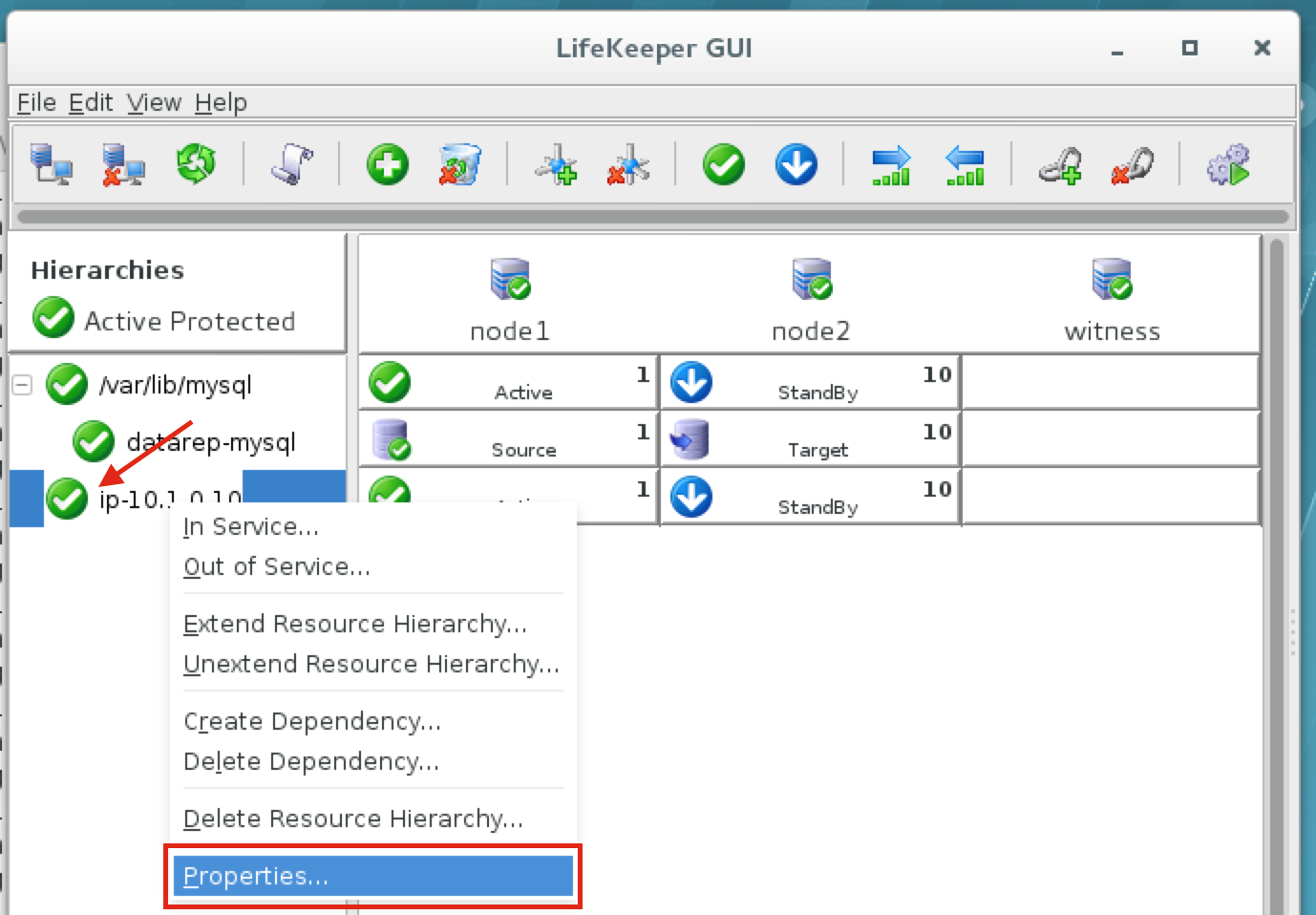

Right click on the IP resource (ip-10.1.0.10) and select Properties:

aws-ping-list1

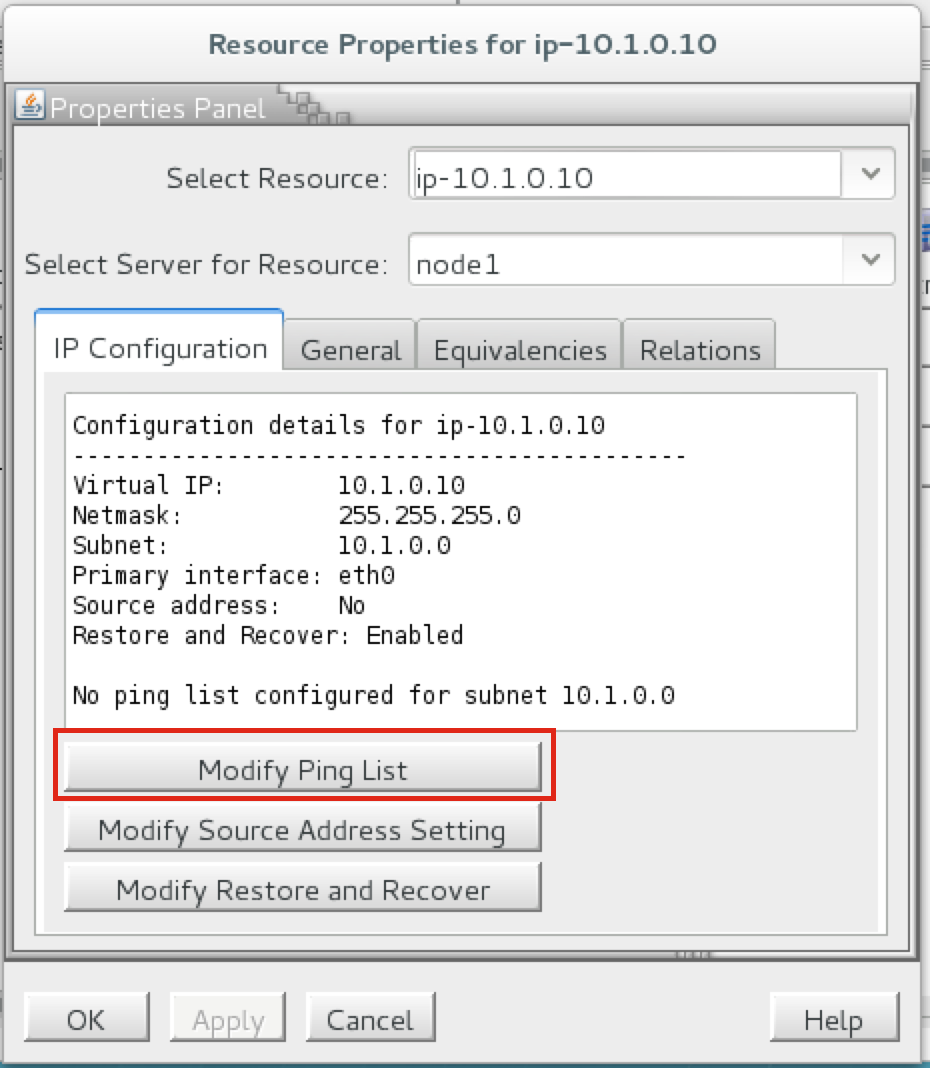

You will see that initially, no ping list is configured for our 10.1.0.0 subnet.   Click “Modify Ping List”:

aws-ping-list2

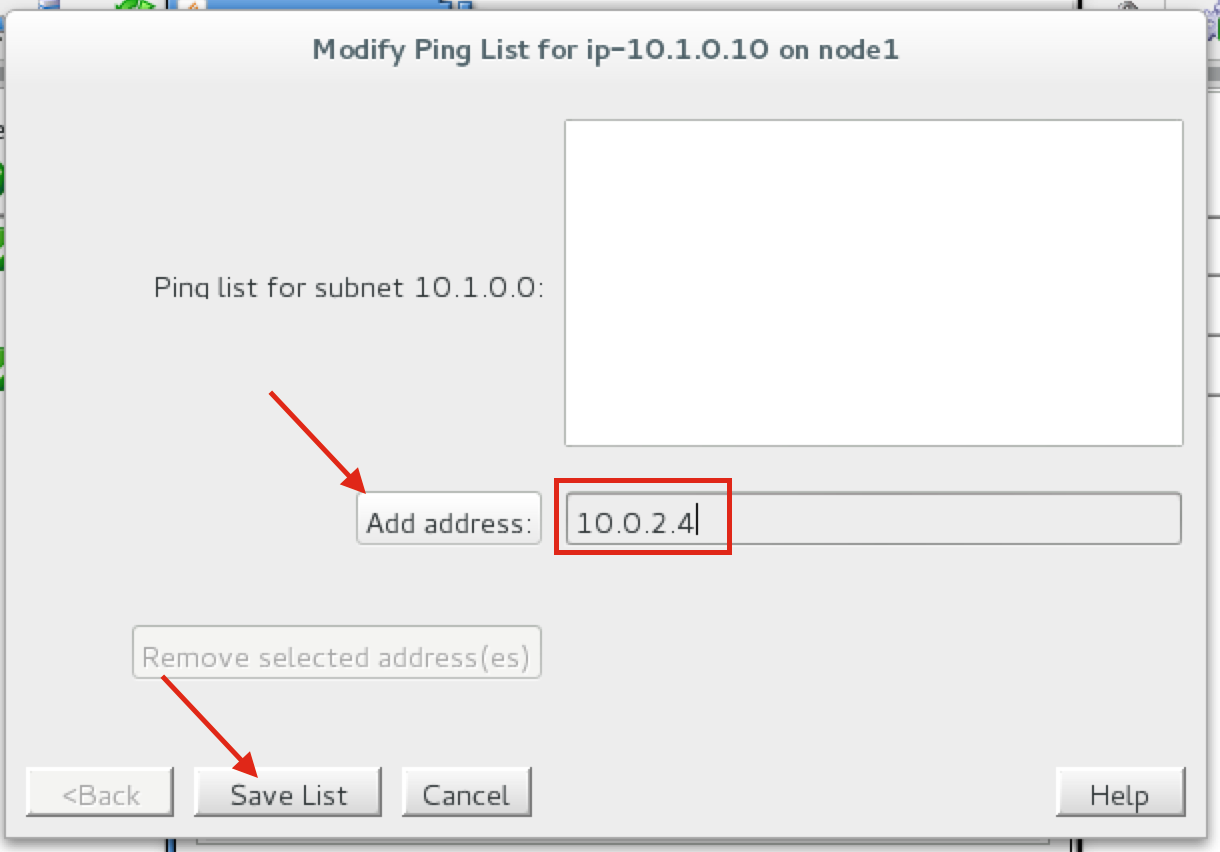

Enter “10.0.2.4” (the IP address of our witness server), click “Add address” and finally click “Save List”:

aws-ping-list3

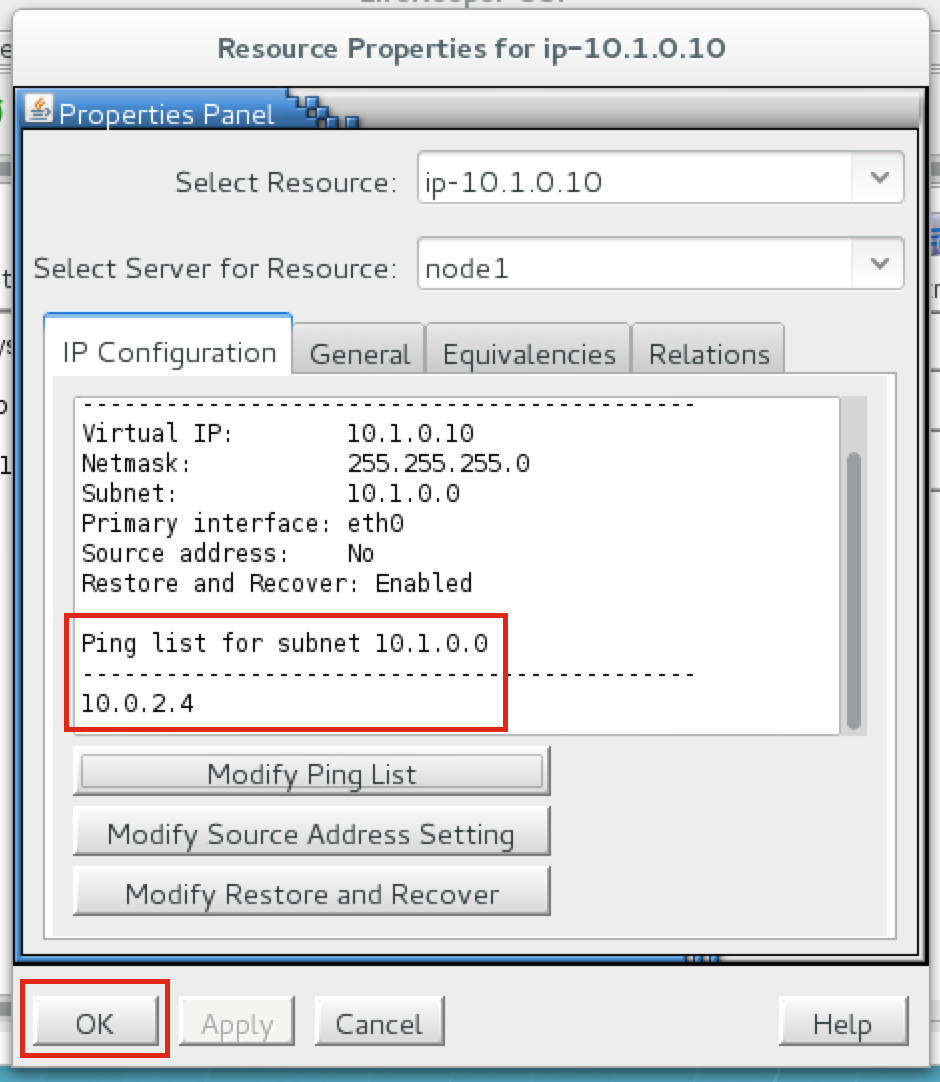

You will be returned to the IP properties panel, and can verify that 10.0.2.4 has been added to the ping list.  Click OK to close the window:

aws-ping-list4

Create the MySQL resource hierarchy

Next, create a MySQL cluster resource.  The MySQL resource is responsible for stopping/starting/monitoring of your MySQL database.

Before creating MySQL resource, make sure the database is running.  Run “ps -ef | grep sql” to check.

If it’s running, great – nothing to do.  If not, start the database back up:

# mysqld_safe --user=root --socket=/var/lib/mysql/mysql.sock --port=3306 --datadir=/var/lib/mysql --log &

To create, click the “green plus” icon to create a new resource:

Follow the wizard with to create the IP resource with these selections:

Select Recovery Kit: MySQL Database
Switchback Type: Intelligent
Server: node1
Location of my.cnf: /var/lib/mysql
Location of MySQL executables: /usr/bin
Database Tag: mysql

Extend the IP resource with the following selections:

Target Server: node2
Switchback Type: intelligent
Template Priority: 1
Target Priority: 10

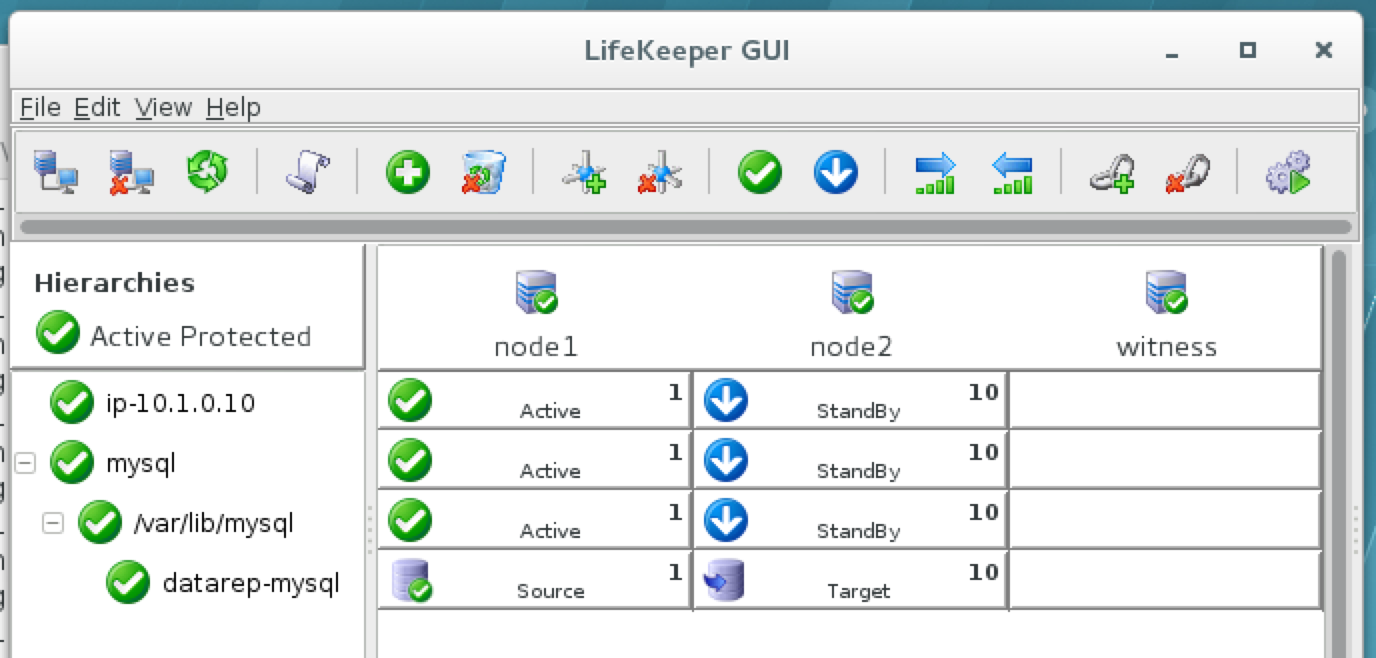

As a result, your cluster will look as follows.  Notice that the Data Replication resource was automatically moved underneath the database (dependency automatically created) to ensure it’s always brought online before the database:

aws-after-mysql-resource1

Create an EC2 resource to manage the route tables upon failover

SPS-Linux provides specific features that allow resources to failover between nodes in different availability zones and regions. Here, the EC2 Recovery Kit (i.e. cluster agent) is used to manipulate Route Tables so that connections to the Virtual IP are routed to the active cluster node.

To create, click the “green plus” icon to create a new resource:

Follow the wizard with to create the EC2 resource with these selections:

Select Recovery Kit: Amazon EC2
Switchback Type: Intelligent
Server: node1
EC2 Home: /opt/aws
EC2 URL: ec2.us-west-2.amazonaws.com
AWS Access Key: (enter Access Key obtained earlier)
AWS Secret Key: (enter Secret Key obtained earlier)
EC2 Resource Type: RouteTable (Backend cluster)
IP Resource: ip-10.1.0.10
EC2 Resource Tag: ec2-10.1.0.10

Extend the IP resource with the following selections:

Target Server: node2
Switchback Type: intelligent
Template Priority: 1
Target Priority: 10
EC2 Resource Tag: ec2-10.1.0.10

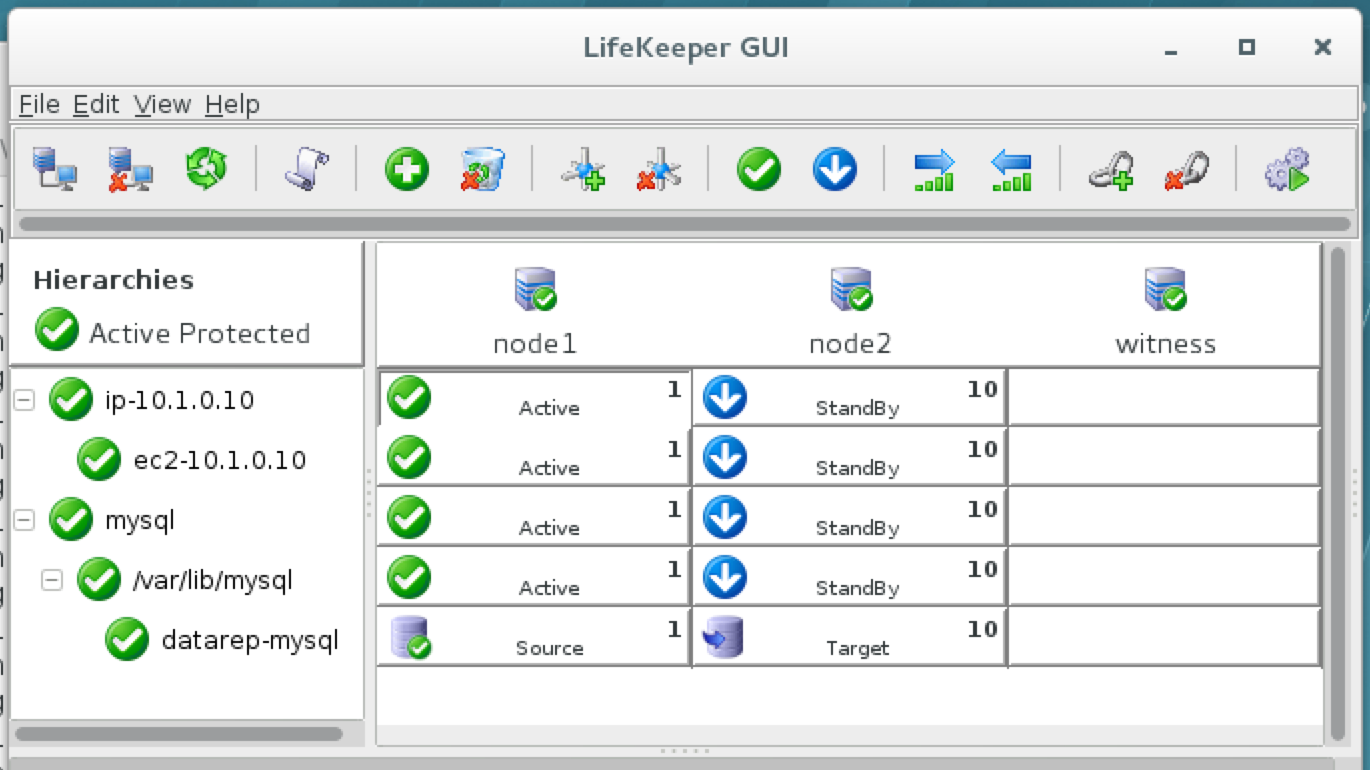

The cluster will look like this.  Notice how the EC2 resource is underneath the IP resource:

aws-after-ec2-resource1

Create a Dependency between the IP resource and the MySQL Database resource

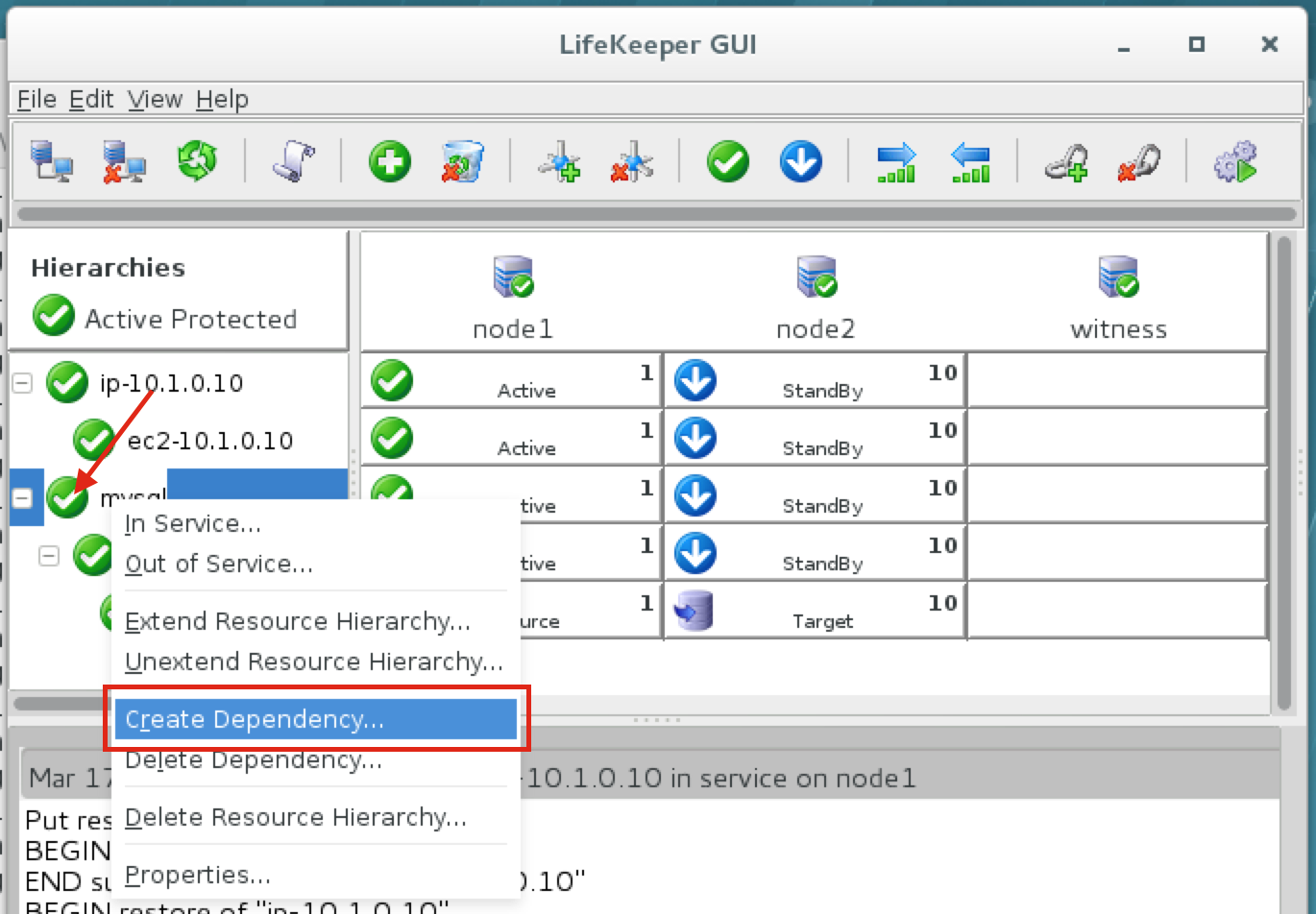

Create a dependency between the IP resource and the MySQL Database resource so that they failover together as a group.  Right click on the “mysql” resource and select “Create Dependency”:

create-dependency1

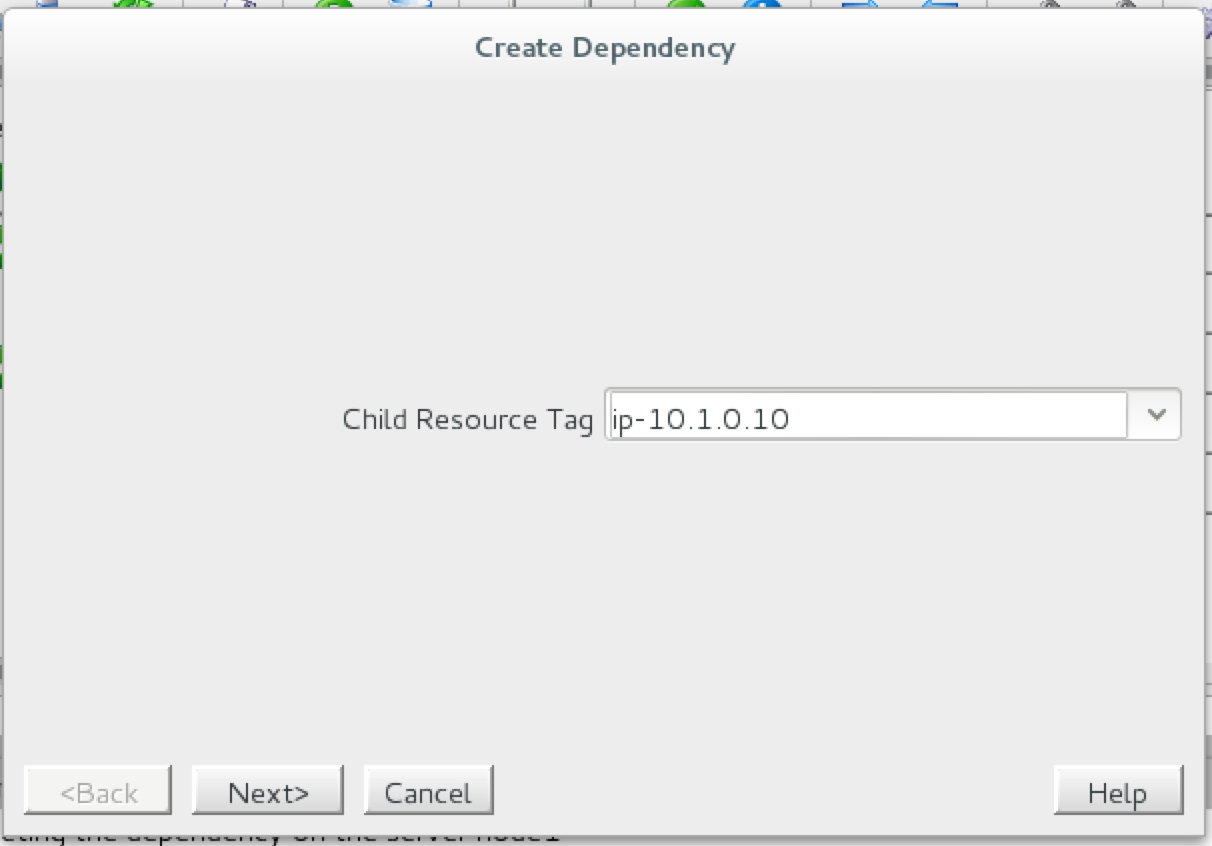

On the following screen, select the “ip-10.1.0.10” resource as the dependency.  Click Next and continue through the wizard:

create-dependency2

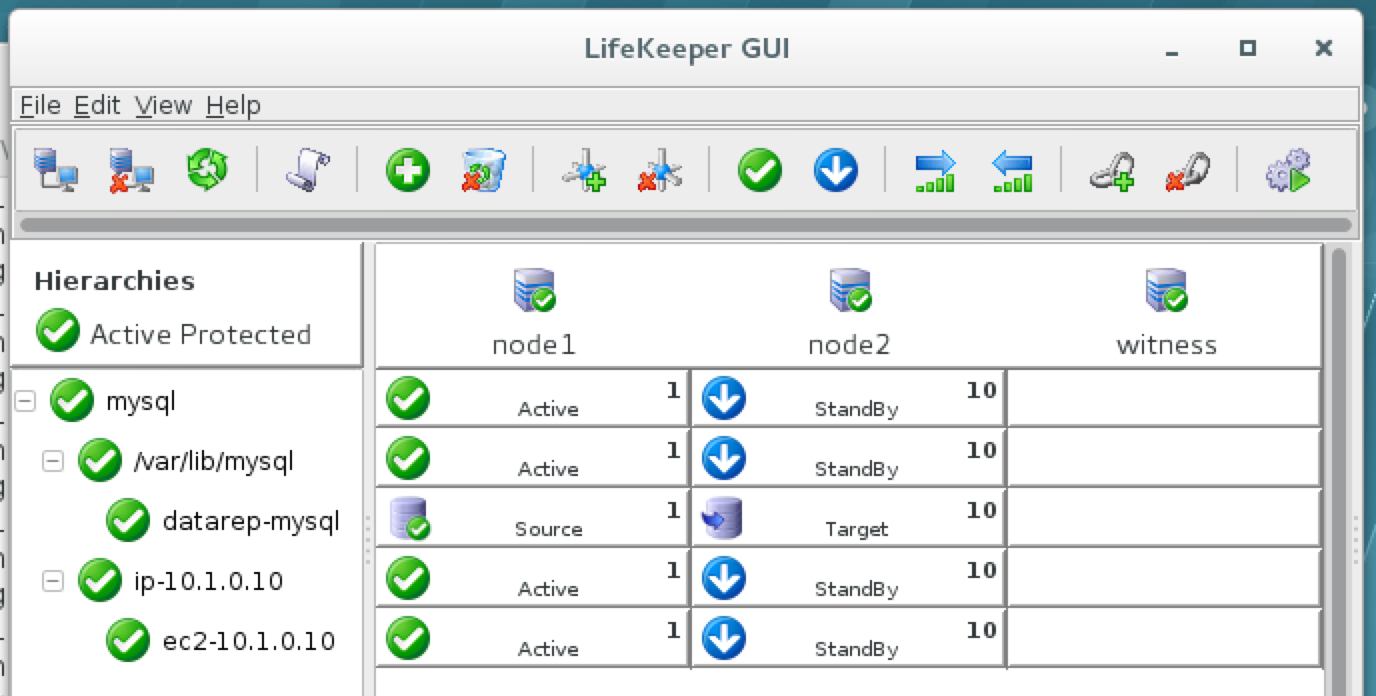

At this point the SPS-Linux cluster configuration is complete.  The resource hierarchy will look as follows:

create-dependency3

Test Cluster Connectivity

At this point, all of our Amazon EC2 and Cluster configurations are complete!

Cluster resources are currently active on node1:

create-dependency3

Test connectivity to the cluster from the witness server (or another linux instance if you have one)  SSH into the witness server, “sudo su -” to gain root access.   Install the mysql client if needed:

[root@witness ~]# yum -y install mysql

Test MySQL connectivity to the cluster:

[root@witness ~]# mysql --host=10.1.0.10 mysql -u root -p

Execute the following MySQL query to display the hostname of the active cluster node:

MariaDB [mysql]> select @@hostname;
+------------+
| @@hostname |
+------------+
| node1      |
+------------+
1 row in set (0.00 sec)
MariaDB [mysql]>

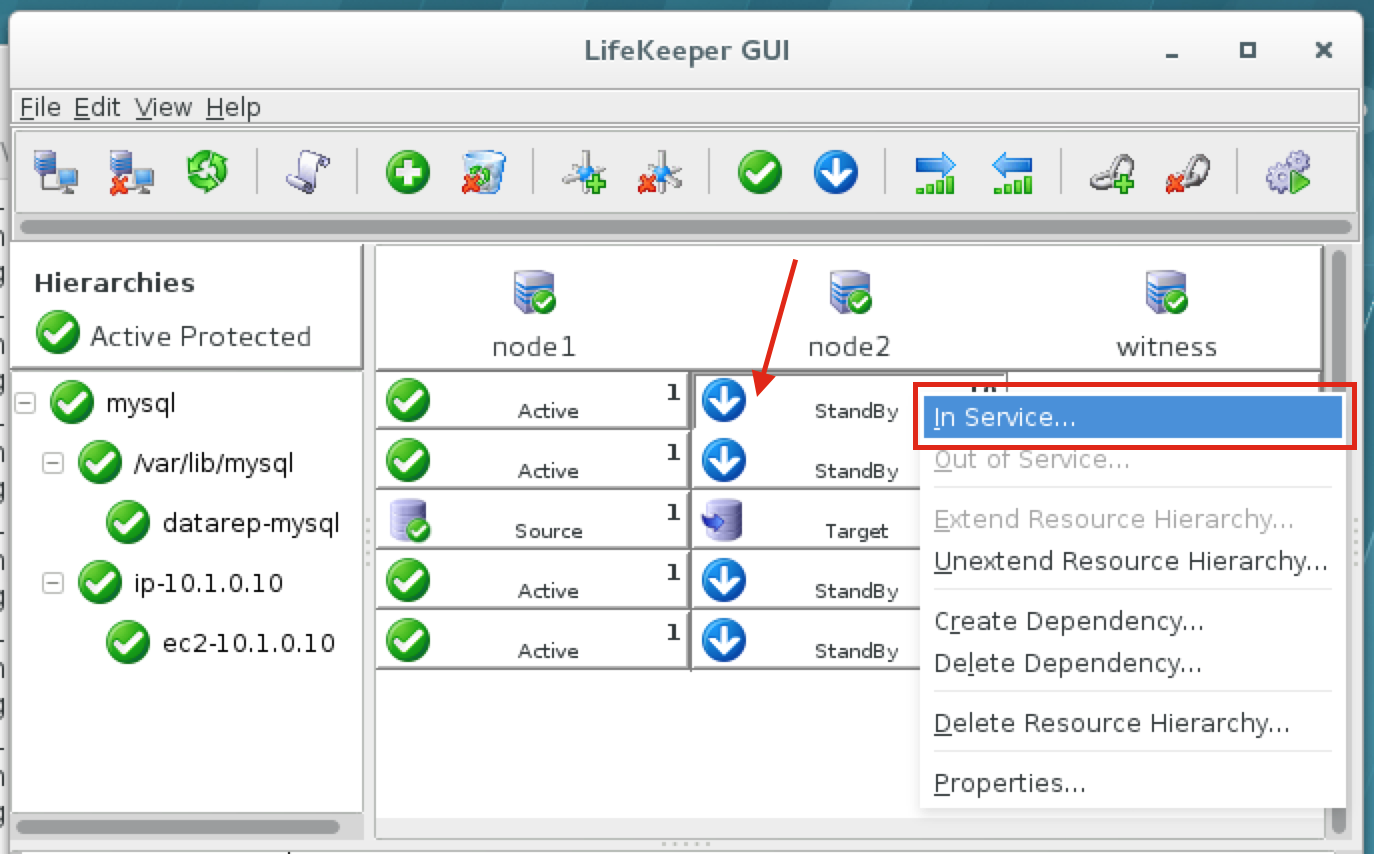

Using LifeKeeper GUI, failover from Node1 -> Node2″.  Right click on the mysql resource underneath node2, and select “In Service…”:

aws-failover1



After failover has completed, re-run the MySQL query.  You’ll notice that the MySQL client has detected that the session was lost (during failover) and automatically reconnects:

Execute the following MySQL query to display the hostname of the active cluster node, verifying that now “node2” is active:

MariaDB [mysql]> select @@hostname;
ERROR 2006 (HY000): MySQL server has gone away
No connection. Trying to reconnect...
Connection id:    12
Current database: mysql
+------------+
| @@hostname |
+------------+
| node2      |
+------------+
1 row in set (0.53 sec)
MariaDB [mysql]>



 Leave a Reply

You may use these HTML tags and attributes: <a href="" title=""> <abbr title=""> <acronym title=""> <b> <blockquote cite=""> <cite> <code> <del datetime=""> <em> <i> <q cite=""> <s> <strike> <strong>

(required)

(required)
